How can I get a price quote for Enerpac XLP5013ZEBU?

You can request a fast quote for Enerpac XLP5013ZEBU from Yılsa Engineering. Reference part number YLSF76PWRRLSMM6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac XLP5013ZEBU in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac XLP5013ZEBU genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac XLP5013ZEBU?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

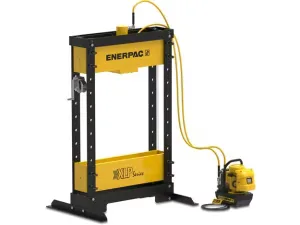

Enerpac XLP5013ZEBU 50 Ton Workshop Press

Enerpac XLP5013ZEBU; 50 ton (498 kN) workshop hydraulic press with RR5013 double-acting cylinder, 334 mm stroke and ZE4408SB electric pump, 700 bar operating pressure.

EnerpacMFR # XLP5013ZEBUSKU # YLSF76PWRRLSMM6

Dimension N545 mm (21.46 in)

Dimension G1390 mm (54.72 in)

Dimension E990 mm (38.98 in)

Dimension F1190 mm (46.85 in)

Dimension D32 mm (1.26 in)

Cylinder Stroke334 mm (13.13 in)

Have questions?Chat on WhatsApp

About This Product

The XLP5013ZEBU is an XLP-series workshop press with 50 ton (498 kN) capacity. It comes with an RR5013 double-acting long-stroke cylinder (334 mm stroke) and a ZE4408SB electric pump; maximum operating pressure is 700 bar. The pump is rated at 1.5 hp. The press has adjustable lower and upper bolsters, a horizontally adjustable cylinder and an integrated winch mechanism. Maximum bed width is 990 mm (38.98 in) and maximum vertical daylight is 960 mm (37.8 in). It is supplied as an unassembled kit including frame, winch, cylinder, pump, gauge, couplers and hose. Set contents: RR5013, ZE4408SB, G50FP, HC7210. A cut-away in the lower frame allows pallet truck access for easy transportation. It is used in workshop and maintenance environments for pressing, straightening and bearing work.

Features and Benefits

50 ton (498 kN) capacity, 700 bar operating pressure
RR5013 double-acting long-stroke cylinder, 334 mm stroke
Powerful high-speed 1.5 hp electric pump (ZE4408SB)
Adjustable lower and upper bolsters, horizontally adjustable cylinder
Easy height adjustment with integrated winch
Pallet truck cut-away in lower frame; supplied as an unassembled kit

Enerpac XLP5013ZEBU

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N545 mm (21.46 in)

Dimension G1390 mm (54.72 in)

Dimension E990 mm (38.98 in)

Dimension F1190 mm (46.85 in)

Dimension D32 mm (1.26 in)

Cylinder Stroke334 mm (13.13 in)

Rapid Advance Speed (per Stroke)- in

Max. Operating Pressure10,000 psi

Maximum Operating Pressure700 bar (10,000 psi)

Capacity498 kN (50 ton)

Dimension B240 mm (9.45 in)

Dimension K210-960 mm (8.27-37.80 in)

Dimension J2020 mm (79.53 in)

Dimension H1955 mm (76.97 in)

Max. Bed Width38.98 in

Pressing Speed- mm/strok (2,3 mm/s · 0.09 sec/in)

Product TypeWorkshop Press

SeriesXLP

Rapid Advance Speed- mm/strok (24,9 mm/s · 0.98 sec/in)

Max. Vertical Daylight960 mm (37.8 in)

Cylinder TypeDouble-Acting

Valve Power SourceElectric

Press Capacity498 kN (50 ton)

Power Source TypeElectric

Dimension P150 mm (5.91 in)

Dimension A310 mm (12.2 in)

Product LineIndustrial Tools

Weight694 kg (1530 lbs)

Maximum Bed Width990 mm

Set IncludesRR5013,ZE4408SB,G50FP,HC7210

Documents & CAD

For this product 2

Instruction ManualWorkshop Presses, XLP-Series (50 and 75 ton)PDF·2.2 MB

Instruction ManualWorkshop Presses, XLP-Series (50 and 75 ton)PDF·8.4 MB 4 languages· in one file

Series documents 1· shared by this product series

BrochureXLP-VLP-Series Bench Workshop Presses; EnglishPDF·337 KB
