Siemens 6XV1878-2D
IE FC TP torsion kablo 4x2; (PROFINET tip C), Cat6A; TP installation kablo, 8-core, için use in highly flexible applications (torsion), sold by the meter, max. teslimat ünite 1000 m, minimum order quantity 20 m.
product brand nameSIMATIC NET
wire lengthsold by the meter
at 10 MHz / maximum0,089 dB/m
at 100 MHz / maximum0,287 dB/m
at 250 MHz / maximum0,466 dB/m
at 300 MHz / maximum0,514 dB/m
Ürün Hakkında
IE FC TP torsion kablo 4x2; (PROFINET tip C), Cat6A; TP installation kablo, 8-core, için use in highly flexible applications (torsion), sold by the meter, max. teslimat ünite 1000 m, minimum order quantity 20 m.
Siemens 6XV1878-2D
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useContinuous motion control when using robots
cable designationSF/UTP, 2YH(ST)D11Y 4X2X0.6/1.04-100 LI VZN GN
wire lengthsold by the meter
electrical data
at 10 MHz / maximum0,089 dB/m
at 100 MHz / maximum0,287 dB/m
at 250 MHz / maximum0,466 dB/m
at 300 MHz / maximum0,514 dB/m
at 500 MHz / maximum0,679 dB/m
at 1 MHz ... 100 MHz100 Ω
at 1 MHz ... 100 MHz0,453 dB/m
at 1 MHz … 250 MHz0,393 dB/m
at 1 MHz ... 300 MHz0,381 dB/m
at 1 MHz ... 500 MHz0,348 dB/m
coupling loss / at 30 MHz … 100 MHz / minimum80 dB
transfer impedance per length / at 10 MHz80 mΩ/m
loop resistance per length / maximum180 mΩ/m
insulation resistance coefficient5000 GΩ·m
RMS value80 V
maximum80 V
NVP value in percent69 %
mechanical data
number of electrical cores8

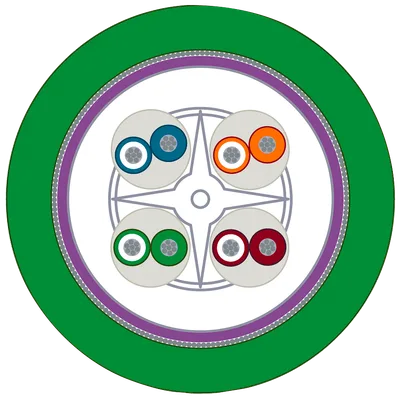

design of the shieldSF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
type of electrical connection / FastConnectVar
of AWG24 insulated conductor0,51 mm
of inner conductor0,58 mm
of the wire insulation1,04 mm
of the inner sheath of the cable6,4 mm
of cable sheath8 mm
symmetrical tolerance of the outer diameter / of cable sheath0,2 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cableFRNC
of cable sheathPUR
of the insulation of data wireswhite-blue/blue, white-orange/orange, white-green/green, white-brown/brown
of cable sheathgreen
with single bend / minimum permissible32 mm
with multiple bends / minimum permissible64 mm
number of torsion cycles / with torsion by ± 180° on 1 m cable length5000000
tensile load / maximum100 N
weight per length77 kg/km
ambient conditions
during operation-30... +80 °C
during storage-40... +80 °C
during transport-40... +80 °C
during installation-30... +80 °C
noteIn fixed installation -40 °C to 80 °C
fire behaviorflame resistant according to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6Eca
to mineral oiloil resistant according to IEC 60811-404 (7x24h/90°C)
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeVar; halogen-free according to IEC 61754-1
PoE capabilityVar
PoE+ capabilityVar
PoE++ capabilityVar
silicon-freeVar
with 100BaseTX100 m
with 1000BaseT100 m
for 10GBase T90 m
at AC / core-to-core2000 V
at AC / core shield2000 V
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(ETL)us CMX, AWM-Style 21329
UL/ETL style / 600 V RatingVar
EAC approvalVar
CE markingVar
RoHS conformityVar
ANSI/TIA-EIA 568-B.2 Cat.5eVar
IEC 61784-5-2-CP 2/2 (Ethernet/IP)Var
standard for structured cablingCat6A
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
