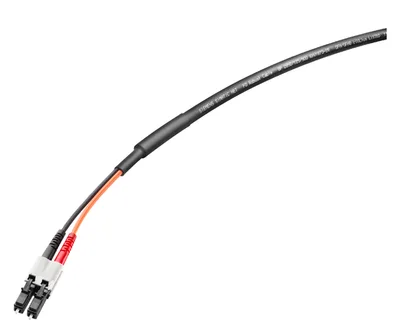

Siemens 6XV1873-2R
MM FO robust kablo GP (50/125/OM2); hat için indoors ve outdoors; rodent koruma; splittable, olmadan konnektör; sold by the meter; minimum order quantity 20 m; max. uzunluk 2000 m.
product brand nameSIMATIC NET
version of the assembled FO cablesold by the meter
cable designationAT-V(ZN)H(ZN)BH 2G50/125 OM2+
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum1 dB/km
at 850 nm600 GHz·m
Ürün Hakkında
MM FO robust kablo GP (50/125/OM2); hat için indoors ve outdoors; rodent koruma; splittable, olmadan konnektör; sold by the meter; minimum order quantity 20 m; max. uzunluk 2000 m.
Siemens 6XV1873-2R
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useWaterproof cable (lengthwise ve sideways) with non-metallic protection against rodents for use indoors ve outdoors as well as for direct routing underground
version of the assembled FO cablesold by the meter
cable designationAT-V(ZN)H(ZN)BH 2G50/125 OM2+
optical data
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum1 dB/km
at 850 nm600 GHz·m
at 1300 nm1200 GHz·m
mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2
version of the FO conductor fibermultimode gradient fiber 50/125/245 µm, OM2 according to IEC 60793-2
design of the FOC coreSolid core, diameter 900 µm
design of the fiber-optic cablesegmentable
of the optical fibers50 µm
of the optical fiber sheath125 µm
of the FOC core sheath2,2 mm
outer diameter / of the cable7,5 mm
of the fiber-optic cable coreQuartz glass
of the optical fiber sheathQuartz glass
of the FOC core sheathPE flame retardant
of the fiber-optic cable sheathPE flame retardant
of the strain reliefAramid fibers ve glass roving
of the FOC core sheathorange/black, with direction arrow
of cable sheathBlack
with single bend / minimum permissible25 mm
with multiple bends / minimum permissible40 mm
number of torsion cycles / with torsion by ± 360° on 1 m cable length10
during installation / short-term2000 N
during operation / maximum1000 N
short-term shear force per length600 N/cm
continuous shear force per length200 N/cm
weight per length67 kg/km
ambient conditions
during operation-40... +70 °C
during storage-45... +70 °C
during transport-40... +70 °C
during installation-20... +60 °C
ambient condition / for operationIEC 60794-1-2 F1
fire behaviorflame resistant according to IEC 60332-1-2, IEC 60332-3-24, IEC 61034-2, IEC 60754-1, IEC 60754-2, IEC 60331-25 (90 min.)
class of burning behaviour / according to EN 13501-6Dca - s1a,d0,a1
to mineral oilconditional resistance
to greaseconditional resistance
to waterResistant acc. to IEC 60794-1-2 F5A (installation up to 10 m water depth)
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeVar
silicon-freeVar
product component / rodent protectionVar
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum5000 m
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum750 m
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum2000 m
for glass FOC / with 10GBaseSR / for Industrial Ethernet / maximum60 m
for glass FOC / with PROFIBUS / maximum3000 m
standards, specifications, approvals
UL onayıVar; c(UL)us OFN FT4, E330304-20090821-Sec. 2
RoHS conformityVar
Aksesuarlar 10
Siemens 6XV1873-2R motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-1GA00 | Aksesuar | |
| 6GK1901-1GB01 | Aksesuar | |
| 6GK1901-0DB40-6AA0 | Aksesuar | |
| 6GK1901-0DB40-6AA8 | Aksesuar | |
| 6GK1901-0DB50-6AA0 | Aksesuar | |
| 6GK1901-0DB50-6AA8 | Aksesuar | |
| 6GK1901-0DM40-2AA5 | Aksesuar | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6GK1901-0BE10-0AA0 | Aksesuar · Cabling system | |
| 6GK1901-1BB50-0AA0 | Aksesuar |
