Detayları Gör
Siemens
6GK1411-1AC00
MFR #6GK1411-1AC00
SKU #YLSUPUJLQ5SX
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

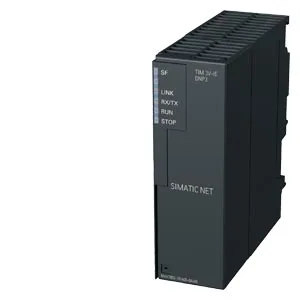

Siemens 6NH7803-3BA00-0AA0
- - yedek parça - - TIM 3V-IE DNP3 communications modül için SIMATIC S7-300 ile an RS232 arayüz için DNP3 communication via a classic WAN ve an RJ45 arayüz için DNP3 communication via a IP-based network (WAN veya LAN).
product brand nameSIMATIC NET
for Industrial Ethernet10... 100 Mbit/s
according to RS 2329600... 38400 bit/s
for power supply1
of Industrial Ethernet interfaceRJ45 port
for power supply2-pole plugable terminal block
Ürün Hakkında
- - yedek parça - - TIM 3V-IE DNP3 communications modül için SIMATIC S7-300 ile an RS232 arayüz için DNP3 communication via a classic WAN ve an RJ45 arayüz için DNP3 communication via a IP-based network (WAN veya LAN).
Siemens 6NH7803-3BA00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
for Industrial Ethernet10... 100 Mbit/s
according to RS 2329600... 38400 bit/s
interfaces
number of interfaces / according to Industrial Ethernet1
for external data transmission / according to RS 2321
for power supply1
of Industrial Ethernet interfaceRJ45 port
at interface 1 / for external data transmission9 pin Sub-D-connector (RS232)
for power supply2-pole plugable terminal block
C-PLUGYok
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage20,4... 28,8 V
supply voltage / external / at DC / rated value24 V
supply voltage / external / at DC / rated value20,4... 28,8 V
from backplane bus / at DC / at 24 V / maximum0,2 A
from external supply voltage / at DC / at 24 V / maximum0,2 A
power loss [W]5,8 W
product extension / optional / backup batteryYok
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-300 single width
width40 mm
height125 mm
depth120 mm
net weight0,25 kg
product features, product functions, product components / general
noteNumber of TIMs per S7-300: 1
with RS 232 interface / maximum6 m
performance data / S7 communication
maximum3; only via LAN
with PG connections / maximum2
with OP connections / maximum1
PG/OP communicationVar
performance data / telecontrol
node stationVar
substationVar
TIM control centerVar
DNP3Var
SINAUT ST1 protocolYok
SINAUT ST7 protocolYok
Modbus RTUVar
product function / data buffering if connection is abortedVar; 64,000 data points with one master
for Ethernet / maximum8
with RS 232 interface / maximum1
number of Modbus RTU devices / maximum1
product functions / management, configuration, engineering
requiredSINAUT ST7 ES
storage location / of TIM configuration dataon the CPU veya TIM
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
Aksesuarlar 35
Siemens 6NH7803-3BA00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6NH7701-0AR | Aksesuar · Cables · serial cable | |
| 6NH7701-4BN | Aksesuar · Cables · serial cable | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical |
