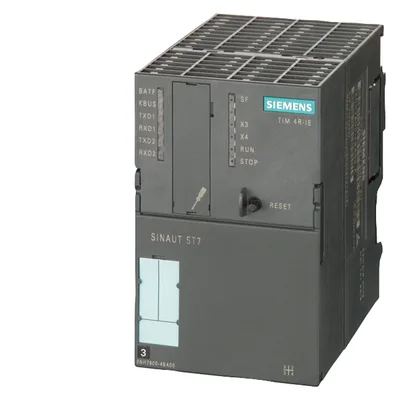

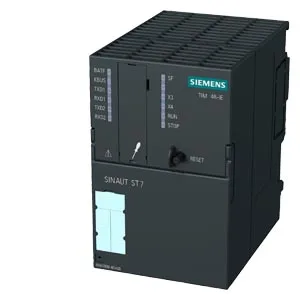

Siemens 6NH7800-4BA00
- - yedek parça - - SINAUT ST7, TIM 4R-IE communications modül için SIMATIC S7-300, S7-400, PC; ile two RS232/RS485 interfaces için SINAUT communication via standart WANs ve two RJ45 interfaces için SINAUT communication via IP-based networks (WAN veya LAN).
product brand nameSINAUT ST7
for Industrial Ethernet10... 100 Mbit/s
according to RS 23250... 38400 bit/s
for power supply1
of Industrial Ethernet interfaceRJ45 port
for power supply2-pole plugable terminal block
Ürün Hakkında
- - yedek parça - - SINAUT ST7, TIM 4R-IE communications modül için SIMATIC S7-300, S7-400, PC; ile two RS232/RS485 interfaces için SINAUT communication via standart WANs ve two RJ45 interfaces için SINAUT communication via IP-based networks (WAN veya LAN).
Siemens 6NH7800-4BA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSINAUT ST7
transfer rate
for Industrial Ethernet10... 100 Mbit/s
according to RS 23250... 38400 bit/s
interfaces
number of interfaces / according to Industrial Ethernet2
for external data transmission / according to RS 2322
for power supply1
of Industrial Ethernet interfaceRJ45 port
at interface 1 / for external data transmission9 pin Sub-D-connector, RS232 switchable to RS485
at interface 2 / for external data transmission9-pole D-sub connector, RS232 can be switched to RS485
for power supply2-pole plugable terminal block
C-PLUGVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage20,4... 28,8 V
supply voltage / external / at DC / rated value24 V
supply voltage / external / at DC / rated value20,4... 28,8 V
from backplane bus / at DC / at 24 V / maximum0,2 A
from external supply voltage / at DC / at 24 V / maximum0,17 A
power loss [W]4,6 W
product extension / optional / backup batteryVar
type of batteryLithium AA / 3,6 V / 2,3 Ah
typical100 µA
maximum160 µA
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-300 double width
width80 mm
height125 mm
depth120 mm
net weight0,4 kg
product features, product functions, product components / general
noteNumber of TIM 4R‑IE per S7‑300/S7-400: multiple, number depends on the connection resources of the CPU
with RS 232 interface / maximum6 m
with RS 485 interface / maximum30 m
performance data / S7 communication
maximum64
with PG connections / maximum2
with OP connections / maximum62
SINAUT ST7 via S7 communicationVar
PG/OP communicationVar
performance data / multi-protocol mode
number of active connections / with multi-protocol mode128
performance data / telecontrol
node stationVar
substationVar
TIM control centerVar
DNP3Yok
SINAUT ST1 protocolVar
SINAUT ST7 protocolVar
product function / data buffering if connection is abortedVar; 56,000 data messages
of S7 CPU work memory / for TD7onCPU mode data blocks on CPU / required20 Kibyte
of S7 CPU work memory / for TD7onTIM mode data blocks on TIM / required0 Kibyte
noteTD7onCPU: least 20 KB, actual requirement determined by data volume ve functional scope TD7onTIM: 0 bytes in most favorable case
product feature / buffered message frame memoryVar
for SINAUT ST1 protocol with polling / 11 bitVar
for SINAUT ST1 protocol with spontaneous / 10-bit or 11-bitVar
for SINAUT ST7 protocol with multi-master polling / 10-bitVar
for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bitVar
with dedicated line/radio link / with SINAUT ST1 protocolPolling, polling with time slot procedure
with dedicated line/radio link / with SINAUT ST7 protocolPolling, polling with time slot procedure, multi-master polling with time slot procedure
with dial-up network / with SINAUT ST1 protocolspontaneous
with dial-up network / with SINAUT ST7 protocolspontaneous
for SINAUT ST1 protocol4
for SINAUT ST7 protocol4
product functions / management, configuration, engineering
requiredSINAUT ST7 ES
for CPU configuring / required / SINAUT TD7 block library for CPUVar
for PG configuring / required / SINAUT ST7 configuration software for PGVar
storage location / of TIM configuration dataon internal TIM flash memory, veya on TIM in optional C‑PLUG, veya on MMC of the S7-300 CPU if TIM installed in S7-300 controller
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / security
operating mode / Virtual Private Network (VPN)Var
type of authentication / with Virtual Private Network / PSKVar
password protection for VPNVar
MSC client via GPRS modem with MSC capabilityVar
is supported / MSC protocolVar
with Virtual Private Network MSC / is supportedTCP/IP
key length / for MSC / with Virtual Private Network128 bit
as MSC client / with VPN connection1
as MSC server / with VPN connection128
product functions / time
product component / hardware real time clockVar
product feature / hardware real time clock w. battery backupVar
accuracy / of the hardware real time clock / per day / maximum4 s
from NTP-serverVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
Aksesuarlar 36
Siemens 6NH7800-4BA00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7971-0BA00 | Aksesuar · Accessories | |
| 6NH7701-0AR | Aksesuar · Cables · serial cable | |
| 6NH7701-4BN | Aksesuar · Cables · serial cable | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical |
