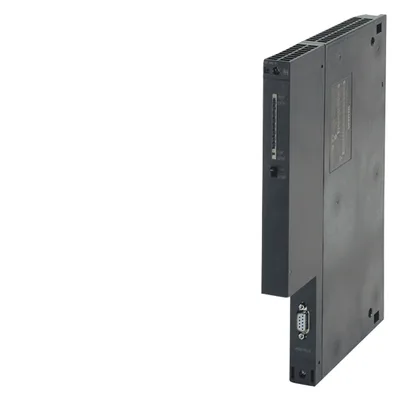

Siemens 6GK7443-5DX05-0XE1

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6GK7443-5DX05-0XE1

modül ile protective coating based on 6GK7443-5DX05-0XE0 443-5 Extended için bağlantı of SIMATIC S7-400 to PROFIBUS DP, S5-compatible, PG/OP ve S7 communication conformal coating.

SiemensMFR # 6GK7443-5DX05-0XE1SKU # CEY-937FC7803DDB
product brand nameSIMATIC NET
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
at 5 V5 %
power loss [W]3 W
during operation0... 60 °C
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

modül ile protective coating based on 6GK7443-5DX05-0XE0 443-5 Extended için bağlantı of SIMATIC S7-400 to PROFIBUS DP, S5-compatible, PG/OP ve S7 communication conformal coating.

Siemens 6GK7443-5DX05-0XE1

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMATIC NET
transfer rate
at the 1st interface / according to PROFIBUS9,6 kbit/s... 12 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet0
at the 1st interface / according to PROFIBUS1
at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS485)
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
at 5 V5 %
from backplane bus / at DC / at 5 V / typical0,6 A
power loss [W]3 W
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-400 single width
width25 mm
height290 mm
depth210 mm
net weight0,65 kg
product features, product functions, product components / general
per CPU / maximum14
noteThe number of CPs that can be operated as DP masters depends on the number of CP 443-1 Advanced processors operating in the S7-400 station as PROFINET IO controllers. Up to 10 CPs can be operated in toplam: up to 4 as PROFINET IO controllers (CP 443-1 Advanced); up to 10 as DP masters (CP 443-5 Extended)
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum32
as user data per connection / for open communication / by means of SEND/RECEIVE blocks / maximum240 bayt
performance data / PROFIBUS DP
DPV1Var
on DP master / operable125
of the address range of the inputs / as DP master / total4096 bayt
of the address range of the outputs / as DP master / total4096 bayt
of the address range of the inputs / per DP device244 bayt
of the address range of the outputs / per DP device244 bayt
performance data / S7 communication
maximum48
performance data / multi-protocol mode
without DP / maximum59
with DP / maximum54
product functions / management, configuration, engineering
requiredSTEP 7 V5.4 SP4 veya üstü / STEP 7 Professional V12 (TIA Portal) veya üstü
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / marine classification / header
Marine classification association / American Bureau of Shipping Europe Ltd. (ABS)Var
Marine classification association / French marine classification society (BV)Var
Marine classification association / Chinese Classification Society (CCS)Var
Marine classification association / Det Norske Veritas (DNV)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total350,22 kg
during manufacturing65,61 kg
during operation281,89 kg
after end of life2,72 kg
