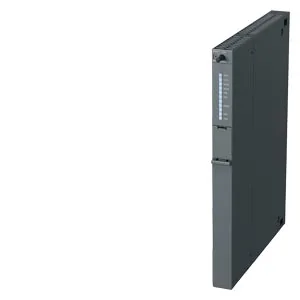

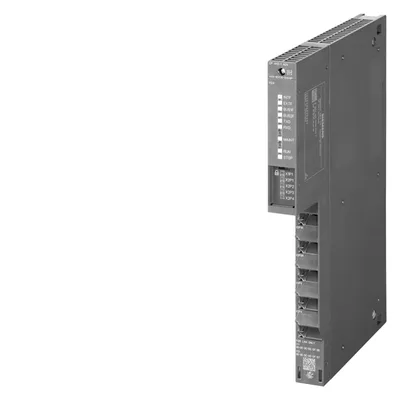

Siemens 6GK7443-1GX30-0XE0
Firmware downgrades are no longer possible starting ile V3.3.28 443-1 Advanced 1x 10/100/1000 Mbps, 4x 10/100 Mbps (IE anahtar) RJ45 ports; ISO; TCP; UDP; PROFINET IO kontrolcü; S7 communication; Open communication (send/receive) S7 routing; IP configuration via DHCP/block; IP access kontrol list; time-of-day synchronization; extended web diagnostics; Fast Startup; PROFIenergy support; IP routing; FTP; Web server; email; please note SIOS ID: 109799025
product brand nameSIMATIC NET
at the 1st interface10... 1000 Mbit/s
at the 2nd interface10... 100 Mbit/s
C-PLUGVar
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
Ürün Hakkında
Firmware downgrades are no longer possible starting ile V3.3.28 443-1 Advanced 1x 10/100/1000 Mbps, 4x 10/100 Mbps (IE anahtar) RJ45 ports; ISO; TCP; UDP; PROFINET IO kontrolcü; S7 communication; Open communication (send/receive) S7 routing; IP configuration via DHCP/block; IP access kontrol list; time-of-day synchronization; extended web diagnostics; Fast Startup; PROFIenergy support; IP routing; FTP; Web server; email; please note SIOS ID: 109799025
Siemens 6GK7443-1GX30-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface10... 1000 Mbit/s
at the 2nd interface10... 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet5
at the 1st interface / according to Industrial Ethernet1
at the 2nd interface / according to Industrial Ethernet4
at the 1st interface / according to Industrial EthernetRJ45 port
at the 2nd interface / according to Industrial EthernetRJ45 port
C-PLUGVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
at 5 V5 %
from backplane bus / at DC / at 5 V / typical1,8 A
power loss [W]9 W
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-400 single width
width25 mm
height290 mm
depth210 mm
net weight0,7 kg
product features, product functions, product components / general
per CPU / maximum14
notemaks. 4 as PN IO ctrl.
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum64
as user data per ISO connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum2 Kibyte
by means of T blocks / maximum64
as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum1452 bayt
performance data / S7 communication
maximum128; when using several CPUs
with PG connections / maximum2
performance data / multi-protocol mode
number of active connections / with multi-protocol mode128
performance data / IT functions
as client / by means of FTP / maximum20
as server / by means of FTP / maximum10
as server / by means of HTTP / maximum4
as email client / maximum1
data volume / as user data for email / maximum8 Kibyte
as flash memory file system30 Mibyte
as RAM16 Mibyte
additionally buffered as RAM via central backup battery512 Kibyte
number of possible write cycles / of the flash memory cells100000
performance data / PROFINET communication / as PN IO controller
product function / PROFINET IO controllerVar
number of PN IO devices / on PROFINET IO controller / operable / total128
number of PN IO IRT devices / on PROFINET IO controller / operable64
number of external PN IO lines / with PROFINET / per rack4
as user data for input variables / as PROFINET IO controller / maximum4 Kibyte
as user data for output variables / as PROFINET IO controller / maximum4 Kibyte
as user data for input variables per PN IO device / as PROFINET IO controller / maximum1433 bayt
as user data for output variables per PN IO device / as PROFINET IO controller / maximum1433 bayt
as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum240 bayt
as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum240 bayt
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
SNMP v3Var
DCPVar
LLDPVar
requiredSTEP 7 V5.5 SP3 veya üstü / STEP 7 Professional V12 (TIA Portal) veya üstü
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / switch
product feature / switchVar
switch-managedYok
with IRT / PROFINET IO switchVar
configuration with STEP 7Var
product functions / redundancy
ring redundancyVar
redundancy managerVar
protocol / is supported / Media Redundancy Protocol (MRP)Var
product functions / security
firewall versionstateful inspection
product function / with VPN connectionIPSec
type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168, DES-56
type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates
type of hashing algorithms / with VPN connectionMD5, SHA-1
number of possible connections / with VPN connection32
password protection for Web applicationsVar
ACL - IP-basedVar
ACL - IP-based for PLC/routingVar
switch-off of non-required servicesVar
blocking of communication via physical portsVar
log file for unauthorized accessYok
product functions / time
product function / SICLOCK supportVar
product function / pass on time synchronizationVar
NTPVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / cULus approvalVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / marine classification / header
Marine classification association / American Bureau of Shipping Europe Ltd. (ABS)Var
Marine classification association / French marine classification society (BV)Var
Marine classification association / Chinese Classification Society (CCS)Var
Marine classification association / Det Norske Veritas (DNV)Var
Marine classification association / Lloyds Register of Shipping (LRS)Var
Marine classification association / Nippon Kaiji Kyokai (NK)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total350,22 kg
during manufacturing65,61 kg
during operation281,89 kg
after end of life2,72 kg
