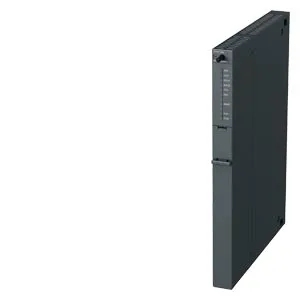

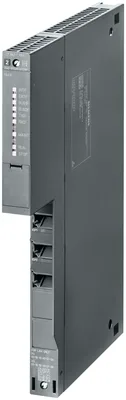

Siemens 6GK7442-1RX00-0XE0
Firmware downgrades are no longer possible starting ile V1.5.55 442-1 RNA 1x 10/100 Mbit/s RJ45 port: ISO; S7, H communication, open communication (send/receive) S7 routing. 2x 100 Mbit/s, RJ45 port: PRP; ISO; ISO-on-TCP; TCP; UDP S7, H communication, open communication (send/receive) S7 routing; time synchronization IP access kontrol list; web diagnostics; SNMPV1.
product brand nameSIMATIC NET
at the 1st interface10... 100 Mbit/s
at the 2nd interface100 Mbit/s
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
at 5 V5 %
Ürün Hakkında
Firmware downgrades are no longer possible starting ile V1.5.55 442-1 RNA 1x 10/100 Mbit/s RJ45 port: ISO; S7, H communication, open communication (send/receive) S7 routing. 2x 100 Mbit/s, RJ45 port: PRP; ISO; ISO-on-TCP; TCP; UDP S7, H communication, open communication (send/receive) S7 routing; time synchronization IP access kontrol list; web diagnostics; SNMPV1.
Siemens 6GK7442-1RX00-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface10... 100 Mbit/s
at the 2nd interface100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet3
at the 1st interface / according to Industrial Ethernet1
at the 2nd interface / according to Industrial Ethernet2
at the 1st interface / according to Industrial EthernetRJ45 port
at the 2nd interface / according to Industrial EthernetRJ45 port
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
at 5 V5 %
from backplane bus / at DC / at 5 V / typical1,8 A
power loss [W]7,25 W
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-400 single width
width25 mm
height290 mm
depth210 mm
net weight0,7 kg
product features, product functions, product components / general
per CPU / maximum14
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum64
as user data per ISO connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum2 Kibyte
by means of T blocks / maximum64
as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum1452 bayt
performance data / S7 communication
maximum128; when using several CPUs
with PG connections / maximum2
performance data / multi-protocol mode
number of active connections / with multi-protocol mode128
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
DCPVar
requiredSTEP 7 V5.5 SP2 + HSP 1098 veya üstü
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / redundancy
ring redundancyYok
redundancy managerYok
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
High-availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP) couplingYok
protocol / is supported / Media Redundancy Protocol (MRP)Yok
product functions / security
ACL - IP-basedVar
ACL - IP-based for PLC/routingVar
switch-off of non-required servicesVar
blocking of communication via physical portsVar
log file for unauthorized accessYok
product functions / time
product function / SICLOCK supportVar
product function / pass on time synchronizationVar
NTPVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / cULus approvalVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / marine classification / header
Marine classification association / American Bureau of Shipping Europe Ltd. (ABS)Var
Marine classification association / French marine classification society (BV)Var
Marine classification association / Det Norske Veritas (DNV)Var
Marine classification association / Lloyds Register of Shipping (LRS)Var
Marine classification association / Nippon Kaiji Kyokai (NK)Var
Marine classification association / Polski Rejestr Statkow (PRS)Var
Marine classification association / Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total350,22 kg
during manufacturing65,61 kg
during operation281,89 kg
after end of life2,72 kg
