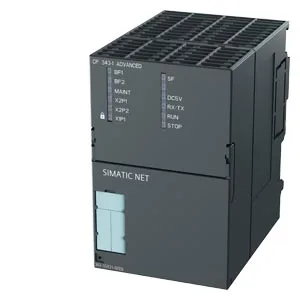

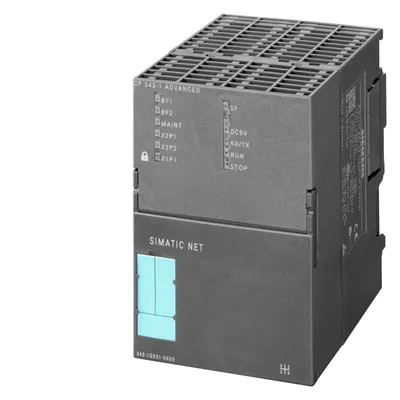

Siemens 6GK7343-1GX31-0XE0
- - yedek parça - - communications processor CP 343-1 Advanced için bağlantı of SIMATIC S7-300 CPU to Industrial Ethernet: PROFINET IO kontrolcü ve/veya IO cihaz; RT ve IRT, MRP, PROFINET CBA; TCP/IP, ISO, UDP, S7 communication, S5-compatible communication (send/receive) ile fetch/write RFC1006, multicast diagnostic extension, SNMP, DHCP, FTP client/server, email, Gigabit-SS1X RJ45 (10/100/1000) PROFINET arayüz 2x RJ45 (10/100 Mbps); PROFINET CBA; firewall/VPN; PROFIenergy.
product brand nameSIMATIC NET
at the 1st interface10... 1000 Mbit/s
at the 2nd interface10... 100 Mbit/s
for power supply1
for power supply2-pole plugable terminal block
C-PLUGVar
Ürün Hakkında
- - yedek parça - - communications processor CP 343-1 Advanced için bağlantı of SIMATIC S7-300 CPU to Industrial Ethernet: PROFINET IO kontrolcü ve/veya IO cihaz; RT ve IRT, MRP, PROFINET CBA; TCP/IP, ISO, UDP, S7 communication, S5-compatible communication (send/receive) ile fetch/write RFC1006, multicast diagnostic extension, SNMP, DHCP, FTP client/server, email, Gigabit-SS1X RJ45 (10/100/1000) PROFINET arayüz 2x RJ45 (10/100 Mbps); PROFINET CBA; firewall/VPN; PROFIenergy.
Siemens 6GK7343-1GX31-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface10... 1000 Mbit/s
at the 2nd interface10... 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet3
at the 1st interface / according to Industrial Ethernet1
at the 2nd interface / according to Industrial Ethernet2
for power supply1
at the 1st interface / according to Industrial EthernetRJ45 port
at the 2nd interface / according to Industrial EthernetRJ45 port
for power supply2-pole plugable terminal block
C-PLUGVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
supply voltage / external24 V
supply voltage / external / at DC / rated value24 V
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V15 %
from backplane bus / at DC / at 5 V / typical0,14 A
from external supply voltage / at DC / at 24 V / typical0,48 A
from external supply voltage / at DC / at 24 V / maximum0,62 A
power loss [W]14,7 W
ambient conditions
for vertical installation / during operation0... 40 °C
for horizontally arranged busbars / during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module
width80 mm
height125 mm
depth120 mm
net weight0,45 kg
S7-300 rail mountingVar
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum16
as user data per ISO connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum2 Kibyte
number of Multicast stations16
performance data / S7 communication
maximum16
performance data / multi-protocol mode
number of active connections / with multi-protocol mode48
performance data / IT functions
as client / by means of FTP / maximum10
as server / by means of FTP / maximum2
as server / by means of HTTP / maximum4
as email client / maximum1
data volume / as user data for email / maximum8 Kibyte
as flash memory file system28 Mibyte
as RAM30 Mibyte
number of possible write cycles / of the flash memory cells100000
performance data / PROFINET communication / as PN IO controller
product function / PROFINET IO controllerVar
number of PN IO devices / on PROFINET IO controller / operable / total128
number of PN IO IRT devices / on PROFINET IO controller / operable128
number of external PN IO lines / with PROFINET / per rack1
as user data for input variables / as PROFINET IO controller / maximum4 Kibyte
as user data for output variables / as PROFINET IO controller / maximum4 Kibyte
as user data for input variables per PN IO device / as PROFINET IO controller / maximum1433 bayt
as user data for output variables per PN IO device / as PROFINET IO controller / maximum1433 bayt
as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum240 bayt
as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum240 bayt
performance data / PROFINET communication / as PN IO device
product function / PROFINET IO deviceVar
as user data for input variables / as PROFINET IO device / maximum1024 bayt
as user data for output variables / as PROFINET IO device / maximum1024 bayt
as user data for input variables / for each sub-module as PROFINET IO device240 bayt
as user data for output variables / for each sub-module as PROFINET IO device240 bayt
as user data for the consistency area for each sub-module240 bayt
number of submodules / per PROFINET IO-Device32
performance data / PROFINET CBA
number of remote connection partners / with PROFINET CBA64
number of connections / with PROFINET CBA / total1000
as user data for digital inputs / with PROFINET CBA / maximum8 Kibyte
as user data for digital outputs / with PROFINET CBA / maximum8 Kibyte
as user data for arrays and data types / in the case of acyclic transmission / with PROFINET CBA / maximum8 Kibyte
as user data for arrays and data types / with PROFINET CBA / with cyclical transfer / maximum250 bayt
as user data for arrays and data types / with PROFINET CBA / in the case of local interconnection / maximum2400 bayt
performance data / PROFINET CBA / remote interconnection / with acyclic transfer
update time / of the remote interconnections / in the case of acyclic transmission / with PROFINET CBA100 ms
number of remote connections to input variables / in the case of acyclic transmission / with PROFINET CBA / maximum128
number of remote connections to output variables / in the case of acyclic transmission / with PROFINET CBA / maximum128
as user data for remote interconnections with input variables / in the case of acyclic transmission / with PROFINET CBA8 Kibyte
as user data for remote interconnections with output variables / in the case of acyclic transmission / with PROFINET CBA8 Kibyte
performance data / PROFINET CBA / remote interconnection / with cyclic transfer
update time / of the remote interconnections / with cyclical transfer / with PROFINET CBA8 ms
number of remote connections to input variables / with PROFINET CBA / with cyclic transfer / maximum200
number of remote connections to output variables / with cyclical transfer / with PROFINET CBA / maximum200
as user data for remote interconnections with input variables / with cyclical transfer / with PROFINET CBA / maximum2000 bayt
as user data for remote interconnections with output variables / with cyclical transfer / with PROFINET CBA / maximum2000 bayt
performance data / PROFINET CBA / HMI variables via PROFINET / acyclic
number of connectable HMI stations / for HMI variables / in the case of acyclic transmission / with PROFINET CBA3
update time / of the HMI variables / in the case of acyclic transmission / with PROFINET CBA500 ms
number of HMI variables / in the case of acyclic transmission / with PROFINET CBA / maximum200
data volume / as user data for HMI variables / in the case of acyclic transmission / with PROFINET CBA / maximum8 Kibyte
performance data / PROFINET CBA / device-internal interconnections
number of internal connections / with PROFINET CBA / maximum256
data volume / of the internal connections / with PROFINET CBA / maximum2400 bayt
performance data / PROFINET CBA / interconnections to constants
number of connections with constants / with PROFINET CBA / maximum200
data volume / as user data for interconnections with constants / with PROFINET CBA / maximum4096 bayt
performance data / PROFINET CBA / PROFIBUS proxy functionality
product function / with PROFINET CBA / PROFIBUS proxy functionalityYok
performance data / telecontrol
TCP/IPVar
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
SNMP v3Var
DCPVar
LLDPVar
requiredSTEP7 V5.5 SP2 HF1 veya üstü / STEP 7 Professional V12 (TIA Portal) veya üstü
for PROFINET CBA / requiredSIMATIC iMap V3.0 SP4 ve üstü
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / switch
product feature / switchVar
switch-managedYok
with IRT / PROFINET IO switchVar
configuration with STEP 7Var
product functions / redundancy
ring redundancyVar
redundancy managerVar
protocol / is supported / Media Redundancy Protocol (MRP)Var
product functions / security
firewall versionstateful inspection
product function / with VPN connectionIPSec
type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168, DES-56
type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates
type of hashing algorithms / with VPN connectionMD5, SHA-1
number of possible connections / with VPN connection32
password protection for Web applicationsVar
ACL - IP-basedVar
ACL - IP-based for PLC/routingVar
switch-off of non-required servicesVar
blocking of communication via physical portsVar
log file for unauthorized accessYok
product functions / time
product function / SICLOCK supportVar
product function / pass on time synchronizationVar
NTPVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / marine classification / header
Marine classification association / Polski Rejestr Statkow (PRS)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total153,1 kg
during manufacturing26,4 kg
during operation126,16 kg
after end of life0,54 kg
Aksesuarlar 44
Siemens 6GK7343-1GX31-0XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0AB00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6XV1878-2A | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical |
İlgili Ürünler
Detayları Gör
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
Detayları Gör
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
Detayları Gör
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
Detayları Gör
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
Detayları Gör
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
Detayları Gör
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
Detayları Gör
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
Detayları Gör
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
Detayları Gör
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Öne Çıkan Ürünler
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
İlgili Aramalar
Siemens 6GK7343-1GX31-0XE0 fiyatSiemens 6GK7343-1GX31-0XE0 teklif alSiemens 6GK7343-1GX31-0XE0 satın al6GK7343-1GX31-0XE0 fiyat6GK7343-1GX31-0XE0 stok durumuSiemens yedek parçaSiemens 6GK7343-1GX31-0XE0 muadilSiemens 6GK7343-1GX31-0XE0 teknik özellikler
