Detayları Gör
Siemens
6GK1411-1AC00
MFR #6GK1411-1AC00
SKU #YLSUPUJLQ5SX
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

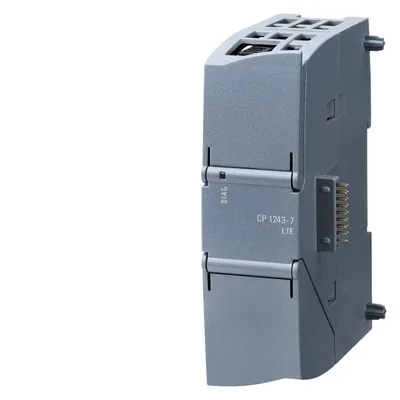

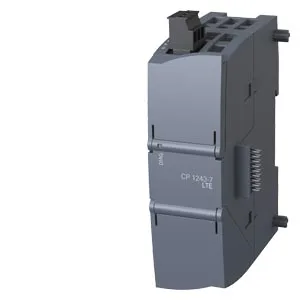

Siemens 6GK7243-7SX30-0XE0
Communications processor CP 1243-7 LTE US için bağlantı of SIMATIC S7-1200 to LTE network in American frekans band.
product brand nameSIMATIC NET
— with downlink / maximum42 Mbit/s
— with uplink / maximum5,76 Mbit/s
for external antenna(s)1
for power supply1
for SIM cards1
Ürün Hakkında
Communications processor CP 1243-7 LTE US için bağlantı of SIMATIC S7-1200 to LTE network in American frekans band.
Siemens 6GK7243-7SX30-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
— with downlink / maximum42 Mbit/s
— with uplink / maximum5,76 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet0
for external antenna(s)1
for power supply1
for SIM cards1
for external antenna(s)SMA socket (50 ohms)
for power supply3-pole terminal block
for SIM cardStandard
wireless technology
SMSVar
GPRSVar
GPRS (Multislot Class 10)
GSMVar
UMTSVar
LTEVar
850 MHzVar
1900 MHzVar
operating frequency / for LTE transmission700 MHz, 1700 MHz
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / external24 V
supply voltage / external / at DC / rated value24 V
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V20 %
from external supply voltage / at DC / at 24 V / typical0,1 A
from external supply voltage / at DC / at 24 V / maximum0,22 A
ambient conditions
for vertical installation / during operation-20... +60 °C
for horizontally arranged busbars / during operation-20... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-1200 single width
width30 mm
height100 mm
depth75 mm
net weight0,133 kg
35 mm DIN-rail mountingVar
S7-300 rail mountingYok
wall mountingVar
product features, product functions, product components / general
per CPU / maximum3
product functions / cloud connectivity
Message Queuing Telemetry Transport (MQTT)Var
Advanced Message Queuing Protocol (AMQP)Yok
trigger managementVar
time stampingVar
product feature / for cloud connectivity / buffered message frame memoryYok
number of active connections / for cloud connectivity1
number of data points per device / maximum500
performance data
number of users/telephone numbers / definable / maximum10
performance data / open communication
by means of T blocks / maximumlike CPU
performance data / IT functions
as email client / maximum1
performance data / telecontrol
substationVar
control center connectionTelecontrol Server Basic
by means of a permanent connectionsupported
by means of demand-oriented connectionsupported
noteConnection to SCADA system using OPC interface
DNP3Var
IEC 60870-5Var
product function / data buffering if connection is abortedVar; 64,000 events
in send direction / maximum3
in receive direction / maximum15
performance data / teleservice
diagnostics function / online diagnostics with SIMATIC STEP 7Var
program download with SIMATIC STEP 7Var
remote firmware updateVar
product functions / management, configuration, engineering
requiredSTEP 7 Basic/Professional
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / security
firewall versionstateful inspection
product function / with VPN connectionIPsec, SINEMA RC
type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168, DES-56
type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates
type of hashing algorithms / with VPN connectionMD5, SHA-1
number of possible connections / with VPN connection1
password protection for teleservice accessVar
encrypted data transmissionVar
product functions / time
NTPVar
from control centerVar
standards, specifications, approvals
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total180,78 kg
during manufacturing15,34 kg
during operation165,23 kg
after end of life0,21 kg
Aksesuarlar 6
Siemens 6GK7243-7SX30-0XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK5896-4ME00-0AA0 | Aksesuar · Antenna | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1875-5LE30 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5LH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5LH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5LH50 | Aksesuar · Cables · cable for WLAN antennas |
