Siemens
6GK1411-1AC00
MFR #6GK1411-1AC00
SKU #YLSUPUJLQ5SX
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.
Siemens 6GK7243-1BX30-0XE0

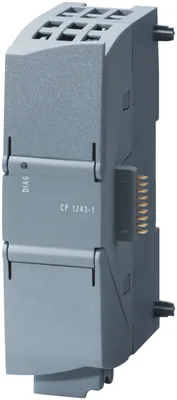

Communications processor CP 1243-1 için bağlantı of SIMATIC S7-1200 as ek Ethernet arayüz ve için bağlantı to kontrol centers via telecontrol protocols (DNP3, IEC 60870, TeleControl temel), security (Firewall, VPN).
product brand nameSIMATIC NET
at the 1st interface10... 100 Mbit/s
for power supply0
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
power loss [W]1,25 W
Ürün Hakkında
Communications processor CP 1243-1 için bağlantı of SIMATIC S7-1200 as ek Ethernet arayüz ve için bağlantı to kontrol centers via telecontrol protocols (DNP3, IEC 60870, TeleControl temel), security (Firewall, VPN).
Siemens 6GK7243-1BX30-0XE0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface10... 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet1
at the 1st interface / according to Industrial Ethernet1
for power supply0
at the 1st interface / according to Industrial EthernetRJ45 port
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
from backplane bus / at DC / at 5 V / typical0,25 A
power loss [W]1,25 W
ambient conditions
for vertical installation / during operation-20... +60 °C
for horizontally arranged busbars / during operation-20... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-1200 single width
width30 mm
height110 mm
depth75 mm
net weight0,122 kg
35 mm DIN-rail mountingVar
wall mountingVar
product features, product functions, product components / general
per CPU / maximum3
product functions / cloud connectivity
Message Queuing Telemetry Transport (MQTT)Var
Advanced Message Queuing Protocol (AMQP)Yok
trigger managementVar
time stampingVar
product feature / for cloud connectivity / buffered message frame memoryYok
number of active connections / for cloud connectivity1
number of data points per device / maximum500
performance data / open communication
by means of T blocks / maximumlike CPU
performance data / S7 communication
maximumlike CPU
performance data / IT functions
as email client / maximum1
performance data / telecontrol
node stationYok
substationVar
TIM control centerYok
control center connectionFor use with TeleControl Server Basic, WinCC ve PCS7
by means of a permanent connectionsupported
noteConnection to SCADA system via Telecontrol Server Basic ve Standard Telecontrol protocols
DNP3Var
IEC 60870-5Var
product function / data buffering if connection is abortedVar; 64,000 events
number of data points per device / maximum500
in send direction / maximum3
in receive direction / maximum15
performance data / teleservice
diagnostics function / online diagnostics with SIMATIC STEP 7Var
program download with SIMATIC STEP 7Var
remote firmware updateVar
product functions / management, configuration, engineering
requiredSTEP 7 Basic/Professional
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / security
firewall versionstateful inspection
product function / with VPN connectionIPsec, SINEMA RC
type of encryption algorithms / with VPN connectionAES-256, AES-192, AES-128, 3DES-168
type of authentication procedure / with VPN connectionPreshared key (PSK), X.509v3 certificates
type of hashing algorithms / with VPN connectionMD5, SHA-1, SHA-2
number of possible connections / with VPN connection8
password protection for Web applicationsYok
password protection for teleservice accessYok
encrypted data transmissionVar
ACL - IP-basedYok
ACL - IP-based for PLC/routingYok
switch-off of non-required servicesVar
blocking of communication via physical portsYok
log file for unauthorized accessYok
product functions / time
NTPVar
NTP (secure)Var
from NTP-serverVar
from control centerVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / cULus approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
standards, specifications, approvals / marine classification / header
Marine classification association / Det Norske Veritas (DNV)Var
Marine classification association / Lloyds Register of Shipping (LRS)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total89,58 kg
during manufacturing14,29 kg
during operation75,11 kg
after end of life0,18 kg
Aksesuarlar 33
Siemens 6GK7243-1BX30-0XE0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical |
