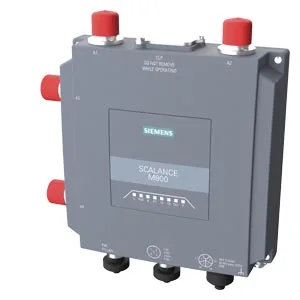

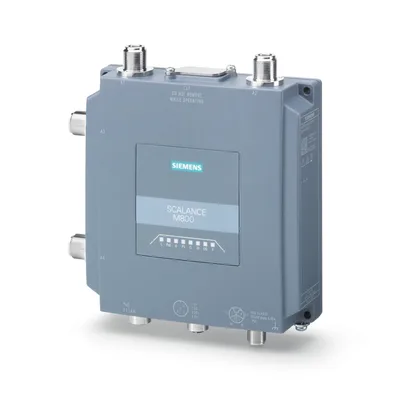

Siemens 6GK5856-2EA10-3AA1
SCALANCE MUM856-1 (A1) 5G router, IP65, for wireless IP communication from Ethernet-based applications via public 3/4/5G mobile radio networks and private 5G networks, VPN, firewall, NAT, IPv6, connection to SINEMA RC via CLP, 4 N- Connect connections, 1x micro SIM slot, eSIM, 1x10/100/1000 Mbps M12 socket, redundant DC 24 V, M12 L-encoded, PoE, -30… +70 °C, CLP slot, 1x DI and 1x DO, A-coded, observe national approvals: siemens.com/mobile-approvals CERT ID: MS5G16R-65-M1-M12-E4-1
product brand nameSCALANCE
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
for external antenna(s)4
for power supply1
for redundant voltage supply1
for external antenna(s)N-Connect (socket)
Ürün Hakkında
SCALANCE MUM856-1 (A1) 5G router, IP65, for wireless IP communication from Ethernet-based applications via public 3/4/5G mobile radio networks and private 5G networks, VPN, firewall, NAT, IPv6, connection to SINEMA RC via CLP, 4 N- Connect connections, 1x micro SIM slot, eSIM, 1x10/100/1000 Mbps M12 socket, redundant DC 24 V, M12 L-encoded, PoE, -30… +70 °C, CLP slot, 1x DI and 1x DO, A-coded, observe national approvals: siemens.com/mobile-approvals CERT ID: MS5G16R-65-M1-M12-E4-1
Siemens 6GK5856-2EA10-3AA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
with UMTS transmission / with downlink / maximum42 Mbit/s
with UMTS transmission / with uplink / maximum5,76 Mbit/s
for LTE transmission / with downlink / maximum1000 Mbit/s
for LTE transmission / with uplink / maximum200 Mbit/s
for 5G transmission / with downlink / maximum1000 Mbit/s
for 5G transmission / with uplink / maximum500 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum1
number of electrical/optical connections / for gigabit Ethernet / maximum1
for network components or terminal equipment1
for external antenna(s)4
for power supply1
for redundant voltage supply1
for network components or terminal equipmentM12 (8-pin, X-coded), PoE
for external antenna(s)N-Connect (socket)
for redundant voltage supplyM12 (4-pin, L-coded)
memory
number of slots / for Micro-SIM card1
product component / eSIM integratedVar
design of the removable storage / CLPVar
signal inputs/outputs
number of digital inputs1
number of digital outputs1
type of electrical connection / at the digital inputs/outputsM12 (4-pin, A-coded)
input voltage / at digital input / at DC-30... +30 V
output voltage / at digital output / at DC / maximum24 V; 0,5 A
operational current / of the signaling contacts / at DC / at 30 V / maximum0,008 A
WAN connection
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS
type of mobile wireless service / is supportedHSDPA, HSUPA, HSPA+
5G Standalone (SA)n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75(DL), n77, n78, n79
5G Non-Standalone (NSA)n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n66, n71, n77, n78, n79
LTEB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(DL), B48, B66, B71
UMTSB1, B2, B4, B5, B6, B8, B19
supply voltage, current consumption, power loss
supply voltage / from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V
at DC / at 24 V0,55 A
at DC / at 24 V / sleep mode / maximum0,013 A
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0,27 A
at DC / at 24 V / typical13,2 W
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical12,96 W
supply voltage / 1 / rated value24 V
type of voltageredundant 24 V DC power supply, M12, L-coded
type of voltage / 1 / of the supply voltageDC
supply voltage / 2 / rated value24 V
type of voltage / 2 / of the supply voltageDC
supply voltage / 3 / rated value48 V
type of voltage / 3 / of the supply voltageDC, PoE
ambient conditions
during operation-30... +70 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP65
design, dimensions and weights
depth45 mm
height179 mm
width166 mm
net weight1300 g
fastening methodWall mounting, mounting on a DIN rail with a separate mounting adapter
35 mm DIN-rail mountingVar
wall mountingVar
product features, product functions, product components / general
DynDNS clientVar
no-ip.com clientVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeYok
statistics packet typeYok
error statisticsYok
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
with VPN connectionIPsec, OpenVPN (as Client)
number of possible connections / with VPN connection20
type of authentication / with Virtual Private Network / PSKVar
IPsec tunnel and transport modeVar
1 / with IPsec AES / with Virtual Private Network128 bit
2 / with IPsec AES / with Virtual Private Network192 bit
3 / with IPsec AES / with Virtual Private Network256 bit
with IPsec 3DES / with Virtual Private Network168 bit
main modeVar
quick modeVar
type of packet authentication / with Virtual Private NetworkMD5, SHA-1, SHA-256, SHA-384, SHA-512
IETF profile / with Virtual Private Network / X.509v3 certificateVar
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals
for EMCETSI EN 301 489-1, ETSI EN 301 489-19, ETSI EN 301 489-52, EN 55011, NAMUR NE21
for emitted interferenceCISPR 32, ETSI EN 55032 Class A / Class B, EN IEC 61000-6-3, EN IEC 61000-6-4
for interference immunityCISPR 35, EN 55035, EN IEC 61000-6-1, EN IEC 61000-6-2
EC Declaration of ConformityVar
CE markingVar
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afVar
railway application in accordance with EN 50121-3-2Var
railway application in accordance with EN 50121-4Var
railway application in accordance with EN 50155Var; no coated printed-circuit boards, EMC: trackside unit/vehicle unit, climate: use in the vehicle within equipment boxes/cabinets, mechanical system: class B: in equipment housing
fire protection in accordance with EN 45545-2Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total394,89 kg
during manufacturing33,7 kg
during operation361 kg
after end of life0,19 kg
Aksesuarlar 75
Siemens 6GK5856-2EA10-3AA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0UB00-0AA0 | Aksesuar | |
| 6GK5908-0UA00-0AA0 | Aksesuar | |
| 6GK5897-4MC00-0AA0 | Aksesuar · Antenna | |
| 6XV1875-5AH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5897-4ME00-0AA0 | Aksesuar · Antenna | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6GK1906-0EB00 | Aksesuar | |
| 6XV1801-6DH20 | Aksesuar · Cables · power cables | |
| 6GK1720-1AH01-0BV0 | Aksesuar | |
| 6GK1908-0DB10-6AA0 | Aksesuar | |
| 6XV1801-2CH20 | Aksesuar · Cables · power cables | |
| 6GK1901-0DB50-6AA0 | Aksesuar | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-0DB50-6AA8 | Aksesuar | |
| 6GK5798-8MF00-0AA1 | Aksesuar | |
| 6GK5798-8MF00-0AB1 | Aksesuar | |
| 6XV1801-6DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN15 | Aksesuar · Cables · power cables | |
| 6XV1878-5GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1875-5AH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AN10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5SH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5SH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5SH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1876-2A | Aksesuar · Cables · network cable electrical | |
| 6GK1906-0EA00 | Aksesuar | |
| 6GK1907-0AB11-6AA0 | Aksesuar | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1801-6GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN15 | Aksesuar · Cables · power cables | |
| 6XV1878-5SE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SN15 | Aksesuar · Cables · network cable electrical |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
İlgili Aramalar
Siemens 6GK5856-2EA10-3AA1 fiyatSiemens 6GK5856-2EA10-3AA1 teklif alSiemens 6GK5856-2EA10-3AA1 satın al6GK5856-2EA10-3AA1 fiyat6GK5856-2EA10-3AA1 stok durumuSiemens yedek parçaSiemens 6GK5856-2EA10-3AA1 muadilSiemens 6GK5856-2EA10-3AA1 teknik özellikler
