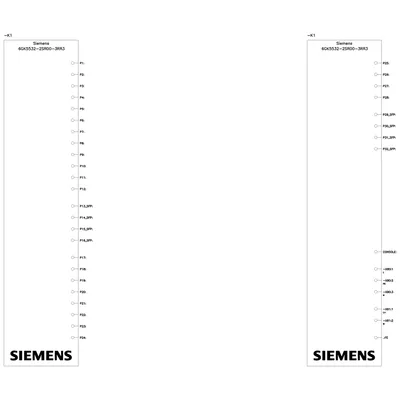

Siemens 6GK5532-2SR00-3RR3

SCALANCE XR524-8WG; managed IE switch, 19" rack; 24x 10/100/1000 Mbps RJ45 port; 8x 1G/10G SFP+ port; no UL/FM approval; LED diagnostics; select/set button, PROFINET IO device, network management, integrated redundancy manager, office features (RSTP, VLAN, IGMP,..) CLP not included in scope of delivery; power supply 1x 230 V AC; layer 3 integrated; layer 3 integrated;

SiemensMFR # 6GK5532-2SR00-3RR3SKU # YLSIQKWH6HA83K

product brand nameSCALANCE

product type designationXR524-8WG

transfer rate10, 100, 1000 Mbit/s

transfer rate10 Gbit/s

number of 10/100/1000 Mbit/s RJ45 ports24; RJ45

for SFP+8

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 6GK5532-2SR00-3RR3

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product type designation

product brand nameSCALANCE

product type designationXR524-8WG

transfer rate

transfer rate10, 100, 1000 Mbit/s

transfer rate10 Gbit/s

interfaces / for communication / integrated

for network components or terminal equipment32

number of 10/100/1000 Mbit/s RJ45 ports24; RJ45

for SFP+8

interfaces / other

for operator console1

for power supply1

for operator consoleUSB (2,0 type B, USB-to-serial adapter)

for power supplyIEC plug C14 AC supply

CLPVar

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYok

type of voltage supply / redundant power supply unitYok

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value100 V... 250 V DC

power loss [W] / 1 / rated value99 W

supply voltage / 1 / voltage range77... 300

consumed current / 1 / maximum0,8 A

type of electrical connection / 1 / for power supply2-pole terminal block

product component / 1 / fusing at power supply inputVar

fuse protection type / 1 / at input for supply voltageF 4 A / 250 V

type of voltage / 2 / of the supply voltageAC (50 / 60 Hz)

supply voltage / 2 / rated value240 V; 100V... 240V AC

power loss [W] / 2 / rated value99 W

supply voltage / 2 / voltage range85... 264

consumed current / 2 / maximum0,8 A

type of electrical connection / 2 / for power supplyIEC plug C14

fuse protection type / 2 / at input for supply voltageF 4 A / 250 V

ambient conditions

ambient temperature / in horizontal mounting position / during operation0... 60 °C

installation altitude / at height above sea level / maximum3000 m

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

design19-inch rack

number of modular height units / relating to 19-inch cabinet1

width446 mm

height43,6 mm

depth374,8 mm

net weight8,2 kg

material / of the enclosuremetal

19-inch installationVar

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

number of automatically learnable MAC addresses16382

number of QoS queues / per port8

QoS according to IEEE 802.1QVar

Store & Forward switching methodVar

product functions / management, configuration, engineering

CLIVar

web-based managementVar

MIB supportVar

TRAPs via emailVar

configuration with STEP 7Var

RMONVar

port mirroringVar

multiport mirroringVar

CoSVar

PROFINET IO diagnosisVar

switch-managedVar

PROFINET conformity classB

network load class / according to PROFINETIII

telegram length / for Ethernet / maximum9194 bayt

TelnetVar

HTTPVar

HTTPSVar

TFTPVar

FTPVar

SFTPVar

BOOTPVar

NETCONFYok

GMRPVar

DCPVar

LLDPVar

EtherNet/IPVar

SNMP v1Var

SNMP v2Var

SNMP v3Var

IGMP (snooping/querier)Var

I&M0 - device-specific informationVar

I&M1 - higher level designation/location designationVar

product functions / diagnostics

port diagnosticsVar

statistics Packet SizeVar

statistics packet typeVar

error statisticsVar

SysLogVar

product functions / VLAN

VLAN - port basedVar

VLAN - protocol-basedVar

VLAN - IP-basedVar

VLAN dynamicVar

number of VLANs / maximum257

number of VLANs - dynamic / maximum257

number of VLANs / at ring redundancy (HRP; MRP; standby link)257

product functions / DHCP

DHCP serverVar

DHCP clientVar

DHCP Option 82Var

DHCP Option 66Var

DHCP Option 67Var

product functions / routing

service / routing / noteIP routing dahili

static IP routingVar

static IP routing IPv6Yok

dynamic IP routingVar

dynamic IP routing IPv6Yok

RIPv2Var

RIPnG for IPv6Yok

OSPFv2Var

OSPFv3 for IPv6Yok

VRRPVar

VRRP for IPv6Yok

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Var

media redundancy protocol (MRP) with redundancy managerVar

Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode

of the PROFINET IO device / is supported / PROFINET system redundancyVar

ring redundancyVar

high speed redundancy protocol (HRP) with redundancy managerVar

high speed redundancy protocol (HRP) with standby redundancyVar

redundancy procedure STPVar

redundancy procedure RSTPVar

redundancy procedure RSTP+Var

redundancy procedure MSTPVar

passive listeningVar

STP/RSTPVar

STPVar

RSTPVar

MSTPVar

RSTP big network supportVar

LACPVar

system modification during operation

product function / configuration in RUN via CiR/H-CiRVar

product functions / security

IEEE 802.1x (radius)Var

broadcast/multicast/unicast limiterVar

broadcast blockingVar

SSHVar

SSLVar

product functions / time

SICLOCK supportVar

NTP-clientVar

SNTP clientVar

IEEE 1588 v2 transparent forwardingVar

NTPVar

SNTPVar

not less than100 ns

typical50 ns

standards, specifications, approvals

CE markingVar

UKCA markingVar

KC onayıVar

Regulatory Compliance Mark (RCM)Var

product conformity / according to EMC-guideline2014/30/EU

for EMC interference emissionEN 61000-6-4, EN 50121-9

for immunity to EMCEN 61000-6-2, EN 50121-4

standards, specifications, approvals / other

railway application in accordance with EN 50121-4Var; use only in areas not accessible to the public

railway application in accordance with EN 50125-3Var; Section 4,2: Class AX (up to 2000m); section 4,3: T1: Containers N.T.C ve T.C. / Buildings N.C.C ve C.C, T2: Containers N.T.C ve T.C. / Buildings N.C.C ve C.C, TX: Containers N.T.C ve T.C. / Buildings N.C.C ve C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used; section 4,4: T1: Containers C.C. / Buildings N.C.C ve C.C., T2: Containers C.C. / Buildings N.C.C ve C.C, T3: Containers C.C. / Buildings N.C.C ve C.C; section 4,11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 62368-1, UL 61010-2-10; section 4,13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4,14: yes; section 4,15: yes, according to manual.

RoHS conformityVar

resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3

IT security for industrial automation systems / according to IEC 62443-4-2:2019Var

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationVar

total1122,93 kg

during manufacturing207 kg

during operation915 kg

after end of life0,93 kg

product functions / general

MTBF8,3 a

reference temperature / for MTBF determination40 °C

warranty period5 a

product function / is supported / identification linkVar; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing207 kg

global warming potential [CO2 eq] / during operation915 kg

global warming potential [CO2 eq] / after end of life0,93 kg

global warming potential [CO2 eq] / total1122,93 kg
