Siemens 6GK5532-2SR00-2RR3

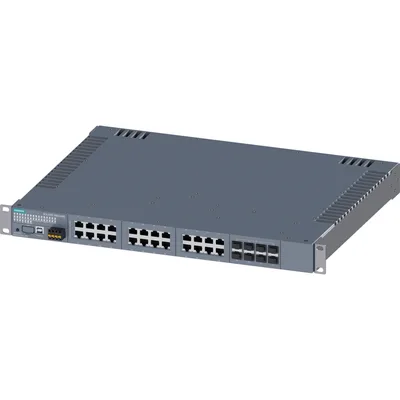

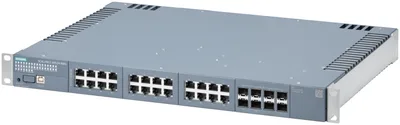

SCALANCE XR524-8WG; managed IE switch, 19" rack; 24x 10/100/1000 Mbps RJ45 port; 8x 1G/10G SFP+ port; no UL/FM approval; LED diagnostics; select/set button; PROFINET IO device, network management, integrated redundancy manager, office features (RSTP, VLAN, IGMP,..) CLP not included in scope of delivery; power supply 24 V DC; layer 3 integrated; layer 3 integrated;
product brand nameSCALANCE
product type designationXR524-8WG
transfer rate10, 100, 1000 Mbit/s
transfer rate10 Gbit/s
number of 10/100/1000 Mbit/s RJ45 ports24; RJ45
for SFP+8
Ürün Hakkında
SCALANCE XR524-8WG; managed IE switch, 19" rack; 24x 10/100/1000 Mbps RJ45 port; 8x 1G/10G SFP+ port; no UL/FM approval; LED diagnostics; select/set button; PROFINET IO device, network management, integrated redundancy manager, office features (RSTP, VLAN, IGMP,..) CLP not included in scope of delivery; power supply 24 V DC; layer 3 integrated; layer 3 integrated;
Siemens 6GK5532-2SR00-2RR3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXR524-8WG
transfer rate
transfer rate10, 100, 1000 Mbit/s
transfer rate10 Gbit/s
interfaces / for communication / integrated
for network components or terminal equipment32
number of 10/100/1000 Mbit/s RJ45 ports24; RJ45
for SFP+8
interfaces / other
for operator console1
for power supply2
for operator consoleUSB (2,0 type B, USB-to-serial adapter)
for power supply2 x 2-pole terminal block
CLPVar
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value72 W
supply voltage / 1 / voltage range19,2... 31,2
consumed current / 1 / maximum3 A
type of electrical connection / 1 / for power supply2 x 2-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 10 A / 250 V
type of voltage / 2 / of the supply voltageAC (50 / 60 Hz)
supply voltage / 2 / rated value24 V
power loss [W] / 2 / rated value72 W
supply voltage / 2 / voltage range19,2... 30
consumed current / 2 / maximum3 A
type of electrical connection / 2 / for power supply2 x 2-pole terminal block
fuse protection type / 2 / at input for supply voltageF 10 A / 250 V
ambient conditions
ambient temperature / in horizontal mounting position / during operation0... 60 °C
installation altitude / at height above sea level / maximum4000 m
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
design19-inch rack
number of modular height units / relating to 19-inch cabinet1
width446 mm
height43,6 mm
depth374,8 mm
net weight8 kg
material / of the enclosuremetal
19-inch installationVar
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
number of automatically learnable MAC addresses16382
number of QoS queues / per port8
QoS according to IEEE 802.1QVar
Store & Forward switching methodVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
port mirroringVar
multiport mirroringVar
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum9194 bayt
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
SFTPVar
BOOTPVar
NETCONFYok
GMRPVar
DCPVar
LLDPVar
EtherNet/IPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedVar
VLAN - IP-basedVar
VLAN dynamicVar
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP serverVar
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / routing
service / routing / noteIP routing dahili
static IP routingVar
static IP routing IPv6Yok
dynamic IP routingVar
dynamic IP routing IPv6Yok
RIPv2Var
RIPnG for IPv6Yok
OSPFv2Var
OSPFv3 for IPv6Yok
VRRPVar
VRRP for IPv6Yok
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Var; LC mode
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Var
redundancy procedure MSTPVar
passive listeningVar
STP/RSTPVar
STPVar
RSTPVar
MSTPVar
RSTP big network supportVar
LACPVar
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
IEEE 802.1x (radius)Var
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientVar
IEEE 1588 v2 transparent forwardingVar
NTPVar
SNTPVar
not less than100 ns
typical50 ns
standards, specifications, approvals
CE markingVar
UKCA markingVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
product conformity / according to EMC-guideline2014/30/EU
for EMC interference emissionEN 61000-6-4, EN 50121-9
for immunity to EMCEN 61000-6-2, EN 50121-4
standards, specifications, approvals / other
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total2101,59 kg
during manufacturing132 kg
during operation1969 kg
after end of life0,59 kg
product functions / general
MTBF12,6 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing132 kg
global warming potential [CO2 eq] / during operation1969 kg
global warming potential [CO2 eq] / after end of life0,59 kg
global warming potential [CO2 eq] / total2101,59 kg
