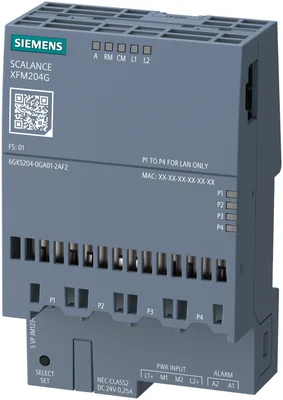

Siemens 6GK5204-0GA01-2AF2
SCALANCE XFM204G flat managed layer 2 IE anahtar; 4 x 1 Gbps RJ45 ports; redundant 24 V DC güç kaynağı; sıcaklık range -40 °C to +60 °C; SINEC OS; PROFINET IO cihaz CC-B; CLP slot; DIN-rail montaj;
product brand nameSCALANCE
product type designationXFM204G
transfer rate10, 100, 1000 Mbit/s
with securing collar4
for signaling contact1
for power supply1
Ürün Hakkında
SCALANCE XFM204G flat managed layer 2 IE anahtar; 4 x 1 Gbps RJ45 ports; redundant 24 V DC güç kaynağı; sıcaklık range -40 °C to +60 °C; SINEC OS; PROFINET IO cihaz CC-B; CLP slot; DIN-rail montaj;
Siemens 6GK5204-0GA01-2AF2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXFM204G
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment4; RJ45
with securing collar4
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
CLPVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value4,6 W
power loss [W] / at DC / at 24 V / typical4,1 W
supply voltage / 1 / voltage range19,2... 31,2
consumed current / 1 / maximum0,19 A
consumed current / at DC / at 24 V / typical0,17 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 1,5 A / 250 V
ambient conditions
during operation-40... +60 °C
during storage-40... +70 °C
during transport-40... +85 °C
noteduring transport >1 year maks. +40°C
ambient temperature / in horizontal mounting position / during operation-40... +60 °C; Starting -40 °C; The maximum ambient temperature during operation depends on the operating height ve the plug-in transceivers, see also manual.
installation altitude / at height above sea level / maximum4000 m
at 25 °C / without condensation / during operation / maximum95 %
operating condition / fanless operationVar
protection class IPIP20

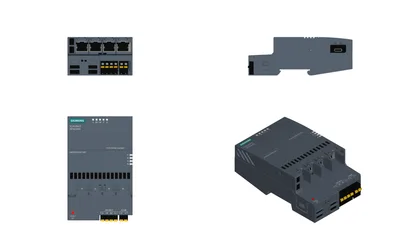

design, dimensions and weights
designflat
width75 mm
height120 mm
depth44 mm
net weight0,175 kg
material / of the enclosurePolycarbonate (PC-GF10)
fastening method35 mm DIN rail according to EN 60715
35 mm DIN-rail mountingVar
wall mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingYok
type of cable outletcable outlet bottom
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
QoS according to DSCPVar
Store & Forward switching methodVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONYok
SMTP serverYok
port mirroringVar
multiport mirroringYok
Encapsulated Remote Traffic Mirroring (ERTM)Yok
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum2048 bayt
TelnetYok
HTTPVar
HTTPSVar
TFTPVar
FTPVar
SFTPVar
BOOTPYok
NETCONFVar
GMRPVar
DCPVar
LLDPVar
EtherNet/IPYok
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicVar
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP serverYok
DHCP clientVar
DHCP Option 82Yok
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol Interconnection (MRP-I)Yok
Media Redundancy Protocol for Planned Duplication (MRPD)Yok
of the PROFINET IO device / is supported / H-Sync forwardingVar
of the PROFINET IO device / is supported / PROFINET system redundancyVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerYok
high speed redundancy protocol (HRP) with standby redundancyYok
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure RSTP+Yok
redundancy procedure MSTPVar
passive listeningVar
eRSTPYok
STP/RSTPVar
STPYok
RSTPVar
MSTPVar
LACPYok
system modification during operation
product function / configuration in RUN via CiR/H-CiRVar
product functions / security
product conformity / according to IEEE 802.1X-port based Network Access ControlVar
IEEE 802.1x (radius)Var
RADIUS clientVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
RADIUSVar
SSHVar
SSLVar
product functions / time
SICLOCK supportVar
NTP-clientVar
SNTP clientYok
NTPVar
SNTPVar
IEEE 1588 profile defaultYok
standards, specifications, approvals
CE markingVar
UKCA markingVar
Regulatory Compliance Mark (RCM)Var
product conformity / according to EMC-guideline2014/30/EU
for EMC interference emissionEN 61000-6-4
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULin preparation
standards, specifications, approvals / other
RoHS conformityVar
IT security for industrial automation systems / according to IEC 62443-4-2:2019Yok
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteavailable soon
standards, specifications, approvals / Environmental Product Declaration
Siemens eco profile (SEP)available soon
product functions / general
MTBF53 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkVar
