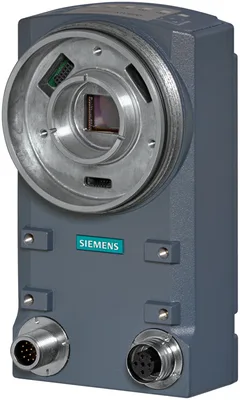

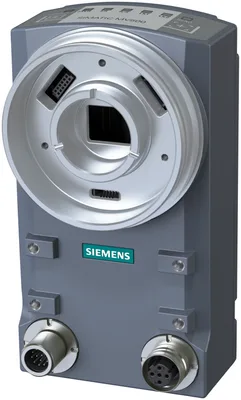

Siemens 6GF3540-0CD10
Important for spare part order: If defective MV540 contains a license, a identified repair must take place! resolution: 800 x 600 pixels; Function: 1D/2D code reading; Image field and distance: variable (depends on lens); PoE; IP67 with 6GF3540-8ADxx; Delivery: Reader and SD card adapter;
product brand nameSIMATIC MV
of Industrial Ethernet interfaceM12, d-coded, PoE
of the RS 422 interfaceM12, 12-pin, male
of the RS 232 interfaceM12, 12-pin, male
for supply voltageM12, 12-pin, male
at the digital inputs/outputsM12, 12-pin, male
Ürün Hakkında
Important for spare part order: If defective MV540 contains a license, a identified repair must take place! resolution: 800 x 600 pixels; Function: 1D/2D code reading; Image field and distance: variable (depends on lens); PoE; IP67 with 6GF3540-8ADxx; Delivery: Reader and SD card adapter;
Siemens 6GF3540-0CD10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC MV
suitability for operation1D codes: Int. 2/5, Code 128, Code 93, Code 39, Code 32, EAN 13, EAN 8, UPC-A, UPC-E, GS1, Pharmacode, Postnet, 2D codes: DMC, dot code, PDF417 (without: Truncated, Micro ve Macro), Q R (without: Micro ve Macro), verification uncalibrated
interfaces
of Industrial Ethernet interfaceM12, d-coded, PoE
of the RS 422 interfaceM12, 12-pin, male
of the RS 232 interfaceM12, 12-pin, male
for supply voltageM12, 12-pin, male
at the digital inputs/outputsM12, 12-pin, male
number of digital inputs1
number of digital outputs3
digital input version1 fast trigger input
digital output version1 fast strobe output, 2 potential-free outputs (NPN- PNP-capable)
optical data
design of image sensor / of the cameraCMOS-Chip, 800 x 600
type of image captureGlobal shutter with manual veya automatic exposure time
range70... 3000 mm
range / noteUsing C-mount lenses ve lens accessories, the range can be exactly matched to the application
fastening method / of lensC-mount lens connection
type of light sourcedahili lighting veya external lighting according to accessories list
picture recording frequency / maximum100 Hz
code reading rate / maximum80 1/s
type of focusingManual adjustment on the lens
supply voltage, current consumption, power loss
rated value24 V
19,2... 28,8 V
typical0,2 A
maximum2 A
buffering time / in the event of power failure / minimum0,01 s
mechanical data
materialDie-cast aluminum
colorpetrol blue
ambient conditions
during operation50 °C
during storage-30... +70 °C
during transport-30... +70 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP67
shock resistanceAccording to IEC 60068-2
shock acceleration300 m/s²
vibrational acceleration40 m/s²
design, dimensions and weights
width68 mm
height122 mm
depth45 mm
net weight0,55 kg
fastening method4 x M4 screws
product features, product functions, product components / general
display version7 LEDs
protocol / is supported / Media Redundancy Protocol (MRP)Yok
product function / of the PROFINET IO device / is supported / H-Sync forwardingYok
LLDPVar
PROFINET IO protocolVar
TCP/IPVar
SNMP v1Var
SNMP v2Yok
SNMP v3Yok
DCPVar
EtherNet/IP protocolYok
OPC UAYok
product feature / silicon-freeVar
standards, specifications, approvals
certificate of suitabilityCE, NuG suitable
MTBF66 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total177,46 kg
during manufacturing27,19 kg
during operation150,2 kg
after end of life0,07 kg
accessories
accessoriesmounting brackets, built-in ring lights, external ring lights, E-focus lens, C-mount lenses, protective barrels for lenses
Aksesuarlar 86
Siemens 6GF3540-0CD10 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GF3400-0LT01-7BA1 | Aksesuar | |
| 6GF3400-0LT01-8DA1 | Aksesuar | |
| 6GF3440-8BC4 | Aksesuar · Cables · serial cable | |
| 6GF3440-8CA | Aksesuar | |
| 6GF3440-8CD01 | Aksesuar | |
| 6GF3500-8BA11 | Aksesuar · Cables · network cable electrical | |
| 6GF3500-8BA12 | Aksesuar · Cables · network cable electrical | |
| 6GF3500-8BA21 | Aksesuar · Cables · network cable electrical | |
| 6GF3500-8BA41 | Aksesuar · Cables · network cable electrical | |
| 6GF3500-8BD10 | Aksesuar · Cables · serial cable | |
| 6GF3500-8CD | Aksesuar | |
| 6GF3500-8DF30-1DA0 | Aksesuar | |
| 6GF3500-8DF30-2DA0 | Aksesuar | |
| 6GF3500-8DF30-3DA0 | Aksesuar | |
| 6GF3540-8AC03 | Aksesuar | |
| 6GF3540-8AC11 | Aksesuar | |
| 6GF3540-8AC12 | Aksesuar | |
| 6GF3540-8AC21 | Aksesuar | |
| 6GF3540-8AC22 | Aksesuar | |
| 6GF3540-8AC31 | Aksesuar | |
| 6GF3540-8AC32 | Aksesuar | |
| 6GF3540-8AC41 | Aksesuar | |
| 6GF3540-8AC42 | Aksesuar | |
| 6GF3540-8AC51 | Aksesuar | |
| 6GF3540-8AC52 | Aksesuar | |
| 6GF3540-8DA04 | Aksesuar | |
| 6GF3540-8DA11 | Aksesuar | |
| 6GF3540-8DA12 | Aksesuar | |
| 6GF3540-8DA13 | Aksesuar | |
| 6GF3540-8DA33 | Aksesuar | |
| 6GF3540-8DA41 | Aksesuar | |
| 6GF3540-8DA42 | Aksesuar | |
| 6GF3540-8EA01-0LL0 | Aksesuar | |
| 6GF3540-8EA02-0LL0 | Aksesuar | |
| 6GF3540-8EA03-0LL0 | Aksesuar | |
| 6GF3540-8EA04-0LL0 | Aksesuar | |
| 6GF3540-8EA05-0LL0 | Aksesuar | |
| 6GF3560-8EA01-0FF0 | Aksesuar | |
| 6GF3560-8EA02-0FF0 | Aksesuar | |
| 6GF3560-8EA03-0FF0 | Aksesuar | |
| 6GF9001-1BB01 | Aksesuar | |
| 6GF9001-1BE01 | Aksesuar | |
| 6GF9001-1BF01 | Aksesuar | |
| 6GF9001-1BG01 | Aksesuar | |
| 6GF9001-1BH01 | Aksesuar | |
| 6GF9001-1BJ01 | Aksesuar | |
| 6GF9001-1BK01 | Aksesuar | |
| 6GF9001-1BL01 | Aksesuar | |
| 6GF9002-7AD | Aksesuar | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1BB11-2AA0 | Aksesuar | |
| 6XV1870-8AE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN15 | Aksesuar · Cables · network cable electrical | |
| 6GT2002-0JE10 | Genişletme · Identification systems · RFID | |
| 6GT2002-0JE20 | Genişletme · Identification systems · RFID | |
| 6GT2002-0JE40 | Genişletme · Identification systems · RFID | |
| 6GT2002-0JE50 | Genişletme · Identification systems · RFID | |
| 6GT2002-0JE60 | Genişletme · Identification systems · RFID | |
| 6GT2002-0LA00 | Genişletme · Identification systems · RFID | |
| 6GT2002-0GA10 | Genişletme · Identification systems · RFID | |
| 6GT2002-0HD01 | Genişletme · Identification systems · RFID | |
| 6GT2002-0EE20 | Genişletme · Identification systems · RFID |
