Detayları Gör
Siemens
6GF3326-0HT01
MFR #6GF3326-0HT01
SKU #YLSQNBXRUOOGWDE
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

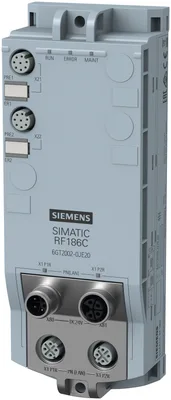

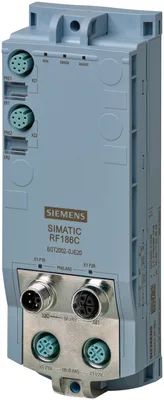

Siemens 6GT2002-0JE20
halefi 6GT2002-0JE22 başlatma of teslimat planned için 08/27 RF186C için PROFINET, Ethernet, EtherNet/IP, OPC/UA, 2 readers can be connected
product brand nameSIMATIC RF
transfer rate / for Industrial Ethernet100 Mbit/s
number of readers / connectable2
of Industrial Ethernet interfaceM12, d-coded
for supply voltageM12, L-coded
number of digital inputs0
Ürün Hakkında
halefi 6GT2002-0JE22 başlatma of teslimat planned için 08/27 RF186C için PROFINET, Ethernet, EtherNet/IP, OPC/UA, 2 readers can be connected
Siemens 6GT2002-0JE20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
suitability for operationIE / PN network together with RF200/300/1000 MV300/400/500
transfer rate
transfer rate / for Industrial Ethernet100 Mbit/s
transfer rate / at the point-to-point connection / serial / maximum921,6 kbit/s
interfaces
design of the interface / for point-to-point connectionRS422/RS232
number of readers / connectable2
of Industrial Ethernet interfaceM12, d-coded
for supply voltageM12, L-coded
design of the interface / to the reader / for communicationM12, 8-pin
number of digital inputs0
number of digital outputs0
mechanical data
materialThermoplastic (Valox 467, fiberglass reinforced)
colorAl-grey 2001
tightening torque / of the screw for securing the equipment / maximum3 N·m
supply voltage, current consumption, power loss
rated value24 V
20,4... 28,8 V
at DC / at 24 V / without connected devices / typical0,13 A
from supply voltage 1L+ / maximum4 A
continuous current / for loop-through to further bus nodes / at DC / maximum12 A
ambient conditions
during operation-25... +55 °C
during storage-40... +70 °C
during transport-40... +70 °C
protection class IPIP67
shock resistanceaccording to IEC 60068-2-27 ve IEC 60068-2-6
shock acceleration300 m/s²
vibrational acceleration40 m/s²
design, dimensions and weights
width60 mm
height45 mm
depth165 mm
net weight0,26 kg
fastening method2 M4 screws
wire length / for RS 422 interface / maximum1000 m
product features, product functions, product components / general
display version2 LEDs per reader connection, 3 LEDs for device status, 2 LEDs for Ethernet ports
protocol / is supported / Media Redundancy Protocol (MRP)Var
product function / of the PROFINET IO device / is supported / H-Sync forwardingYok
product function / addressable transponder file handlerYok
LLDPVar
PROFINET IO protocolVar
TCP/IPVar
SNMP v1Var
SNMP v2Yok
SNMP v3Var
DCPVar
EtherNet/IP protocolVar
OPC UAVar
product feature / silicon-freeVar
product functions / management, configuration, engineering
type of parameterizationHSP, GSDML, EDS, TO, WBM
type of programmingID profile, library with functions, FB 45, OPC UA, XML
type of computer-switched communicationacyclic communication, communication via process image, TCP/IP
standards, specifications, approvals
certificate of suitabilityCE, FCC, cULus, PNO: Conformance Class B, Netload Class (SL1) III, OPC UA: Embedded UA Server Profile
IECExYok
MTBF70 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total101,43 kg
during manufacturing16 kg
during operation85,3 kg
after end of life0,13 kg
