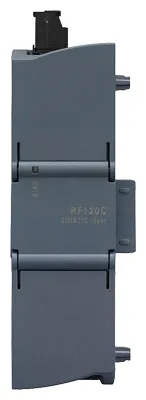

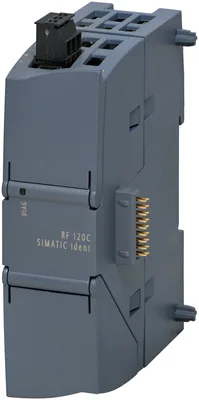

Siemens 6GT2002-0LA00
halefi cihaz 6GT2002-0LE40 (RF128C) RF120C için SIMATIC S7-1200; 1 reader connectable; RS-422 veya RS232.
product brand nameSIMATIC RF
number of readers / connectable1
of the backplane busS7-1200 backplane bus
for supply voltageScrew terminals
materialXantar MX 1094
colorTi-grey 24L01
Ürün Hakkında
halefi cihaz 6GT2002-0LE40 (RF128C) RF120C için SIMATIC S7-1200; 1 reader connectable; RS-422 veya RS232.
Siemens 6GT2002-0LA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
suitability for operationSIMATIC S7-1200 together with RF200/300/1000, MV300/400/500, MOBY D/U
transfer rate
transfer rate / at the point-to-point connection / serial / maximum115,2 kbit/s
interfaces
design of the interface / for point-to-point connectionRS422/RS232
number of readers / connectable1
of the backplane busS7-1200 backplane bus
for supply voltageScrew terminals
design of the interface / to the reader / for communicationsub-D, 9-pin, female
mechanical data
materialXantar MX 1094
colorTi-grey 24L01
tightening torque / of the screw for securing the equipment / maximum0,45 N·m
supply voltage, current consumption, power loss
rated value24 V
20... 30 V
at DC / at 24 V / without connected devices / typical0,03 A
from supply voltage 1L+ / maximum1 A
ambient conditions
during operation0... 55 °C
during storage-40... +70 °C
during transport-40... +70 °C
protection class IPIP20
shock resistanceAccording to IEC 61131-2
shock acceleration300 m/s²
vibrational acceleration100 m/s²

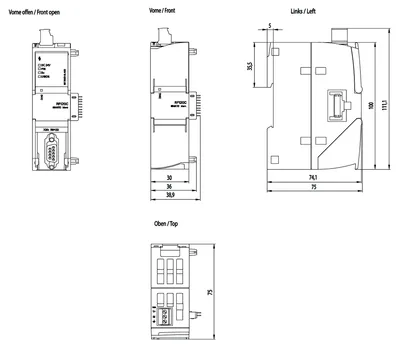

design, dimensions and weights
width30 mm
height100 mm
depth75 mm
net weight0,15 kg
fastening methodS7-1200 rack
wire length / for RS 422 interface / maximum1000 m
product features, product functions, product components / general
display version4 LEDs for reader connection, 1 LED for device status
product function / addressable transponder file handlerYok
S7 communicationVar
product functions / management, configuration, engineering
type of parameterizationHSP, TO
type of programmingID profile, library with functions
type of computer-switched communicationacyclic communication
standards, specifications, approvals
certificate of suitabilityCE, FCC, cULus, KCC, C-Tick, FM
IECExVar
for IECEx / as markingEx: II 3G Ex nAA IIC T4 Gc
MTBF196 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total35,75 kg
during manufacturing16 kg
during operation19,62 kg
after end of life0,13 kg
Aksesuarlar 43
Siemens 6GT2002-0LA00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6XV1878-2A | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical |
