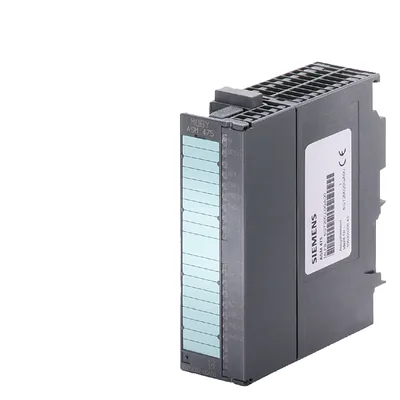

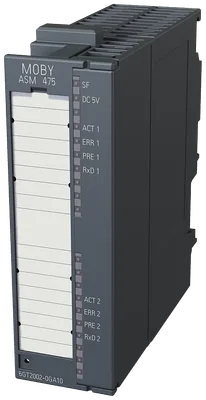

Siemens 6GT2002-0GA10
See SIOS ID: 109809890 and 67384964 MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector).
product brand nameSIMATIC RF
number of readers / connectable2
of the backplane busS7-300 backplane bus
of the PROFIBUS interface(according to the head module)
of Industrial Ethernet interface(according to the head module)
for supply voltageScrew-type veya spring-loaded terminals
Ürün Hakkında
See SIOS ID: 109809890 and 67384964 MOBY communications module ASM475 for SIMATIC S7 300 and ET200M parameterizable (without front connector).
Siemens 6GT2002-0GA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
suitability for operationSIMATIC S7-300, ET200M together with RF200/300, MV400/500, MOBY D/E/I/U
transfer rate
transfer rate / at the point-to-point connection / serial / maximum115,2 kbit/s
interfaces
design of the interface / for point-to-point connectionRS422
number of readers / connectable2
of the backplane busS7-300 backplane bus
of the PROFIBUS interface(according to the head module)
of Industrial Ethernet interface(according to the head module)
for supply voltageScrew-type veya spring-loaded terminals
design of the interface / to the reader / for communicationScrew-type veya spring-loaded terminals
mechanical data
materialNoryl
coloranthracite
supply voltage, current consumption, power loss
rated value24 V
20... 30 V
at DC / at 24 V / without connected devices / typical0,1 A
from supply voltage 1L+ / maximum1 A
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
protection class IPIP20
shock resistanceAccording to IEC 61131-2
shock acceleration150 m/s²
vibrational acceleration10 m/s²

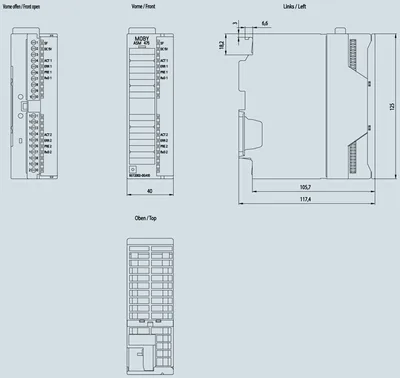

design, dimensions and weights
width40 mm
height125 mm
depth120 mm
net weight0,2 kg
fastening methodS7-300 rack
wire length / for RS 422 interface / maximum1000 m
product features, product functions, product components / general
display version4 LEDs per reader connection, 2 LEDs for device status
product function / addressable transponder file handlerVar
S7 communicationVar
product functions / management, configuration, engineering
type of parameterizationObject manager, GSD
type of programmingFB 45, FB 55, FC 56 (FC 45/55 with limited functionality)
type of computer-switched communicationacyclic communication
standards, specifications, approvals
certificate of suitabilityCE, FCC, UL/CSA
product function / is supported / identification linkYok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total81,81 kg
during manufacturing16 kg
during operation65,68 kg
after end of life0,13 kg
accessories
accessoriesFront connector with screw-type veya spring-loaded terminals
