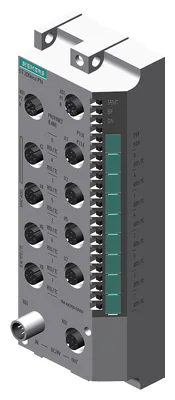

Siemens 6ES7144-6KD50-0AB0
*** yedek parça *** SIMATIC DP, ET 200eco PN, 8 AI RTD/TC; 8x M12, koruma sınıfı IP67
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Nominal değer (DC)24 V
Ters polarite korumasıVar; against destruction
Current consumption, typ.110 mA
Güç kaybı, tipik2,8 W
Ürün Hakkında
*** yedek parça *** SIMATIC DP, ET 200eco PN, 8 AI RTD/TC; 8x M12, koruma sınıfı IP67
Siemens 6ES7144-6KD50-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Besleme gerilimi
Nominal değer (DC)24 V
Ters polarite korumasıVar; against destruction
power supply according to NEC Class 2 requiredVar
Giriş akımı
Current consumption, typ.110 mA
Güç kaybı
Güç kaybı, tipik2,8 W
Analog girişler
Analog giriş sayısı8
For resistance/resistance thermometer measurement8
For thermocouple measurement8
Giriş aralıkları (nominal değerler), gerilim
-80 mV to +80 mVVar
Input ranges (rated values), thermocouples
Type EVar
Type JVar
Type KVar
Type NVar
Input ranges (rated values), resistance thermometer
Ni 100Var
Ni 1000Var
Ni 120Var
Ni 200Var
Ni 500Var
Pt 100Var
Pt 1000Var
Pt 200Var
Pt 500Var
Input ranges (rated values), resistors
0 to 150 ohmsVar
0 to 300 ohmsVar
0 to 600 ohmsVar
0 to 3000 ohmsVar
Temperature compensation
— ParametrelenebilirVar
— internal temperature compensationVar
— external temperature compensation with Pt100Var
— external temperature compensation with compensations socketVar
— dynamic reference temperature valueVar
— for definable comparison point temperatureVar
Kablo uzunluğu
Ekranlı, maks.30 m
Analog value generation for the inputs
Analog value displaySIMATIC S7 format
Measurement principleintegrating
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar
Integration time (ms)2/16,67/20/100 ms
Interference voltage suppression for interference frequency f1 in Hz500 / 60 / 50 / 10 Hz
Dönüşüm süresi (kanal başına)4 / 19 / 22 / 102 ms
Smoothing of measured values
parameterizableVar
Step: NoneVar; 1x cycle time
Step: lowVar; 4x cycle time
Step: MediumVar; 16x cycle time
Step: HighVar; 64x cycle time
Encoder
Number of connectable encoders, max.8
Connection of signal encoders
for resistance measurement with two-wire connectionVar
for resistance measurement with three-wire connectionVar
for resistance measurement with four-wire connectionVar
Errors/accuracies
Linearity error (relative to input range), (+/-)0,01 %
Temperature error (relative to input range), (+/-)RTD: 0,0005%/°C; TC: 0,0035%/°C
Crosstalk between the inputs, min.-85 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,008 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.46 dB
Common mode interference, min.70 dB
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1
Arayüz tipleri
Dahili switchVar
Servisler
— Önceliklendirilmiş başlatmaVar
M12 port
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
İletim hızı, maks.100 Mbit/s
Protokoller
PROFINET IO protokolünü desteklerVar
PROFINET CBAYok
PROFIsafeYok
Ortam yedekliliği
— MRPVar
Açık IE haberleşmesi
TCP/IPYok
SNMPVar
DCPVar
LLDPVar
pingVar
ARPVar
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar; green "ON" LED
Group errorVar; Red/yellow "SF/MT" LED
Overflow/UnderflowVar
Potential separation
between the load voltagesVar
between load voltage and all other switching componentsYok
between Ethernet and electronicsVar
Potential separation channels
Kanallar arasıYok
Permissible potential difference
Between the inputs and MANA (UCM)10 Vpp AC
tested with
24 V DC circuits707 V DC (type test)
Test voltage for interface, rms value [Vrms]1.500 V; According to IEEE 802,3
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65/67
Standartlar, onaylar, sertifikalar
Suitable for applications according to AMS 2750Var; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9Var; Based on AMS 2750 E
Use in hazardous areas
Explosion protection category for gasATEX gas explosion protection, Zone 2
Explosion protection category for dustATEX dust explosion protection, Zone 22
Connection method
Design of electrical connection4/5-pin M12 circular connectors
Ölçüler
Genişlik60 mm
Yükseklik175 mm
Derinlik49 mm
Ağırlık
Ağırlık, yaklaşık930 g
Aksesuarlar 82
Siemens 6ES7144-6KD50-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7194-6GA00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7194-6MA00-0AA0 | Aksesuar · Accessories | |
| 6ES7194-6CA00-0AA0 | Aksesuar · Connection module | |
| 6ES7194-6HB00-0AA0 | Aksesuar · Accessories | |
| 6ES7148-6CB00-0AA0 | Aksesuar · Voltage distributor | |
| 3RK1901-1KA00 | Aksesuar | |
| 3RK1901-1KA01 | Aksesuar | |
| 6GK1901-0DB20-6AA0 | Aksesuar | |
| 6GK1901-0DB20-6AA8 | Aksesuar | |
| 6GK1901-0DB10-6AA0 | Aksesuar | |
| 6GK1901-0DB10-6AA8 | Aksesuar | |
| 3RK1902-2DA00 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1840-3AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2D | Aksesuar · Cables · network cable electrical | |
| 6XV1840-4AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2L | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2S | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH50 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-2HB30 | Aksesuar | |
| 3RK1902-2HB50 | Aksesuar | |
| 3RK1902-2HC10 | Aksesuar | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-4DA00-5AA0 | Aksesuar | |
| 6GK1907-0DB10-6AA3 | Aksesuar | |
| 6XV1801-5DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN15 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH50 | Aksesuar · Cables · power cables | |
| 6GK1907-0DC10-6AA3 | Aksesuar | |
| 3RK1902-4CA00-4AA0 | Aksesuar | |
| 3RT2900-1SB10 | Yedek parça · Miscellaneous accessories · labeling plates |
