Siemens 6ES7144-6KD00-0AB0
*** yedek parça *** SIMATIC DP, ET 200eco PN, 8 AI (4 U/I+4 RTD/TC); 8x M12, koruma sınıfı IP67
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Nominal değer (DC)24 V
Ters polarite korumasıVar
Current consumption, typ.110 mA
Number of outputs4
Ürün Hakkında
*** yedek parça *** SIMATIC DP, ET 200eco PN, 8 AI (4 U/I+4 RTD/TC); 8x M12, koruma sınıfı IP67

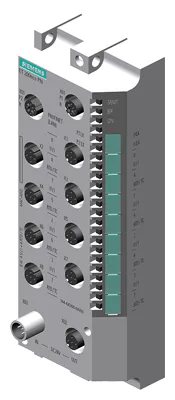

Siemens 6ES7144-6KD00-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0306H
Besleme gerilimi
Nominal değer (DC)24 V
Ters polarite korumasıVar
power supply according to NEC Class 2 requiredVar
Giriş akımı
Current consumption, typ.110 mA
Encoder supply
Number of outputs4
24 V enkoder beslemesi
Short-circuit protectionVar; Electronic 1,4 A
Output current, max.1 A
Güç kaybı
Güç kaybı, tipik2,8 W
Analog girişler
Analog giriş sayısı8
For voltage/current measurement4
For resistance/resistance thermometer measurement4
permissible input voltage for voltage input (destruction limit), max.28,8 V permanent, 35 V for maks. 500 ms
Giriş aralıkları (nominal değerler), gerilim
0 … +10 VVar
1 V to 5 VVar
-10 V to +10 VVar
-80 mV to +80 mVVar
Input ranges (rated values), currents
0 … 20 mAVar
-20 mA to +20 mAVar
4 mA to 20 mAVar
Input ranges (rated values), thermocouples
Type EVar
Type JVar
Type KVar
Type NVar
Input ranges (rated values), resistance thermometer
Ni 100Var
Ni 1000Var
Ni 120Var
Ni 200Var
Ni 500Var
Pt 100Var
Pt 1000Var
Pt 200Var
Pt 500Var
Input ranges (rated values), resistors
0 to 150 ohmsVar
0 to 300 ohmsVar
0 to 600 ohmsVar
0 to 3000 ohmsVar
Temperature compensation
— ParametrelenebilirVar
— internal temperature compensationVar
— external temperature compensation with compensations socketVar
Kablo uzunluğu
Ekranlı, maks.30 m
Analog value generation for the inputs
Analog value displaySIMATIC S7 format
Measurement principleintegrating
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.16 bit
Entegrasyon süresi, parametrelenebilirVar
Integration time (ms)2/16,67/20/100 ms
Interference voltage suppression for interference frequency f1 in Hz500 / 60 / 50 / 10 Hz
Dönüşüm süresi (kanal başına)4 / 19 / 22 / 102 ms
Smoothing of measured values
parameterizableVar
Step: NoneVar; 1x cycle time
Step: lowVar; 4x cycle time
Step: MediumVar; 16x cycle time
Step: HighVar; 64x cycle time
Encoder
Number of connectable encoders, max.8
Connection of signal encoders
for voltage measurementVar
for current measurement as 2-wire transducerVar
for current measurement as 4-wire transducerVar
for resistance measurement with two-wire connectionVar
for resistance measurement with three-wire connectionVar
for resistance measurement with four-wire connectionVar
Errors/accuracies
Linearity error (relative to input range), (+/-)0,01 %
Temperature error (relative to input range), (+/-)U: 0,0035%/°C; I:0,006%/°C; RTD: 0,0005%/°C; TC: 0,0035%/°C
Crosstalk between the inputs, min.85 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,008 %
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.46 dB
Common mode interference, min.70 dB
Arayüzler
Transmission procedure100BASE-TX
PROFINET arayüz sayısı1
Arayüz tipleri
M12 portVar
Dahili switchVar
Servisler
— IRT with the option "high flexibility"Var
— Önceliklendirilmiş başlatmaVar
M12 port
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
İletim hızı, maks.100 Mbit/s
Protokoller
PROFINET IO protokolünü desteklerVar
PROFINET CBAYok
PROFIsafeYok
Ortam yedekliliği
— MRPVar
Açık IE haberleşmesi
TCP/IPYok
SNMPVar
DCPVar
LLDPVar
pingVar
ARPVar
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Diagnoses
Diagnostic information readableVar
Monitoring the supply voltageVar; green "ON" LED
Short-circuit encoder supplyVar; per module
Group errorVar; Red/yellow "SF/MT" LED
Overflow/UnderflowVar
Potential separation
between the load voltagesVar
between load voltage and all other switching componentsYok
between Ethernet and electronicsVar
Potential separation channels
Kanallar arasıYok
Permissible potential difference
Between the inputs and MANA (UCM)10 Vpp AC
tested with
24 V DC circuits707 V DC (type test)
Test voltage for interface, rms value [Vrms]1.500 V; According to IEEE 802,3
Koruma derecesi ve sınıfı
IP koruma sınıfıIP65/67
Standartlar, onaylar, sertifikalar
Suitable for applications according to AMS 2750Var; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9Var; Based on AMS 2750 E
Use in hazardous areas
Explosion protection category for gasATEX gas explosion protection, Zone 2
Explosion protection category for dustATEX dust explosion protection, Zone 22
Connection method
Design of electrical connection4/5-pin M12 circular connectors

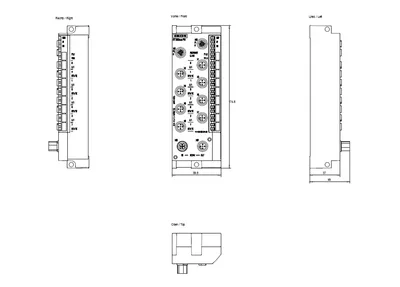

Ölçüler
Genişlik60 mm
Yükseklik175 mm
Derinlik49 mm
Ağırlık
Ağırlık, yaklaşık930 g
Aksesuarlar 82
Siemens 6ES7144-6KD00-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7194-6GA00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7194-6MA00-0AA0 | Aksesuar · Accessories | |
| 6ES7194-6CA00-0AA0 | Aksesuar · Connection module | |
| 6ES7194-6HB00-0AA0 | Aksesuar · Accessories | |
| 6ES7148-6CB00-0AA0 | Aksesuar · Voltage distributor | |
| 3RK1901-1KA00 | Aksesuar | |
| 3RK1901-1KA01 | Aksesuar | |
| 6GK1901-0DB20-6AA0 | Aksesuar | |
| 6GK1901-0DB20-6AA8 | Aksesuar | |
| 6GK1901-0DB10-6AA0 | Aksesuar | |
| 6GK1901-0DB10-6AA8 | Aksesuar | |
| 3RK1902-2DA00 | Aksesuar | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1840-3AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2D | Aksesuar · Cables · network cable electrical | |
| 6XV1840-4AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2F | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2L | Aksesuar · Cables · network cable electrical | |
| 6XV1871-2S | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8AN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-8GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1881-5AH50 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-2HB30 | Aksesuar | |
| 3RK1902-2HB50 | Aksesuar | |
| 3RK1902-2HC10 | Aksesuar | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 3RK1902-4DA00-5AA0 | Aksesuar | |
| 6GK1907-0DB10-6AA3 | Aksesuar | |
| 6XV1801-5DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN15 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH50 | Aksesuar · Cables · power cables | |
| 6GK1907-0DC10-6AA3 | Aksesuar | |
| 3RK1902-4CA00-4AA0 | Aksesuar | |
| 3RT2900-1SB10 | Yedek parça · Miscellaneous accessories · labeling plates |
İlgili Ürünler
Detayları Gör
Siemens
1FN3003-0PB03-0AA3
MFR #1FN3003-0PB03-0AA3
SKU #YLSPDCXX5LUPVBP
Detayları Gör
Siemens
1FN3003-0PB04-0BA3
MFR #1FN3003-0PB04-0BA3
SKU #YLSTLFTLVCKOIMT
Detayları Gör
Siemens
1FN3003-0PB05-0BA3
MFR #1FN3003-0PB05-0BA3
SKU #YLS6EWIJX1ZRGHO
Detayları Gör
Siemens
1FN3050-0TB00-1..0
MFR #1FN3050-0TB00-1..0
SKU #YLS5YVWHSMU6WB7
Detayları Gör
Siemens
1FN3050-2NE00-0EA3
MFR #1FN3050-2NE00-0EA3
SKU #YLSE7XSY2HLF5EC
Detayları Gör
Siemens
1FN3050-2NE00-0FA3
MFR #1FN3050-2NE00-0FA3
SKU #YLSMSUG5AP3INVD
Detayları Gör
Siemens
1FN3100-0TB00-1..0
MFR #1FN3100-0TB00-1..0
SKU #YLSTD7J4JZ8UCBX
Detayları Gör
Siemens
1FN3002-0TK03-1AF0
MFR #1FN3002-0TK03-1AF0
SKU #YLS7VTGYJAP381B
Detayları Gör
Siemens
1FN3050-1ND00-0HA3
MFR #1FN3050-1ND00-0HA3
SKU #YLSJTX7SVU4GFKR
Öne Çıkan Ürünler
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
İlgili Aramalar
Siemens 6ES7144-6KD00-0AB0 fiyatSiemens 6ES7144-6KD00-0AB0 teklif alSiemens 6ES7144-6KD00-0AB0 satın al6ES7144-6KD00-0AB0 fiyat6ES7144-6KD00-0AB0 stok durumuSiemens yedek parçaSiemens 6ES7144-6KD00-0AB0 muadilSiemens 6ES7144-6KD00-0AB0 teknik özellikler
