Siemens 6EP3322-6SB00-0AY0 için nasıl fiyat teklifi alabilirim?

Siemens 6EP3322-6SB00-0AY0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02CA46F ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6EP3322-6SB00-0AY0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6EP3322-6SB00-0AY0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6EP3322-6SB00-0AY0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

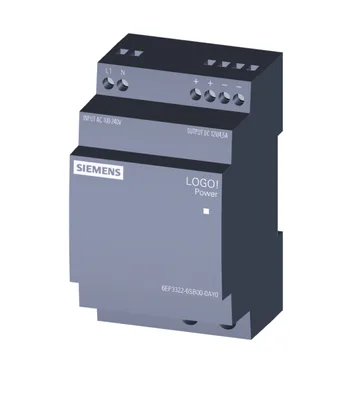

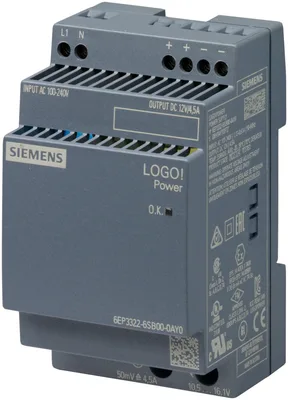

Siemens 6EP3322-6SB00-0AY0

LOGO!güç 12 V / 4,5 A stabilized güç kaynağı giriş: 100-240 V AC çıkış: 12 V DC / 4,5 A

SiemensMFR # 6EP3322-6SB00-0AY0SKU # CEY-8EF3B02CA46F

product brand nameLOGO!Power

product type designationLOGO!Power

product designationPower supply LOGO!Power

type of current supply12 V/4,5 A

type of the power supply network1-phase AC veya DC

phase number1

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

LOGO!güç 12 V / 4,5 A stabilized güç kaynağı giriş: 100-240 V AC çıkış: 12 V DC / 4,5 A

Siemens 6EP3322-6SB00-0AY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameLOGO!Power

product type designationLOGO!Power

product designationPower supply LOGO!Power

type of current supply12 V/4,5 A

input

type of the power supply network1-phase AC veya DC

phase number1

voltage curve at inputAC/DC

minimum rated value100 V

maximum rated value240 V

initial value85 V

full-scale value264 V

input voltage at DC110... 300 V

at 50 Hz240 V

at 60 Hz100 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

overvoltage overload capability300 V AC for 1 s

buffering time for rated value of the output current in the event of power failure minimum40 ms

operating condition of the mains bufferingVin = 187 V

at rated input voltage 120 V1,13 A

at rated input voltage 230 V0,61 A

current limitation of inrush current at 25 °C maximum50 A

I2t value maximum3 A²·s

fuse protection typeinternal

fuse protection type in the feederRecommended miniature circuit breaker: from 10 A characteristic B veya from 6 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

output voltage at DC rated value12 V

at output 1 at DC rated value12 V

at output 1 at DC12 V

output voltage adjustableVar; via potentiometer

adjustable output voltage10,5... 16,1 V

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,1 %

on slow fluctuation of ohm loading0,1 %

maximum200 mV

typical30 mV

maximum300 mV

typical50 mV

display version for normal operationGreen LED for output voltage OK

behavior of the output voltage when switching onYok overshoot of Vout (soft start)

response delay maximum0,5 s

typical100 ms

rated value4,5 A

rated range0... 4,5 A; +55... +70 °C: Derating 2%/K

supplied active power typical54 W

bridging of equipmentVar

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent87,1 %

at rated output voltage for rated value of the output current typical8 W

during no-load operation maximum0,3 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,2 %

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical4 %

load step 10 to 90% typical1 ms

load step 90 to 10% typical1 ms

protection and monitoring

design of the overvoltage protection< 60 V

property of the output short-circuit proofVar

design of short-circuit protectionConstant current characteristic

typical5 A

when switching on150% Iout rated tipik 200 ms

in normal operationoverload capability 150% Iout rated tipik 200 ms

maximum5 A

measuring point for output currentVar; 50 mV =^ 4,5 A

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass II (without protective conductor)

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationnot applicable

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 Yok. 60950), File E151273, NEC class 2 (acc. to UL 1310)

EAC approvalVar

NEC Class 2Var; according to UL1310, File E151273

SEMI F47Var

CB-certificateVar

MTBF at 40 °C2.566.680 h

standards, specifications, approvals hazardous environments

IECExYok

ATEXYok

ULhazloc approvalYok

FM registrationYok

standards, specifications, approvals marine classification

shipbuilding approvalVar

American Bureau of Shipping Europe Ltd. (ABS)Var

French marine classification society (BV)Var

Det Norske Veritas (DNV)Var

Lloyds Register of Shipping (LRS)Var

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total222,9 kg

during manufacturing3,8 kg

during operation218,9 kg

after end of life0,14 kg

Siemens eco profile (SEP)Siemens EcoTech

ambient conditions

during operation-25... +70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL, N: 1 screw terminal her biri for 0,5... 2,5 mm2 single-core/finely stranded

at output+, -: 1 screw terminal her biri for 0,5... 2,5 mm²

for auxiliary contacts-

mechanical data

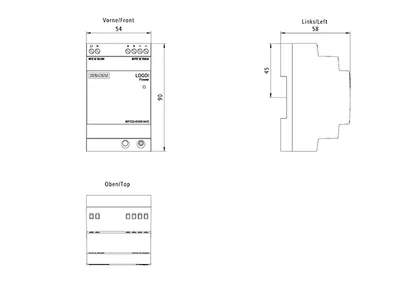

width × height × depth of the enclosure54 × 90 × 53 mm

installation width × mounting height54 mm × 130 mm

top20 mm

bottom20 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15, direct mounting in different mounting positions

DIN-rail mountingVar

S7 rail mountingYok

wall mountingVar

housing can be lined upVar

net weight0,2 kg

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing3,8 kg

global warming potential [CO2 eq] / during operation218,9 kg

global warming potential [CO2 eq] / after end of life0,14 kg

global warming potential [CO2 eq] / total222,9 kg

Aksesuarlar 1

Siemens 6EP3322-6SB00-0AY0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6EP4346-7RB00-0AX0	Aksesuar · Redundancy module · #NO_DATA#
