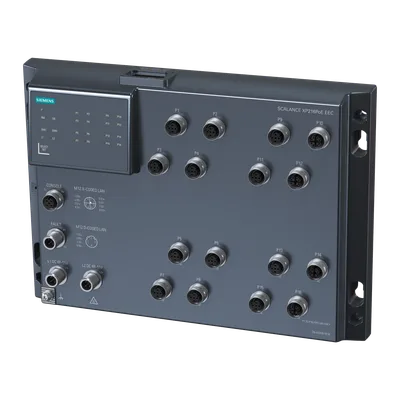

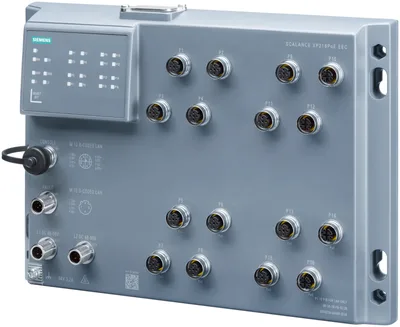

Siemens 6GK5216-0UA00-5ES6
SCALANCE XP216PoE EEC, managed IE switch, with railway approval IEC 62443-4-2 certified; (EN 50155, EN45545); 12x 10/100 Mbit/s M12 ports, 4x 10/100/1000 Mbit/s M12 ports IP65, LED diagnostics, error signaling contact, redundant power supply, PROFINET IO device, network management, can be operated in redundant ring, incl. dust caps, including electronic manual on CD-ROM, C-PLUG optional.
product brand nameSCALANCE
product type designationXP216PoE EEC
transfer rate10, 100, 1000 Mbit/s
with PoE6
with PoE2
for operator console1
About This Product
SCALANCE XP216PoE EEC, managed IE switch, with railway approval IEC 62443-4-2 certified; (EN 50155, EN45545); 12x 10/100 Mbit/s M12 ports, 4x 10/100/1000 Mbit/s M12 ports IP65, LED diagnostics, error signaling contact, redundant power supply, PROFINET IO device, network management, can be operated in redundant ring, incl. dust caps, including electronic manual on CD-ROM, C-PLUG optional.
Siemens 6GK5216-0UA00-5ES6
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXP216PoE EEC
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment16; M12
number of 10/100 Mbit/s M12-ports (D-coded)6
with PoE6
number of 10/100/1000 Mbit/s M12-ports (X-coded)2
with PoE2
interfaces / other
for operator console1
for signaling contact1
for power supply2
for operator console5-pole M12 socket (A-coded)
for signaling contact5-pole M12 plug (B-coded)
for power supply4-pole M12 plug (A-coded)
C-PLUGYes
product function / device replacement with replacement of the storage mediumYes
at DC / rated value54 V
at DC / maximum0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
per port / maximum30 W
total / maximum120 W
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value54 V; XP-200EEC with EN 50155 supports the voltage range 46 ... 57 V DC
power loss [W] / 1 / rated value13 W
consumed current / 1 / at rated supply voltage / maximum2.5 A
supply voltage / 1 / voltage range46 ... 57
consumed current / 1 / maximum2.5 A
type of electrical connection / 1 / for power supply4-pole M12 plug (A-coded)
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltage5 A / 60 V
ambient conditions
during operation-40 ... +70 °C
during storage-40 ... +70 °C
during transport-40 ... +70 °C
noteEEC variants with EN 50155 support for 10 minutes: -40 °C ... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP65

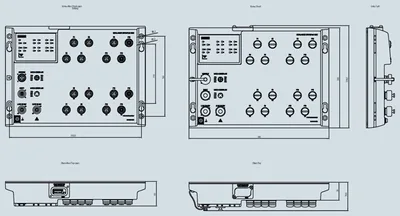

design, dimensions and weights
designcompact
width280 mm
height200 mm
depth49 mm
net weight2.5 kg
product feature / conformal coatingYes
material / of the enclosureAluminum
fastening methodET200pro module carrier
wall mountingYes
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
QoS according to DSCPYes
Cut Through switching methodNo
Store & Forward switching methodYes
product functions / management, configuration, engineering
CLIYes
web-based managementYes
MIB supportYes
TRAPs via emailYes
configuration with STEP 7Yes
RMONYes
SMTP serverNo
port mirroringYes
multiport mirroringYes
CoSYes
with IRT / PROFINET IO switchNo
PROFINET IO diagnosisYes
switch-managedYes
PROFINET conformity classB
network load class / according to PROFINETII
telegram length / for Ethernet / maximum1518 byte
TelnetYes
HTTPYes
HTTPSYes
TFTPYes
SFTPYes
BOOTPYes
GMRPYes
DCPYes
LLDPYes
EtherNet/IPYes
SNMP v1Yes
SNMP v2Yes
SNMP v3Yes
IGMP (snooping/querier)Yes
I&M0 - device-specific informationYes
I&M1 - higher level designation/location designationYes
product functions / diagnostics
port diagnosticsYes
statistics Packet SizeYes
statistics packet typeYes
error statisticsYes
SysLogYes
product functions / VLAN
VLAN - port basedYes
VLAN - protocol-basedNo
VLAN - IP-basedNo
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP serverYes
DHCP clientYes
DHCP Option 82Yes
DHCP Option 66Yes
DHCP Option 67Yes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yes
media redundancy protocol (MRP) with redundancy managerYes
Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode
of the PROFINET IO device / is supported / H-Sync forwardingYes
of the PROFINET IO device / is supported / PROFINET system redundancyYes
ring redundancyYes
high speed redundancy protocol (HRP) with redundancy managerYes
high speed redundancy protocol (HRP) with standby redundancyYes
redundancy procedure STPYes
redundancy procedure RSTPYes
redundancy procedure RSTP+Yes
redundancy procedure MSTPYes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
passive listeningYes
system modification during operation
product function / configuration in RUN via CiR/H-CiRYes
product functions / security
IEEE 802.1x (radius)Yes
RADIUS clientYes
broadcast/multicast/unicast limiterYes
broadcast blockingYes
SSHYes
SSLYes
product functions / time
SICLOCK supportYes
NTP-clientYes
SNTP clientYes
NTPYes
SNTPYes
standards, specifications, approvals
CE markingYes
UKCA markingYes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
railway application in accordance with EN 50155Yes; OT4, ST1, H1, S2, C1, L4, PC2
railway application in accordance with EN 50121-4Yes
railway application in accordance with EN 50124-1Yes
fire protection in accordance with EN 45545-2Yes; Class HL1 - HL3
RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total417.94 kg
during manufacturing61.47 kg
during operation356.2 kg
after end of life0.27 kg
product functions / general
MTBF29 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing61.47 kg
global warming potential [CO2 eq] / during operation356.2 kg
global warming potential [CO2 eq] / after end of life0.27 kg
global warming potential [CO2 eq] / total417.94 kg
