How can I get a price quote for Siemens 6XV1801-2B?

You can request a fast quote for Siemens 6XV1801-2B from Yılsa Engineering. Reference part number YLSATOJZ5INS1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1801-2B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1801-2B genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1801-2B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

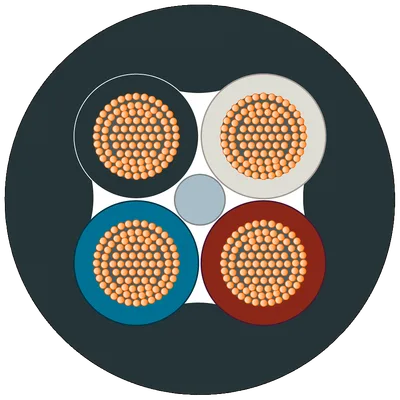

Siemens 6XV1801-2B

Energy cable, 4-core power line, stranded wire, 4x 1.5 mm2, trailable Delivery unit: max. 1000 m, minimum order quantity 20 m sold by the meter

SiemensMFR # 6XV1801-2BSKU # YLSATOJZ5INS1

product brand nameSIMATIC NET

suitability for useconnection of 24 V power supply

cable designationLIYY 4X1X1.5 BK

operating voltage / RMS value600 V

number of electrical cores4

of inner conductor1.6 mm

Have questions?Chat on WhatsApp

About This Product

Energy cable, 4-core power line, stranded wire, 4x 1.5 mm2, trailable Delivery unit: max. 1000 m, minimum order quantity 20 m sold by the meter

Siemens 6XV1801-2B

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useconnection of 24 V power supply

cable designationLIYY 4X1X1.5 BK

electrical data

operating voltage / RMS value600 V

conductor cross section / of the power line1.5 mm²

continuous current / of the power lines15 A; at 40°C according to DIN VDE 0891-1 (17 A at 20°C according to DIN VDE 0891-1)

mechanical data

number of electrical cores4

of inner conductor1.6 mm

of the wire insulation2.3 mm

of cable sheath7.7 mm

symmetrical tolerance of the outer diameter / of cable sheath0.3 mm

conductor class5

of the conductorCU, blank

of the wire insulationPVC

of cable sheathPVC

product component / PE connectionNo

marking / of coresColor

of the power line insulationbrown / white / blue / black

of cable sheathBlack

with single bend / minimum permissible31 mm

with multiple bends / minimum permissible62 mm

with continuous bending62 mm

number of bending cycles2000000

tensile load / maximum100 N

weight per length97 kg/km

ambient conditions

during operation-20 ... +90 °C

during storage-30 ... +90 °C

during transport-30 ... +90 °C

during installation-20 ... +90 °C

ambient condition / for operationtemperature range for permanent installation -30 °C to 90 °C

fire behaviorFlame-resistant acc. to IEC 60332-1-2

class of burning behaviour / according to EN 13501-6Eca

to mineral oilOil resistant according to EN 50290-2-22 (VDE 0819), compound type TM55 (7x24h/90 °C)

to greaseConditional resistance

to waterresistant according to UL 758 (75°C)

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; c(ETL)us 3047254 CM 75°C

UL/ETL style / 600 V RatingYes; E502506 AWM STYLE 21216 90°C

certificate of suitabilitywet-resistant according to UL Style 22374

EAC approvalYes

RoHS conformityYes

Accessories 8

Genuine accessories that can be used with the Siemens 6XV1801-2B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK1906-0EA00	Aksesuar
6GK1906-0EB00	Aksesuar
6GK1907-0AB11-6AA0	Aksesuar
6GK1907-0DB10-6AA3	Aksesuar
6GK1907-0DC00-6AA5	Aksesuar
6GK1907-0DC10-6AA3	Aksesuar
6GK1908-0DB10-6AA0	Aksesuar
6GK1908-0DC10-6AA0	Aksesuar
