How can I get a price quote for Siemens 6XV1876-2B?

You can request a fast quote for Siemens 6XV1876-2B from Yılsa Engineering. Reference part number YLSK4U1VP41ZLQS. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1876-2B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1876-2B genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1876-2B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1876-2B

IE FC TP Flexible Cable GP 4x2 FastConnect Flexible Cable GP 4x 2, TP installation CAT7 cable for connection to IE FC RJ45 plug 4x 2 and IE FC M12 plug PRO 4x2, AWG26, sold by the meter, delivery unit max. 3000 m minimum order quantity 20 m

SiemensMFR # 6XV1876-2BSKU # YLSK4U1VP41ZLQS

product brand nameSIMATIC NET

at 10 MHz / maximum0.088 dB/m

at 100 MHz / maximum0.285 dB/m

at 300 MHz / maximum0.513 dB/m

at 600 MHz / maximum0.751 dB/m

at 1 MHz ... 100 MHz100 Ω

Have questions?Chat on WhatsApp

About This Product

Siemens 6XV1876-2B

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useFlexible cable for quick assembly, for occasionally moving machine parts

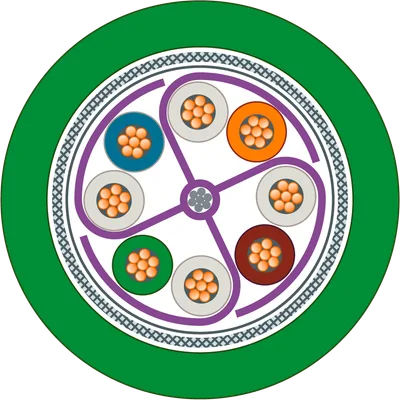

cable designationSF/FTP, 02YSCY 4X2X0.5/1.15-100 LI PIMF GN

electrical data

at 10 MHz / maximum0.088 dB/m

at 100 MHz / maximum0.285 dB/m

at 300 MHz / maximum0.513 dB/m

at 600 MHz / maximum0.751 dB/m

at 1 MHz ... 100 MHz100 Ω

at 10 MHz0.78 dB/m

at 100 MHz0.724 dB/m

at 300 MHz0.653 dB/m

at 600 MHz0.608 dB/m

loop resistance per length / maximum290 mΩ/m

RMS value100 V

maximum100 V

NVP value in percent69 %

mechanical data

number of electrical cores8

design of the shieldSF/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires, central shielding wire of the line must be connected to the shield contact during plug assembly (see assembly video)

type of electrical connection / FastConnectYes

of AWG26 insulated conductor0.47 mm

of inner conductor0.47 mm

of the wire insulation1.15 mm

of cable sheath8 mm

symmetrical tolerance of the outer diameter / of cable sheath0.2 mm

of the wire insulationpolyethylene (PE)

of cable sheathPVC

of the insulation of data wireswhite-blue/blue, white-orange/orange, white-green/green, white-brown/brown

of cable sheathgreen

with single bend / minimum permissible40 mm

with multiple bends / minimum permissible80 mm

tensile load / maximum100 N

weight per length65 kg/km

ambient conditions

during operation-30 ... +70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

during installation-30 ... +70 °C

ambient condition / for operationtemperature range for permanent installation -40 °C to +70 °C

fire behaviorflame resistant according to IEC 60332-1-2

class of burning behaviour / according to EN 13501-6Eca

to mineral oiloil resistant according to EN 50290-2-22 (VDE 0819), compound type TM55 (7x24h/90 °C)

to greaseConditional resistance

to waterconditional resistance

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

PoE capabilityYes

PoE+ capabilityYes

PoE++ capabilityYes

silicon-freeYes

with 100BaseTX90 m

with 1000BaseT90 m

for 10GBase T75 m

for 2.5GBaseT100 m

for 5GBaseT100 m

at AC / core-to-core2000 V

at AC / core shield2000 V

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; c(ETL)us 3047254 CM 75°C

UL/ETL style / 600 V RatingYes; E502506 cRUus AWM 21695 I A/B 80°C 600V FT2

EAC approvalYes

CE markingYes

RoHS conformityYes

ANSI/TIA-EIA 568-B.2 Cat.5eYes

IEC 61784-5-2-CP 2/2 (Ethernet/IP)Yes

standard for structured cablingCat7

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

Accessories 4

Genuine accessories that can be used with the Siemens 6XV1876-2B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
