How can I get a price quote for Siemens 6ES7924-0CC20-0AC0?

You can request a fast quote for Siemens 6ES7924-0CC20-0AC0 from Yılsa Engineering. Reference part number CEY-8EF3B0386EA6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7924-0CC20-0AC0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7924-0CC20-0AC0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7924-0CC20-0AC0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

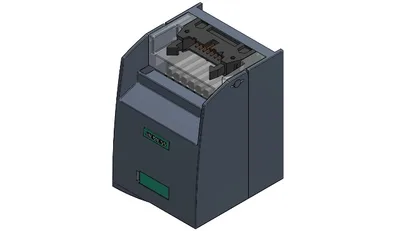

Siemens 6ES7924-0CC20-0AC0

Connection module TPA 3-tier for analog Modules of the SIMATIC S7-1500 Type: Push-in terminal without LED, VPE=1 unit 16 pole IDC connector f. cable

SiemensMFR # 6ES7924-0CC20-0AC0SKU # CEY-8EF3B0386EA6

target systemSIMATIC S7-1500

suitability for useAnalog I/O modules

product brand nameSIMATIC Top connect

product type designationFully modular connection

product designationConnection module

at DC / rated value24 V

Have questions?Chat on WhatsApp

About This Product

Connection module TPA 3-tier for analog Modules of the SIMATIC S7-1500 Type: Push-in terminal without LED, VPE=1 unit 16 pole IDC connector f. cable

Siemens 6ES7924-0CC20-0AC0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

target systemSIMATIC S7-1500

suitability for useAnalog I/O modules

product brand nameSIMATIC Top connect

product type designationFully modular connection

product designationConnection module

electrical data

at DC / rated value24 V

rated value50 V

at DC / maximum50 V

ampacity / per pin / maximum1 A

continuous current / at DC / per signal cable / maximum1 A

product function / infeed functionYes

PE connectionNo

shield connectionNo

disconnectorNo

product feature / cross-connectableNo

connection method

number of terminals30; Intended for analog

type of connecting terminalpush-in

position / of the terminalTop

number of terminal levels1

design of terminal / terminal levels internally linkedNo

type of electrical connection / for connecting cablePlug-in connection

number of poles / at the 1st interface16; IDC connector with installed strain relief for the connecting cable

number of the plug contacts / of the electrical connection1

wire length / maximum30 m; between front connector module and Connection module

type of connectable conductor cross-sections / solidNo

for flexible conductor / with core end processing0.2 ... 2.5 mm²; End sleeve according to DIN 46228/1 or DIN 46228/4 with plastic collar

stranded0.2 ... 2.5 mm²

finely stranded / without core end processing0.2 ... 2.5 mm²

finely stranded / with core end processing0.2 ... 2.5 mm²

number of cables / per connection2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule.

width of screwdriver blade3.5 mm

standards, specifications, approvals

cULus approvalYes

design tested acc. to type of protection / EEx eNo

overvoltage category2

degree of pollution2

combustibility class according to UL 94V1

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total11.7 kg

during manufacturing0.9 kg

during operation10.7 kg

after end of life0.08 kg

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70

mechanical data

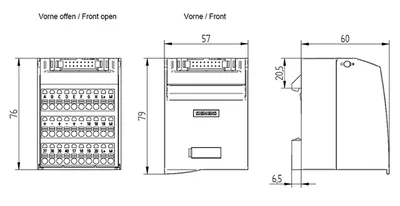

width × height × depth57 mm × 76 mm × 60 mm

mounting typeDIN rail 35 mm, DIN rail 15 mm

mounting positionany

height / with lowest-profile installation60 mm

net weight0.11 kg

insulation materialother

of the enclosuregrey

of the light sourcewithout

product component / required / end cover plateNo

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

marketing textThe TPA connection module for analog modules with push-in terminals for 16-pin connecting cables without LED for signalling forms the interface between the connecting cables of the peripherals brought in from the field and the SIMATIC S7-1500. This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-1500 via cable and front plug-in module.
