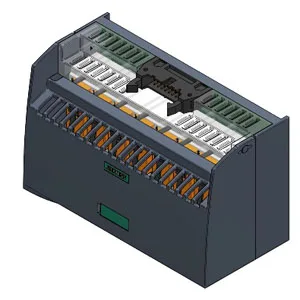

Siemens 6ES7924-0BE20-0BC0

Connection module TPRI with relay 230 V AC, Output 8 NO contacts 24V DC/0.05 A Type: Push-in terminal with LED, VPE=1 unit 16 pole IDC connection for cable

SiemensMFR # 6ES7924-0BE20-0BC0SKU # CEY-8EF3B0386EB0

target systemSIMATIC S7-300 / 1500

suitability for useDigital input module

product brand nameSIMATIC Top connect

product type designationFully modular connection

product designationConnection module

at AC / rated value230 V; for coil

Have questions?Chat on WhatsApp

About This Product

Connection module TPRI with relay 230 V AC, Output 8 NO contacts 24V DC/0.05 A Type: Push-in terminal with LED, VPE=1 unit 16 pole IDC connection for cable

Siemens 6ES7924-0BE20-0BC0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

target systemSIMATIC S7-300 / 1500

suitability for useDigital input module

product brand nameSIMATIC Top connect

product type designationFully modular connection

product designationConnection module

electrical data

at AC / rated value230 V; for coil

ampacity / per pin / maximum1 A

continuous current / at DC / per signal cable / maximum0.05 A

switching capacity current / of the contacts / with resistive load / maximum0.05 A; for 24V AC; recommended minimal load larger than 5mA

relay designFor input signals

type of switching contactSingle contact, NO contact

number of relay outputs8

operating frequency / maximum8.33 1/s

mechanical service life (operating cycles) / typical10 000 000

electrical endurance (operating cycles) / typical3 000 000; for AC 230 V/50 mA/Cos phi = 1

as status display of the inputs/outputsLED yellow for "active high"

for power supply / power LEDYes; green for 24 V DC O.K.

product function / infeed functionYes

PE connectionNo

shield connectionNo

disconnectorNo

protective wiringNo

product feature / cross-connectableNo

connection method

number of terminals20; 8 x I x 2; 2 x L+, 2 x M

number of channels8

type of connecting terminalpush-in

position / of the terminalTop

number of terminal levels1

design of terminal / terminal levels internally linkedNo

type of electrical connection / for connecting cablePlug-in connection

number of poles / at the 1st interface16; IDC connector with installed strain relief for the connecting cable

number of the plug contacts / of the electrical connection1

wire length / maximum30 m; between front connector module and Connection module

type of connectable conductor cross-sections / solidNo

for flexible conductor / with core end processing0.2 ... 2.5 mm²; End sleeve according to DIN 46228/1 or DIN 46228/4 with plastic collar

stranded0.2 ... 2.5 mm²

finely stranded / without core end processing0.2 ... 2.5 mm²

finely stranded / with core end processing0.2 ... 2.5 mm²

number of cables / per connection2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule.

width of screwdriver blade3.5 mm

standards, specifications, approvals

cULus approvalYes

design tested acc. to type of protection / EEx eNo

overvoltage category2

degree of pollution2

combustibility class according to UL 94V1

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total287.2 kg

during manufacturing2.6 kg

during operation284.4 kg

after end of life0.24 kg

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70

mechanical data

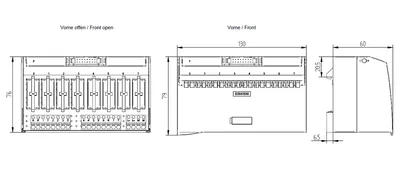

width × height × depth130 mm × 76 mm × 60 mm

mounting typeDIN rail 35 mm, DIN rail 15 mm

mounting positionany

height / with lowest-profile installation60 mm

net weight0.32 kg

insulation materialother

of the enclosuregrey

of the light sourceother

product component / required / end cover plateNo

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

marketing textThe TPRi relay connection module with relays for connecting 8 digital input signals (230VAC) and potential feed terminals (24VDC). For potential matching to 24VDC input signal. With push-in terminals and LED for signalling, it forms the interface between the connecting cables of the peripherals coming from the field and the SIMATIC S7. This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, is precisely adapted to the respective task. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module.
