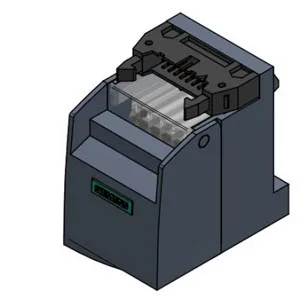

Siemens 6ES7924-0AA20-0AA0

Connection module TP1 8 channels u. 2x2 terminals f. Potential supply Type: Screw terminal without LED, VPE=1 unit 16 pole IDC connector f. cable

SiemensMFR # 6ES7924-0AA20-0AA0SKU # CEY-937FC780AE3D

target systemSIMATIC S7-300 / 1500

suitability for useDigital I/O modules

product brand nameSIMATIC Top connect

product type designationFully modular connection

product designationConnection module

at DC / rated value24 V

Have questions?Chat on WhatsApp

About This Product

Connection module TP1 8 channels u. 2x2 terminals f. Potential supply Type: Screw terminal without LED, VPE=1 unit 16 pole IDC connector f. cable

Siemens 6ES7924-0AA20-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

target systemSIMATIC S7-300 / 1500

suitability for useDigital I/O modules

product brand nameSIMATIC Top connect

product type designationFully modular connection

product designationConnection module

electrical data

at DC / rated value24 V

rated value50 V

at DC / maximum50 V

ampacity / per pin / maximum1 A

continuous current / at DC / per signal cable / maximum1 A

total current / maximum4 A

product function / infeed functionYes

PE connectionNo

shield connectionNo

disconnectorNo

product feature / cross-connectableNo

connection method

number of terminals12; 8 x I/O; 2 x L+, 2 x M

number of channels8

type of connecting terminalScrew-type terminal

position / of the terminalTop

number of terminal levels1

design of terminal / terminal levels internally linkedNo

type of electrical connection / for connecting cablePlug-in connection

number of poles / at the 1st interface16; IDC connector with installed strain relief for the connecting cable

number of the plug contacts / of the electrical connection1

wire length / maximum30 m; between front connector module and Connection module

type of connectable conductor cross-sections / solidNo

for flexible conductor / with core end processing0.5 ... 2.5 mm²; End sleeve according to DIN 46228/1

stranded0.5 ... 2.5 mm²

finely stranded / with core end processing0.5 ... 2.5 mm²

number of cables / per connection2; Connection for internal system: Combination of 1 or 2 Wires until the sum total of cross sections be achieved in a ferrule.

width of screwdriver blade3.5 mm

tightening torque0.4 ... 0.5 N·m

standards, specifications, approvals

cULus approvalYes

design tested acc. to type of protection / EEx eNo

overvoltage category2

degree of pollution2

combustibility class according to UL 94V1

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total11.4 kg

during manufacturing0.6 kg

during operation10.7 kg

after end of life0.06 kg

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70

mechanical data

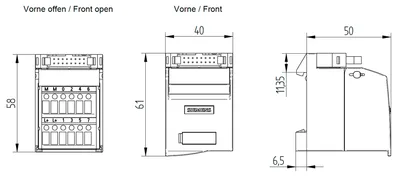

width × height × depth40 mm × 58 mm × 50 mm

mounting typeDIN rail 35 mm, DIN rail 15 mm

mounting positionany

height / with lowest-profile installation50 mm

net weight0.08 kg

insulation materialother

of the enclosuregrey

of the light sourcewithout

product component / required / end cover plateNo

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

marketing textThe TP1 connection module for a 1-wire connection with 8 channels and a potential connection with screw terminals without LED for signalling forms the interface between the connection cables of the peripherals coming from the field and the SIMATIC S7. This is mounted on the DIN rail and is exactly adapted to the respective task thanks to its functionality with screw terminals. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-300/1500 via cable and front plug-in module..
