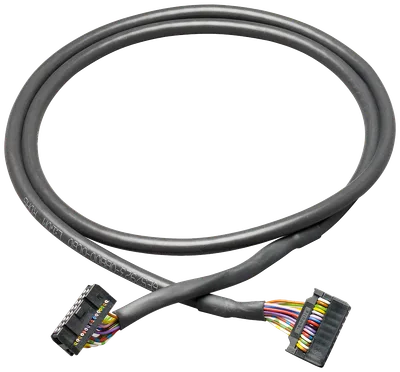

Siemens 6ES7923-0BD00-0CB0

Connecting cable unshielded for SIMATIC S7-300/1500 between front connector module and Connection module 16x0.14 mm2 with IDC connectors, Length = 3.0 m

SiemensMFR # 6ES7923-0BD00-0CB0SKU # CEY-937FC7802C75

target systemSIMATIC S7-300 / 1500

suitability for useDigital I/O modules

input card PLCYes

PLC output cardYes

digital signal transmissionYes

analog signal transmissionNo

Have questions?Chat on WhatsApp

About This Product

Connecting cable unshielded for SIMATIC S7-300/1500 between front connector module and Connection module 16x0.14 mm2 with IDC connectors, Length = 3.0 m

Siemens 6ES7923-0BD00-0CB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

target systemSIMATIC S7-300 / 1500

suitability for useDigital I/O modules

input card PLCYes

PLC output cardYes

digital signal transmissionYes

analog signal transmissionNo

product brand nameSIMATIC Top connect

product type designationFully modular connection

product designationPre-assembled round cable

electrical data

rated value24 V

maximum60 V

connection method

design of cableRound cable

number of channels8

wire length3 m

conductor cross section / rated value0.14 mm²

Product component / with shieldNo

number of poles16

at the 1st interface16; cable side front connector module

at the 2nd interface16; on the connection module

connector typeIDC connector

type of electrical connection / on enclosureConnector strip

type of electrical connection / in the fieldConnector strip

standards, specifications, approvals

cULus approvalNo

Environmental Product Declaration

Environmental Product DeclarationYes

total2.904 kg

during manufacturing2.824 kg

during operation0 kg

after end of life0.007 kg

ambient conditions

during operation0 ... 60 °C

during storage-30 ... +70

mechanical data

outer diameter / of cable sheath6.5 mm

material / of the connection cable sheathPVC

color / of cable sheathBlack

net weight0.235 kg

additional information

other informationtechnical specifications apply to rated input voltage values and +25 °C ambient temperature (if not otherwise specified)

marketing textThe 16-pin round cable (unshielded) with a length of 3m represents the link between the front connector and connection module. This pre-assembled cable enables a trouble-free and safe signal flow. Even complex installations remain manageable and can be checked in the shortest possible time, which makes maintenance and expansion affordable. This pre-assembled connecting cable is part of the fully modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect and connected to the SIMATIC S7-1500 via cable and front plug-in module.
