Siemens 6ES7155-6MU01-0CN0

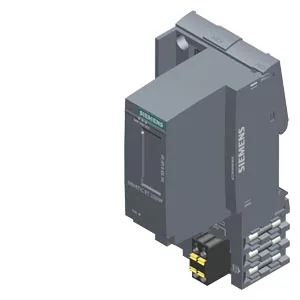

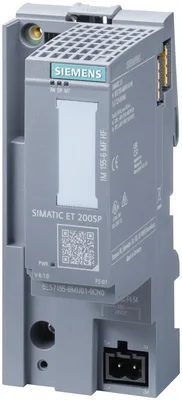

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6ES7155-6MU01-0CN0

SIMATIC ET 200SP MultiFieldbus interface module IM 155-6 MF High Feature, PN IO, Ethernet IP, Modbus TCP, max. 64 I/O modules and 16 ET 200AL modules, S2 redundancy, multi hot swap, 0.25 ms, isochronous mode, optional PN strain relief PN security class 1 including server module (6ES7193-6PA00-0AA0)

SiemensMFR # 6ES7155-6MU01-0CN0SKU # YLSYA8QWVFEI9N3
Product type designationIM 155-6 MF HF
Firmware versionV6.4.1
FW update possibleYes
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0313H
I&M dataYes; I&M0 to I&M4
Share
Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP MultiFieldbus interface module IM 155-6 MF High Feature, PN IO, Ethernet IP, Modbus TCP, max. 64 I/O modules and 16 ET 200AL modules, S2 redundancy, multi hot swap, 0.25 ms, isochronous mode, optional PN strain relief PN security class 1 including server module (6ES7193-6PA00-0AA0)

Siemens 6ES7155-6MU01-0CN0

  • Genuine, certified Siemens product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

General information
Product type designationIM 155-6 MF HF
Firmware versionV6.4.1
FW update possibleYes
Vendor identification (VendorID)002AH
Device identifier (DeviceID)0313H
Manufacturer ID according to ODVA (VendorID)0x04E3
Device ID according to ODVA (Product code)0FA2H
Product function
I&M dataYes; I&M0 to I&M4
Module swapping during operation (hot swapping)Yes; Multi-hot swapping
Isochronous modeYes
IRTYes
Tool changerYes; Docking station and docking unit
Local coupling, IO dataYes
— Number of coupling modules6; 1x output + max. 5x input
Engineering with
STEP 7 TIA Portal configurable/integrated from versionV20
STEP 7 configurable/integrated from versionV5.7 SP3
PROFINET from GSD version/GSD revisionGSDML V2.45
Multi Fieldbus Configuration Tool (MFCT)V1.5.2.0 or higher
Configuration control
via datasetYes
Supply voltage
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Short-circuit protectionYes
Mains buffering
Mains/voltage failure stored energy time10 ms
Input current
Current consumption (rated value)550 mA
Current consumption, max.650 mA
Inrush current, max.1 A
I²t0.05 A²·s
Power loss
Power loss, typ.2 W
Address space per module
Address space per module, max.288 byte; For input and output data respectively
Address space per station
Address space per station, max.1 440 byte
Rack
Quantity of operable ET 200SP modules, max.64
Quantity of operable ET 200AL modules, max.16
Submodules
Number of submodules per station, max.256
Interfaces
Transmission procedure100BASE-TX
Number of PROFINET interfaces1; 2 ports (switch)
Interface types
RJ 45 (Ethernet)Yes; with BusAdapter
Number of ports2; with BusAdapter
integrated switchYes
BusAdapter (PROFINET)Yes; BA 2x RJ45, BA 2x M12, BA 2x FC
Protocols
PROFINET IO deviceYes
Open IE communicationYes
Media redundancyYes; PROFINET MRP client
Services
— IRTYes; 250 µs to 4 ms in 125 µs frame
— Dynamic Frame Packing (DFP)Yes
— Fast ForwardingYes
— FragmentationYes
— PROFIenergyYes
— Prioritized startupYes
— Shared deviceYes
— Number of IO Controllers with shared device, max.14; 2x PN controller + 2x EtherNet/IP scanner + 10x Modbus TCP master
RJ 45 (Ethernet)
Transmission procedurePROFINET with 100 Mbit/s full duplex (100BASE-TX)
100 MbpsYes
AutonegotiationYes
AutocrossingYes
Protocols
Supports protocol for PROFINET IOYes
PROFIsafeYes
PROFIBUSNo
EtherNet/IPYes
Modbus TCPYes
Number of connections
Number of MtM communication relationships/connections, max.16
Redundancy mode
PROFINET system redundancy (S2)Yes; NAP S2
PROFINET system redundancy (R1)No
H-Sync forwardingYes
Media redundancy
— MRPYes
— MRPDYes
Services
— CIP Implicit MessagingYes
— CIP Explicit MessagingYes
— CIP SafetyNo
— Configuration control via Explicit MessagingNo
— Shared deviceYes; 2x PN controller + 2x EtherNet/IP scanner + 10x Modbus TCP master
— Number of scanners with shared device, max.2
Updating times
— Requested Packet Interval (RPI)2 ms
Address area
— Address space per module, max.288 byte; (246 byte outputs / 288 byte inputs)
— ForwardOpen (Class1 & 32 bit Header)500 byte; (246 byte outputs / 500 byte inputs)
— LargeForwardOpen (Class3)4 002 byte
Connections
— Number of rack connections2
Services
— read coils (code=1)Yes
— read discrete inputs (code=2)Yes
— Read Holding Registers (Code=3)Yes
— Read Input Register (Code=4)Yes
— write single coil (code=5)Yes
— Write Single Register (Code=6)Yes
— write multiple coils (code=15)Yes
— Write Multiple Registers (Code=16)Yes
— Read/Write Multiple Registers (Code=23)Yes
— Parameter change by masterYes
— Modbus TCP Security ProtocolNo
Address space per station
— Address space per station, max.500 byte; (246 byte outputs / 500 byte inputs)
— Access-consistent address space250 byte; (246 byte outputs / 250 byte inputs)
Updating time
— I/O request interval2 ms
Connections
— number of connections per device9; (1x inputs / 2x outputs / 4x volatile registers / 2x Device Info)
Open IE communication
TCP/IPYes
UDPYes
SNMPYes
LLDPYes
ARPYes
IGMPYes
MulticastYes
BroadcastYes
IPv4Yes
IPv6No
Isochronous mode
EquidistanceYes
shortest clock pulse250 µs
max. cycle4 ms
Bus cycle time (TDP), min.250 µs
Jitter, max.1 µs
Interrupts/diagnostics/status information
Status indicatorYes
AlarmsYes
Diagnostics functionYes
Diagnostics indication LED
RUN LEDYes; green LED
ERROR LEDYes; red LED
MAINT LEDYes; Yellow LED
Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
NS LEDYes; green/red LED
MS LEDYes; green/red LED
IO LEDYes; red-green-yellow LED
Connection display LINK TX/RXYes; 2x green link LEDs on BusAdapter
Potential separation
between backplane bus and electronicsNo
between PROFINET and all other circuitsYes; 1500 V AC (type test)
between supply and all other circuitsNo
Permissible potential difference
between different circuitsSafety extra low voltage SELV
Isolation
Isolation tested with707 V DC (type test)
Standards, approvals, certificates
Network loading class3
Security
PROFINET Security Class1
signed firmware updateYes
Secure BootNo
securely removing dataYes
data integrityYes
Ambient temperature during operation
horizontal installation, min.-30 °C; No condensation
horizontal installation, max.60 °C
vertical installation, min.-30 °C; No condensation
vertical installation, max.50 °C
Altitude during operation relating to sea level
Installation altitude above sea level, max.5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual
ET-Connection
via BU/BA SendYes; + 16 ET 200AL modules
Mechanics/material
Strain reliefYes; Optional
Dimensions
Width50 mm
Height117 mm
Depth74 mm
Weights
Weight, approx.120 g; without BusAdapter
