Siemens 6GK1905-0EB10

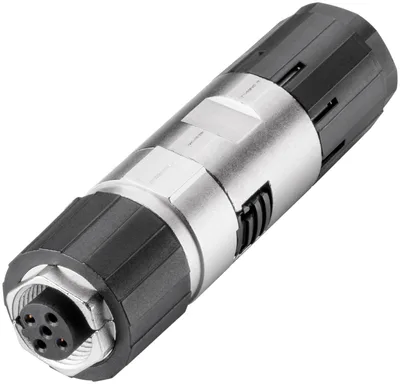

PROFIBUS FC M12 Cable connector PRO, M12 plug-in connector with rugged metal enclosure and FC connection system, with axial cable outlet, for use with ET 200 PRO, female contact insert (B-coded) 1 pack=5 units.
product brand nameSIMATIC NET
transfer rate / with PROFIBUS9.6 kbit/s ... 12 Mbit/s
for PROFIBUS cables1
material / of the enclosuremetal
number of reuses10
locking mechanism designScrewed joint
About This Product
PROFIBUS FC M12 Cable connector PRO, M12 plug-in connector with rugged metal enclosure and FC connection system, with axial cable outlet, for use with ET 200 PRO, female contact insert (B-coded) 1 pack=5 units.
Siemens 6GK1905-0EB10
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIMATIC NET
suitability for useFor connecting electrical PB FC bus cables to ET200 PRO, suitable for fast assembly with the FastConnect system
transfer rate
transfer rate / with PROFIBUS9.6 kbit/s ... 12 Mbit/s
interfaces
for PROFIBUS cables1
for network components or terminal equipment1
for PROFIBUS cablesIntegrated insulation displacement terminals for 2-core PB FC installation cables
for network components or terminal equipmentM12 connector (female insert, 5-pin, B-coded)
type of electrical connection / FastConnectYes
mechanical data
material / of the enclosuremetal
number of reuses10
locking mechanism designScrewed joint
tightening torque / for M12 round connector / maximum0.6 N·m
connector coding / of the M12 circular connectorB

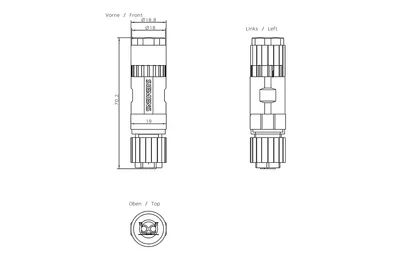

design, dimensions and weights
type of cable outlet180° cable outlet
width19 mm
height19 mm
depth73 mm
net weight40 g
connectable cable diameter6 ... 8 mm
connectable conductor cross-section0.33 mm²
ambient conditions
during operation-40 ... +85 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
to waterresistant
protection class IPIP65/67
product features, product functions, product components / general
silicon-freeYes
strain reliefYes
standards, specifications, approvals
RoHS conformityYes
UL approvalYes
cULus approvalYes
railway application in accordance with EN 50155No
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total0.32 kg
during manufacturing0.28 kg
during operation0.01 kg
after end of life0.03 kg
