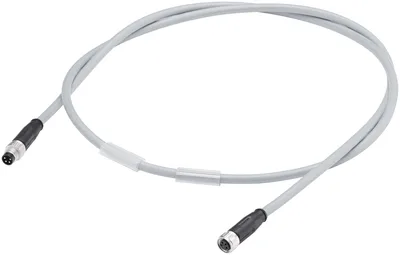

Siemens 6ES7194-2LH03-1AA0

Power cable M8, both ends assembled with M8 connector and M8 socket, 4-pole, length 0.3 m

SiemensMFR # 6ES7194-2LH03-1AA0SKU # CEY-937FC77FEA20

Product type designationPower cable

IP degree of protectionIP65/67

min.-40 °C

max.80 °C

Cable designation4 Li9Y 0.50 mm² Y

Cable length0.3 m

Have questions?Chat on WhatsApp

About This Product

Power cable M8, both ends assembled with M8 connector and M8 socket, 4-pole, length 0.3 m

Siemens 6ES7194-2LH03-1AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationPower cable

Product descriptionFlexible cable (4-core), preassembled at each end with a 4-pin M8 male / female connector

Suitability for useFor connection to ET 200AL for 24 V DC power supply

Degree and class of protection

IP degree of protectionIP65/67

Ambient conditions

Ambient temperature during assembly, min.-30 °C

Ambient temperature during assembly, max.80 °C

Ambient temperature during storage/transportation

min.-40 °C

max.80 °C

Cables

Cable designation4 Li9Y 0.50 mm² Y

Cable length0.3 m

Number of electrical cores4

Outer diameter of inner conductor0.8 mm

Outer diameter of core insulation1.46 mm

Outer diameter of cable sheath5.2 mm

Number of bending cycles2 500 000; cable carrier compliant for 2.5 million bending cycles with a bending radius of 52 mm, a speed of 3 m/s and an acceleration of 10 m/s²

Permissible bending radius, single bend, min.26 mm

Permissible bending radius, multiple bends, min.52 mm

Bending radius for continuous bending52 mm

Color of cable sheathgray

Color of core insulation of energy corewhite / brown / blue / black

Weight per length44 kg/km

Mechanics/material

Outgoing feeder type180° cable outlet

Material of cable sheathPVC

Material of core insulationPP

Silicone-freeYes
