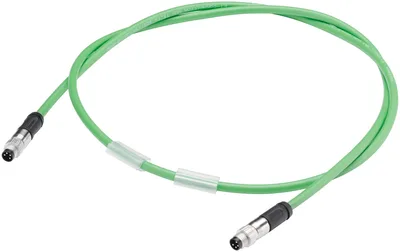

Siemens 6ES7194-2LH10-0AA0

bus cable for ET connection M8, assembled on both ends with 2x M8 connectors, 4-pole, shielded Length 1.0 m

SiemensMFR # 6ES7194-2LH10-0AA0SKU # CEY-937FC77EDB13

Product type designationBus cable

IP degree of protectionIP65/67

min.-40 °C

max.80 °C

Cable designation2Y(ST)CY 1x4x0.5/1.0-100-GN

Cable length1 m

Have questions?Chat on WhatsApp

About This Product

bus cable for ET connection M8, assembled on both ends with 2x M8 connectors, 4-pole, shielded Length 1.0 m

Siemens 6ES7194-2LH10-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationBus cable

Product descriptionFlexible cable (4-core), preassembled at both ends with 2x M8 plugs, 4-pin, shielded

Suitability for usefor connecting ET-CONNECTION nodes (e.g. SIMATIC ET 200AL) in degree of protection IP65 / 67

Degree and class of protection

IP degree of protectionIP65/67

Ambient conditions

Ambient temperature during assembly, min.-30 °C

Ambient temperature during assembly, max.80 °C

Ambient temperature during storage/transportation

min.-40 °C

max.80 °C

Cables

Cable designation2Y(ST)CY 1x4x0.5/1.0-100-GN

Design of shieldOverlapped aluminum-clad foil, sheathed in a braid of tin-plated copper wires

Cable length1 m

Number of electrical cores4

Outer diameter of inner conductor0.5 mm

Outer diameter of core insulation1 mm

Outer diameter of cable sheath5 mm

Number of bending cycles1 000 000; cable carrier compliant for 1 million bending cycles with a bending radius of 100 mm, a speed of 4 m/s and an acceleration of 4 m/s²

Permissible bending radius, single bend, min.20 mm

Permissible bending radius, multiple bends, min.40 mm

Bending radius for continuous bending100 mm

Color of cable sheathgreen

Color of core insulation of data coreswhite / yellow / blue / orange

Weight per length34 kg/km

Mechanics/material

Outgoing feeder type180° cable outlet

Material of cable sheathPVC

Material of core insulationPE

Halogen-freeNo

Silicone-freeYes
