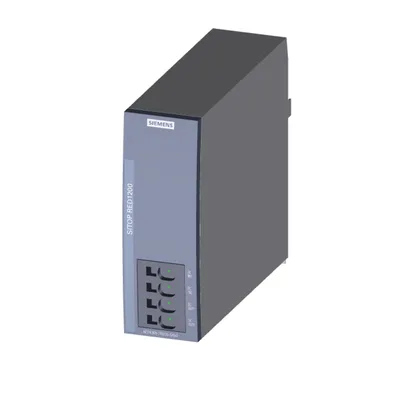

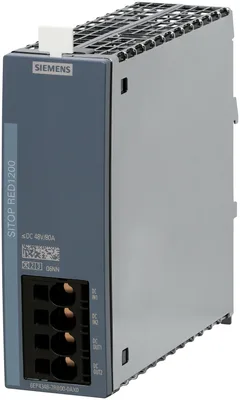

Siemens 6EP4348-7RB00-0AX0

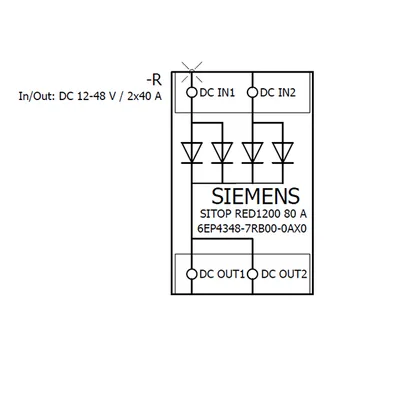

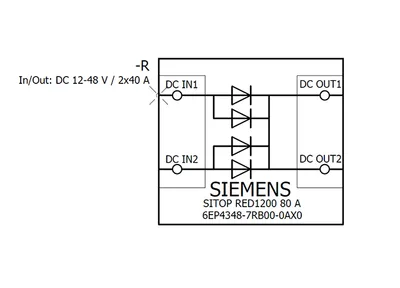

SITOP RED1200 redundancy module input/output: DC 24/48V/80 A Suitable for decoupling two SITOP power supplies with maximal per 40 A output current
product brand nameSITOP
product type designationRED1200
product designationRedundancy module
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage at DC12 ... 48 V
About This Product
SITOP RED1200 redundancy module input/output: DC 24/48V/80 A Suitable for decoupling two SITOP power supplies with maximal per 40 A output current
Siemens 6EP4348-7RB00-0AX0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
product brand nameSITOP
product type designationRED1200
product designationRedundancy module
input
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage at DC12 ... 48 V
input voltage at DC10 ... 58 V
output
voltage curve at outputControlled DC voltage
number of outputs1
output voltage at DC rated value24 V
formula for output voltageVin - approx. 0.6 V
at output 1 at DC rated value24 V
at output 1 at DC12 ... 48 V
output voltage adjustableNo
rated value80 A
bridging of equipmentNo
efficiency
efficiency in percent97.5 %
at rated output voltage for rated value of the output current typical46 W
during no-load operation maximum0.1 W
safety
galvanic isolation between input and outputNo
operating resource protection classClass III
protection class IPIP20
EMC
for emitted interferenceEN 61000-6-3
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
NEC Class 2No
MTBF at 40 °C4 900 000 h
standards, specifications, approvals hazardous environments
IECExNo
ATEXNo
ULhazloc approvalNo
FM registrationNo
standards, specifications, approvals marine classification
shipbuilding approvalNo
American Bureau of Shipping Europe Ltd. (ABS)No
French marine classification society (BV)No
Det Norske Veritas (DNV)No
Lloyds Register of Shipping (LRS)No
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationYes
total1 305.8 kg
during manufacturing44.1 kg
during operation1 260.4 kg
after end of life1.02 kg
ambient conditions
during operation-40 ... +70 °C; with natural convection
during transport-40 ... +85 °C
during storage-40 ... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation
connection method
type of electrical connectionpush-in terminals
at inputIn1, In2: each for 0.75 ... 16 mm²
at outputOut1, Out2: 0.75 ... 16 mm²
mechanical data

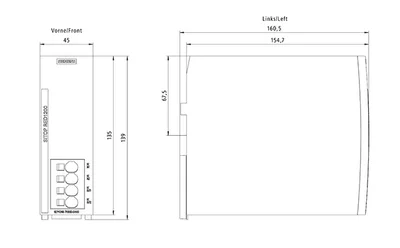

width × height × depth of the enclosure45 × 135 × 125 mm
installation width × mounting height45 mm × 225 mm
top45 mm
bottom45 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingYes
S7 rail mountingNo
wall mountingNo
housing can be lined upYes
net weight1.01 kg
additional information
other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing44.1 kg
global warming potential [CO2 eq] / during operation1260.4 kg
global warming potential [CO2 eq] / after end of life1.02 kg
global warming potential [CO2 eq] / total1305.8 kg
