How can I get a price quote for Siemens 6EP3343-0SA00-0AY0?

You can request a fast quote for Siemens 6EP3343-0SA00-0AY0 from Yılsa Engineering. Reference part number CEY-937FC780B55D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP3343-0SA00-0AY0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP3343-0SA00-0AY0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP3343-0SA00-0AY0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

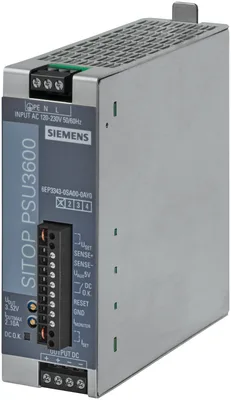

Siemens 6EP3343-0SA00-0AY0

SITOP PSU3600 flexi Stabilized power supply Input: 120-230 V AC Output: 3-52 V DC/10 A, 120 W

SiemensMFR # 6EP3343-0SA00-0AY0SKU # CEY-937FC780B55D

product brand nameSITOP

product type designationPSU3600

product designationPower supply SITOP PSU3600 flexi

type of current supply3-52 V/10 A, 120 W

type of the power supply network1-phase AC or DC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP PSU3600 flexi Stabilized power supply Input: 120-230 V AC Output: 3-52 V DC/10 A, 120 W

Siemens 6EP3343-0SA00-0AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU3600

product designationPower supply SITOP PSU3600 flexi

type of current supply3-52 V/10 A, 120 W

input

type of the power supply network1-phase AC or DC

phase number1

voltage curve at inputAC/DC

minimum rated value120 V

maximum rated value230 V

initial value85 V

full-scale value264 V

supply voltage at ACDerating at < 110 V AC/DC: output power max. 100 W

supply voltage at DC110 ... 220 V

input voltage at DC88 ... 250 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputYes

buffering time for rated value of the output current in the event of power failure minimum80 ms

operating condition of the mains bufferingWith Pa = 120 W and Ue = 230 V AC

at rated input voltage 110 V1.3 A

at rated input voltage 120 V2.6 A

at rated input voltage 220 V0.7 A

at rated input voltage 230 V1.3 A

current limitation of inrush current at 25 °C maximum35 A

I2t value maximum1 A²·s

fuse protection typeT 3.15 A (not accessible)

fuse protection type in the feederRecommended miniature circuit breaker: 6-10 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

formula for output voltage3-52 V DC

at output 1 at DC rated value24 V

at output 1 at DC3 ... 52 V

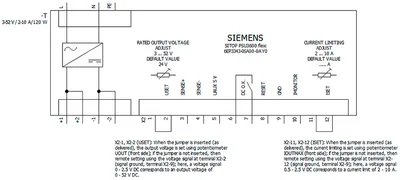

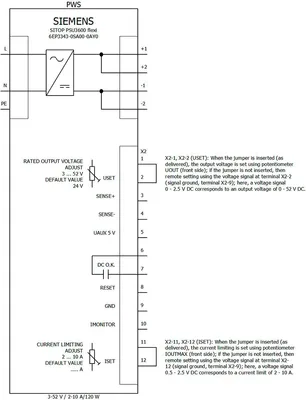

output voltage adjustableYes; via potentiometer (adjustment range 3 ... 52 V) or analog control voltage signal 0 to 2.5 V (adjustment range 0 ... 52 V)

adjustable output voltage0 ... 52 V

relative overall tolerance of the voltage1 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading1 %

voltage compensation per sense line0.5 V

maximum50 mV

maximum100 mV

display version for normal operationTwo-color LED: green for 24 V o.k., red for overload

type of signal at outputDC OK via relay contact, current monitor signal (0 ... 2.5 V correspond to 0 ... 10 A)

behavior of the output voltage when switching onNo overshoot of Vout (soft start)

response delay maximum0.5 s

typical20 ms

rated value10 A

rated range0 ... 10 A; Output power max. 120 W

supplied active power typical120 W

on short-circuiting during the start-up typical12 A

at short-circuit during operation typical12 A

bridging of equipmentYes

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent88 %

at rated output voltage for rated value of the output current typical16 W

during no-load operation maximum3 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.3 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical5 %

maximum0.2 ms

protection and monitoring

design of the overvoltage protection< 60 V

property of the output short-circuit proofYes

design of short-circuit protectionElectronic current limiting (2 ... 10 A) in the range 3 ... 12 V or power limiting (120 W) in the range 12 ... 52 V

response value current limitation2 ... 10 A

design of the current limitationCan be set with potentiometer or analog control voltage signal 0.5 ... 2.5 V

maximum12 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3.5 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

EAC approvalYes

Regulatory Compliance Mark (RCM)Yes

NEC Class 2No

CB-certificateYes

MTBF at 40 °C1 200 000 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Lloyds Register of Shipping (LRS)No

ambient conditions

during operation-25 ... +70 °C; Derating > 60°C: 2%/°K

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL1, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded

at output+, -: 2 screw terminals each for 0.5 ... 2.5 mm² single-core/finely stranded

for auxiliary contactsAlarm signals, control inputs: screw-type terminals for 0.14 ... 1.5 mm² single-core/finely stranded

mechanical data

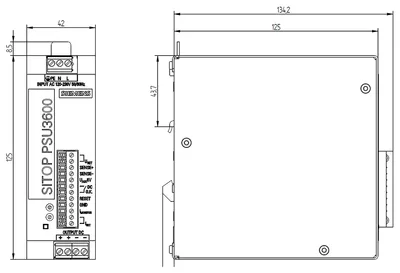

width × height × depth of the enclosure42 × 125 × 135 mm

installation width × mounting height42 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.55 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
