How can I get a price quote for Siemens 6EP3134-0TA00-0AY0?

You can request a fast quote for Siemens 6EP3134-0TA00-0AY0 from Yılsa Engineering. Reference part number YLSI6NB2GNWSMXB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP3134-0TA00-0AY0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP3134-0TA00-0AY0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP3134-0TA00-0AY0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

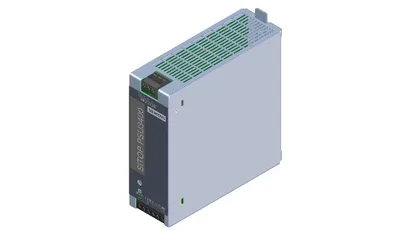

Siemens 6EP3134-0TA00-0AY0

SITOP PSU3400 24 V/10 A Stabilized power supply Input: 24 V DC (14…32 V) Output: 24 V DC/10 A

SiemensMFR # 6EP3134-0TA00-0AY0SKU # YLSI6NB2GNWSMXB

product brand nameSITOP

product type designationPSU3400

product designationPower supply SITOP DC-DC converter

type of current supply24 V/10 A

type of the power supply networkDC voltage

voltage curve at inputDC

Have questions?Chat on WhatsApp

About This Product

SITOP PSU3400 24 V/10 A Stabilized power supply Input: 24 V DC (14…32 V) Output: 24 V DC/10 A

Siemens 6EP3134-0TA00-0AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU3400

product designationPower supply SITOP DC-DC converter

type of current supply24 V/10 A

input

type of the power supply networkDC voltage

voltage curve at inputDC

supply voltage at ACStartup as of 18 V, derating necessary for 14 ... 18 V DC

supply voltage at DC24 V

input voltage at DC14 ... 32 V

wide range inputNo

overvoltage overload capability-

buffering time for rated value of the output current in the event of power failure minimum5 ms

operating condition of the mains bufferingat Vin = 24 V

at rated input voltage 24 V10.8 A

current limitation of inrush current at 25 °C maximum15 A

I2t value maximum0.6 A²·s

fuse protection type25 A (not accessible), breaking capacity 300 A

fuse protection type in the feederRecommended miniature circuit breaker: 16 A characteristic B or C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage24 ... 28 V

relative overall tolerance of the voltage1 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading0.3 %

maximum150 mV

typical30 mV

maximum250 mV

typical50 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputRelay contact (NO contact, contact rating 30 V AC/0.5 A; 60 V DC/0.3 A; 30 V DC/1 A) for 24 V O.K.

behavior of the output voltage when switching onNo overshoot of Vout (soft start)

response delay maximum0.5 s

typical10 ms

maximum20 ms

rated value10 A

rated range0 ... 12.5 A; 12 A up to +40°C; +60 ... +70 °C: Derating 2%/K

supplied active power typical260 W

bridging of equipmentYes

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent93 %

at rated output voltage for rated value of the output current typical20 W

during no-load operation maximum1.5 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.3 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical2 %

load step 50 to 100% typical1 ms

load step 100 to 50% typical1 ms

protection and monitoring

design of the overvoltage protectionUa < 35 V

property of the output short-circuit proofYes

design of short-circuit protectionElectronic shutdown, automatic restart

typical13 A

display version for overload and short circuitLED yellow for "overload"

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass III

protection class IPIP20

EMC

for emitted interferenceEN 61000-6-3

for mains harmonics limitationnot applicable

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

EAC approvalYes

Regulatory Compliance Mark (RCM)Yes

NEC Class 2No

CB-certificateYes

MTBF at 40 °C1 579 080 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)No

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)No

ambient conditions

during operation-25 ... +70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL, N, FE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded

at output+, -: 2 screw terminals each for 0.5 ... 2.5 mm²

for auxiliary contactsAlarm signals: 2 screw terminals for 0.5 ... 2.5 mm²

for signaling contact2 screw terminals for 0.5 ... 2.5 mm²

mechanical data

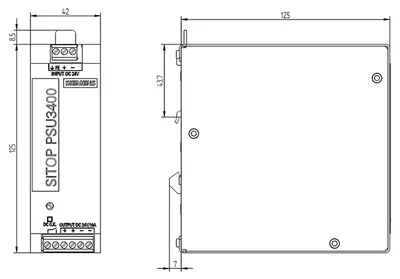

width × height × depth of the enclosure42 × 125 × 120 mm

installation width × mounting height42 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.6 kg

accessories

electrical accessoriesBuffer module

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
