How can I get a price quote for Siemens 5SV4644-0KL?

You can request a fast quote for Siemens 5SV4644-0KL from Yılsa Engineering. Reference part number CEY-8EF3B03896DF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SV4644-0KL in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SV4644-0KL genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SV4644-0KL?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

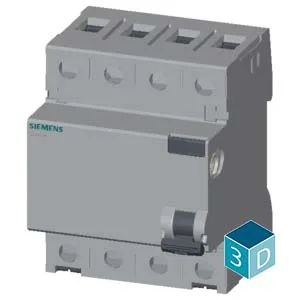

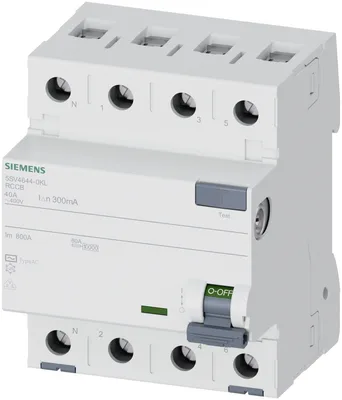

Siemens 5SV4644-0KL

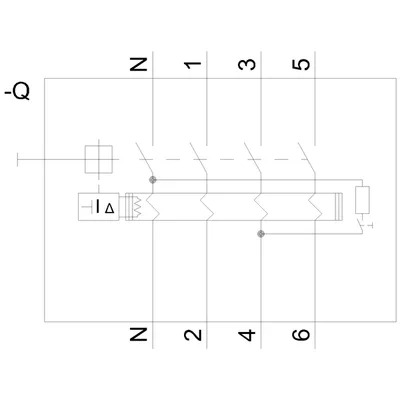

residual current operated circuit breaker, 4-pole, type AC, In: 40 A, 300 mA, Un AC: 400 V, N left Use of these devices is not permitted in all countries. Observe national installation regulations!

SiemensMFR # 5SV4644-0KLSKU # CEY-8EF3B03896DF

product brand nameSENTRON

design of the productInstantaneous

product type designation5SV4

product versionN left

number of poles4

short-circuit current rating10 kA

Have questions?Chat on WhatsApp

About This Product

residual current operated circuit breaker, 4-pole, type AC, In: 40 A, 300 mA, Un AC: 400 V, N left Use of these devices is not permitted in all countries. Observe national installation regulations!

Siemens 5SV4644-0KL

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationResidual current operated circuit breaker

design of the productInstantaneous

product type designation5SV4

product versionN left

General technical data

number of poles4

size of installation devices according to DIN 438801

mechanical service life (operating cycles) typical10 000

short-circuit current of series fuse maximum permissible80 A

short-circuit current rating10 kA

switching function short-term delayedNo

degree of pollution2

insulation voltage (Ui) rated value2 000 V

tripping fault current rated value300 mA

let-through current permissible4 800 A

I2t value permissible41 000 A²·s

Supply voltage

supply voltage for testing equipment minimum100 V

value range of the supply voltage frequency50 Hz

value range of the operating frequency50 Hz

value range of the supply voltage at AC230/400 V

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to IEC 61008-1 rated value0.8 kA

grid spacing60 mm

Dissipation

for rated value of the current at AC in hot operating state per pole2 W

maximum6 W

Appearance

RAL color number7 035

RAL color number (similar)7 035

Product details

product feature silicon-freeYes

product extension installable supplementary devicesYes

Connections

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum35 mm²

minimum2.5 N·m

maximum3 N·m

position of power supply cordtop or bottom

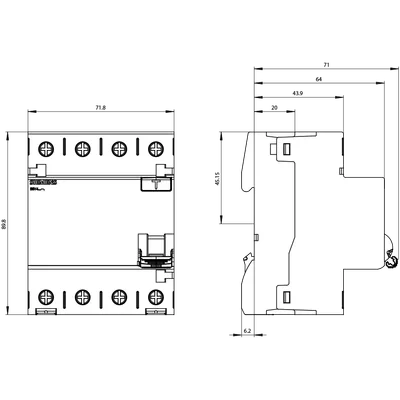

Mechanical Design

height90 mm

width72 mm

depth70 mm

installation depth70 mm

number of modular width units4

fastening methodDIN rail

mounting positionany

Net Weight305 g

Environmental conditions

minimum-25 °C

maximum45 °C

ambient temperature during storage minimum-40 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Accessories 25

Genuine accessories that can be used with the Siemens 5SV4644-0KL motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3010	Aksesuar
5ST3020	Aksesuar
5ST3062-0MC	Aksesuar
5ST3062	Aksesuar
5ST3030	Aksesuar
5ST3040	Aksesuar
5ST3071	Aksesuar
5TG8240	Aksesuar
8WH8210-0AA35	Aksesuar
8WH8210-0AA36	Aksesuar
5SW3005	Aksesuar
5SW3008	Aksesuar
5SW3007	Aksesuar
5ST2134	Aksesuar
7LF9006	Aksesuar
8GB4562	Aksesuar
8GB4561	Aksesuar
8GB4564	Aksesuar
8GB4563	Aksesuar
5ST2136	Aksesuar
5ST2135	Aksesuar
5ST3783-1KL	Seçmeli zorunlu ürün
5ST3783-0KL	Seçmeli zorunlu ürün
5ST3668	Seçmeli zorunlu ürün
5ST3667	Seçmeli zorunlu ürün
