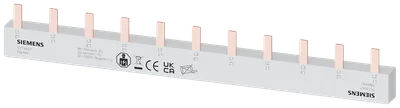

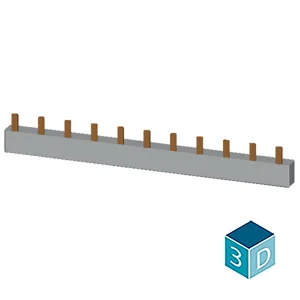

Siemens 5ST3667

Pin busbar, 10 mm2 connection: 3-phase/+ 8x phase touch-safe for 1FI, 4-pole, NLI+8LS, 1-pole

SiemensMFR # 5ST3667SKU # YLSU1RN1JAJOOJD

product brand nameSENTRON

product designationPin busbar

design of the product1x (N)+3PH + 8x 1PH

design of the phase tapL1/L2/L3

compatibilityfor 8 MCBs 1P with 1 RCCB 3P+N, N left

design of pole3 poles

Have questions?Chat on WhatsApp

About This Product

Pin busbar, 10 mm2 connection: 3-phase/+ 8x phase touch-safe for 1FI, 4-pole, NLI+8LS, 1-pole

Siemens 5ST3667

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product1x (N)+3PH + 8x 1PH

design of the phase tapL1/L2/L3

General technical data

compatibilityfor 8 MCBs 1P with 1 RCCB 3P+N, N left

design of pole3 poles

phase number3

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorNo

suitability for useRCCB 4P N left

colorlight grey

Product details

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesNo

can be cutNo

number of devices suitable for fitting9

type of electrical connectionPin

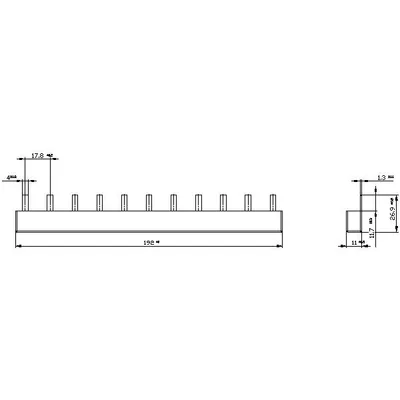

Mechanical Design

module width18 mm

height15 mm

width9 mm

length192 mm

number of modular width units11

cross-section10 mm²

angle of the pin of busbar0°

Net Weight70 g
