How can I get a price quote for Siemens 5SU9356-1KN40?

You can request a fast quote for Siemens 5SU9356-1KN40 from Yılsa Engineering. Reference part number YLSWC0KN1NGNJYG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SU9356-1KN40 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SU9356-1KN40 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SU9356-1KN40?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

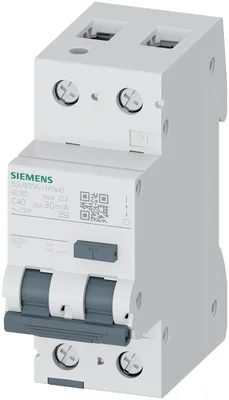

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 5SU9356-1KN40

Voltage-dependent RCD function. Please check if approved in national standards. mA, C-Char, In: 40 A, Un AC: 230 V, with Overvoltage protection 280 V

SiemensMFR # 5SU9356-1KN40SKU # YLSWC0KN1NGNJYG

product brand nameSENTRON

product designationRCD-operated circuit breaker

design of the productInstantaneous

number of poles2

number of poles with protection1

design of pole1P+N

Have questions?Chat on WhatsApp

About This Product

Voltage-dependent RCD function. Please check if approved in national standards. mA, C-Char, In: 40 A, Un AC: 230 V, with Overvoltage protection 280 V

Siemens 5SU9356-1KN40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRCD-operated circuit breaker

design of the productInstantaneous

General technical data

number of poles2

number of poles with protection1

design of pole1P+N

tripping characteristic classC

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution2

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) rated value264 V

surge voltage resistance rated value4 000 V

surge current resistance at (8/20) µs1 kA

tripping fault current rated value30 mA

— at 30 °C rated value40 A

— at 40 °C rated value37.6 A

— at 45 °C rated value36.4 A

— at 50 °C rated value34.8 A

— at 55 °C rated value32.4 A

operational current at AC rated value40 A

residual current typeAC

Supply voltage

at AC rated value230/240 V

for testing equipment minimum195 V

operating frequency50/60 Hz

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to EN 60898 rated value6 kA

according to IEC 60947-2 rated value10 kA

short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value6 kA

rated residual switching capacity (IΔm) according to IEC 61009-16 kA

energy limitation class3

Dissipation

for rated value of the current at AC in hot operating state per pole0.75 W

maximum1.5 W

Product details

product feature touch protectionYes

product component neutral conductor switchingYes

product feature halogen-freeYes

product feature silicon-freeYes

Product function

product functionvoltage dependent RCD function

Connections

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum25 mm²

minimum2.5 N·m

maximum3 N·m

position of power supply cordEither top or bottom

Mechanical Design

height90 mm

width36 mm

depth77 mm

installation depth70 mm

number of modular width units2

mounting positionany

Net Weight280 g

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity

minimum-25 °C

maximum45 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Accessories 42

Genuine accessories that can be used with the Siemens 5SU9356-1KN40 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5SM6024-2	Aksesuar
5TG8240	Aksesuar
8WH8210-0AA35	Aksesuar
8WH8210-0AA36	Aksesuar
5SW3004	Aksesuar
5SW3005	Aksesuar
5SW3006	Aksesuar
5SW3007	Aksesuar
5ST2134	Aksesuar
7LF9006	Aksesuar
8GB4562	Aksesuar
8GB4561	Aksesuar
5ST2135	Aksesuar
5ST2136	Aksesuar
8GB4563	Aksesuar
8GB4564	Aksesuar
5ST3724	Seçmeli zorunlu ürün
5ST3751	Seçmeli zorunlu ürün
5ST3752	Seçmeli zorunlu ürün
5ST3735-1	Seçmeli zorunlu ürün
5ST3735	Seçmeli zorunlu ürün
5ST3607	Seçmeli zorunlu ürün
5ST3705	Seçmeli zorunlu ürün
5ST3608	Seçmeli zorunlu ürün
5ST3704	Seçmeli zorunlu ürün
5ST3642	Seçmeli zorunlu ürün
5ST3786-0	Seçmeli zorunlu ürün
5ST3735-2	Seçmeli zorunlu ürün
5ST3610	Seçmeli zorunlu ürün
5ST3611	Seçmeli zorunlu ürün
5ST3612	Seçmeli zorunlu ürün
5ST3640	Seçmeli zorunlu ürün
5ST3641	Seçmeli zorunlu ürün
5ST3706	Seçmeli zorunlu ürün
5ST3707	Seçmeli zorunlu ürün
5ST3736	Seçmeli zorunlu ürün
5ST3737	Seçmeli zorunlu ürün
5ST3606	Seçmeli zorunlu ürün
5ST3636	Seçmeli zorunlu ürün
5ST3637	Seçmeli zorunlu ürün
5ST3638	Seçmeli zorunlu ürün
5ST3734	Seçmeli zorunlu ürün
