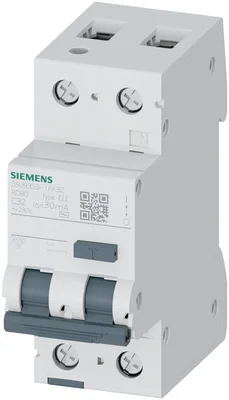

Siemens 5SU9353-1KK32

RCBO, Icn: 4,5kA, 1P+N, Type AC, 30 mA, C-Char, In: 32 A, Un AC: 230V

SiemensMFR # 5SU9353-1KK32SKU # YLSB232WULFTJ2

product brand nameSENTRON

product designationRCD-operated circuit breaker

design of the productInstantaneous

number of poles2

number of poles with protection1

design of pole1P+N

Have questions?Chat on WhatsApp

About This Product

RCBO, Icn: 4,5kA, 1P+N, Type AC, 30 mA, C-Char, In: 32 A, Un AC: 230V

Siemens 5SU9353-1KK32

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRCD-operated circuit breaker

design of the productInstantaneous

General technical data

number of poles2

number of poles with protection1

design of pole1P+N

tripping characteristic classC

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution2

Voltage

type of voltage of the operating voltageAC

insulation voltage (Ui) rated value264 V

surge voltage resistance rated value4 000 V

surge current resistance at (8/20) µs1 kA

tripping fault current rated value30 mA

— at 30 °C rated value32 A

— at 40 °C rated value30.26 A

— at 45 °C rated value29.34 A

— at 50 °C rated value28.4 A

— at 55 °C rated value27.43 A

operational current at AC rated value32 A

residual current typeAC

Supply voltage

at AC rated value230 V

for testing equipment minimum195 V

operating frequency50/60 Hz

supply voltage frequency rated value50 Hz

Protection class

protection class IPIP20, if the distribution board is installed, with connected conductors

Breaking Capacity

according to EN 60898 rated value4.5 kA

short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value4.5 kA

rated residual switching capacity (IΔm) according to IEC 61009-14.5 kA

energy limitation class3

Dissipation

for rated value of the current at AC in hot operating state per pole3.3 W

maximum6.6 W

Product details

product feature touch protectionYes

product component neutral conductor switchingYes

product feature halogen-freeYes

product feature silicon-freeYes

Product function

product functionvoltage dependent RCD function

Connections

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum35 mm²

minimum0.75 mm²

maximum25 mm²

minimum2.5 N·m

maximum3 N·m

position of power supply cordEither top or bottom

Mechanical Design

height90 mm

width36 mm

depth77 mm

installation depth70 mm

number of modular width units2

mounting positionany

Net Weight0.28 kg

Environmental conditions

influence of the surrounding temperatureMax. 95% humidity

minimum-25 °C

maximum45 °C

minimum-40 °C

maximum75 °C

number of test cycles for environmental testing according to IEC 60068-2-3028
