How can I get a price quote for Siemens 5SP5292-7CC?

You can request a fast quote for Siemens 5SP5292-7CC from Yılsa Engineering. Reference part number YLSCBGMEWXMHDJ3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SP5292-7CC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SP5292-7CC genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SP5292-7CC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

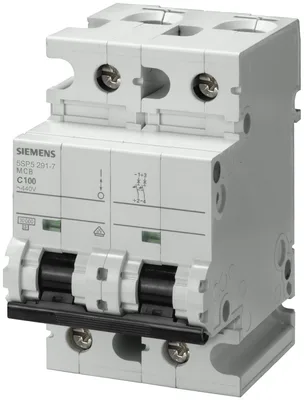

Siemens 5SP5292-7CC

miniature circuit-breaker 440 V DC 10 kA, 2-pole, C, 125 A

SiemensMFR # 5SP5292-7CCSKU # YLSCBGMEWXMHDJ3

product brand nameSENTRON

product designationMiniature circuit breaker

number of poles2

design of pole2P

tripping characteristic classC

overvoltage category3

Have questions?Chat on WhatsApp

About This Product

Siemens 5SP5292-7CC (miniature circuit-breaker 440 V DC 10 kA, 2-pole, C, 125 A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 5SP5292-7CC — price, stock availability and technical specifications.

Siemens 5SP5292-7CC

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

General technical data

number of poles2

design of pole2P

tripping characteristic classC

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution3

Voltage

type of voltage of the operating voltageDC

at DC rated value250 V

— at 40 °C rated value125 A

— at 50 °C rated value109.83 A

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

at DC according to IEC 60947-2 rated value10 kA

energy limitation class3

suitability for operationInfrastructure / Industry

Product details

product feature touch protectionYes

tunnel terminals topYes

tunnel terminals bottomYes

product feature properties for main switches in accordance with EN 60204-1Yes

product feature halogen-freeYes

product feature sealableYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

Connections

minimum10 mm²

maximum50 mm²

minimum10 mm²

maximum50 mm²

minimum10 mm²

maximum35 mm²

minimum6

maximum2

minimum22.1 lbf·in

maximum31 lbf·in

minimum2.5 N·m

maximum3.5 N·m

position of power supply cordnot arbitrary

Mechanical Design

height90 mm

width54 mm

depth70 mm

installation depth70 mm

number of modular width units3

fastening methodDIN rail

mounting positionany

Net Weight532 g

Environmental conditions

influence of the surrounding temperaturePeriodically +55°C, max. 95% humidity

shock resistance according to IEC 60068-2-27150m/s² at 11ms half-sine

vibration resistance according to IEC 60068-2-650m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)

minimum-40 °C

maximum75 °C

Accessories 25

Genuine accessories that can be used with the Siemens 5SP5292-7CC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3010	Aksesuar
5ST3020	Aksesuar
5ST3062-0MC	Aksesuar
5ST3062	Aksesuar
5ST3030	Aksesuar
5ST3040	Aksesuar
5TG8240	Aksesuar
8WH8210-0AA35	Aksesuar
8WH8210-0AA36	Aksesuar
5SW3005	Aksesuar
5SW3007	Aksesuar
5ST2134	Aksesuar
7LF9006	Aksesuar
8GB4561	Aksesuar
8GB4562	Aksesuar
5ST3056	Aksesuar
5ST3055	Aksesuar
5ST3057	Aksesuar
5ST3058	Aksesuar
5ST3070	Aksesuar
5ST3820-2	Aksesuar
5ST2135	Aksesuar
5ST2136	Aksesuar
8GB4563	Aksesuar
8GB4564	Aksesuar
