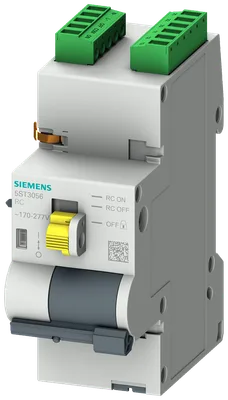

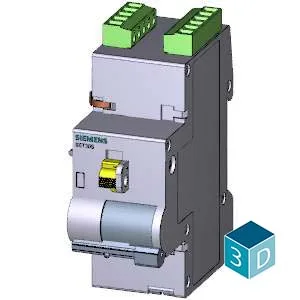

Siemens 5ST3057

remote operating mechanism 5ST3 ARD 12-30 V AC / 12-48 V DC; 2 MW; for CB, RCCB, RC units, RCBO, on-off switch

SiemensMFR # 5ST3057SKU # YLSXIOIXFRUM9I2

product brand nameSENTRON

product designationRemote controlled mechanism Power + ARD

design of the productMountable

display version LEDYes

design of the product factory mountedNo

rated value24 V

Have questions?Chat on WhatsApp

About This Product

remote operating mechanism 5ST3 ARD 12-30 V AC / 12-48 V DC; 2 MW; for CB, RCCB, RC units, RCBO, on-off switch

Siemens 5ST3057

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRemote controlled mechanism Power + ARD

design of the productMountable

display version LEDYes

design of the product factory mountedNo

electrical endurance (operating cycles) typical10 000

Supply voltage

rated value24 V

at AC rated value minimum12 V

at AC rated value maximum30 V

at DC rated value minimum12 V

at DC rated value maximum48 V

protection class IPIP20

Dissipation

power loss [V∙A] during standby1 W

Control current

type of voltage of control voltageAC/DC

Product details

product feature interlockYes

fault signal contactYes

auxiliary switchYes

number of fault signal contacts1

number of NC contacts0

number of NO contacts0

number of CO contacts1

design of the auxiliary switch1 CO contact, 2 A, 250 V AC

product extension can be mountedUniversal

product extensionRemote operating mechanism ARD

type of fault signal contact1 CO, 5 A, 250 V AC

number of remote reset per minute2

number of attempts for automatic resetting (standard)3

Connections

wire length in the control circuit1 500 m

minimum0.5 mm²

maximum1.5 mm²

minimum30

maximum14

minimum0.2 N·m

maximum0.25 N·m

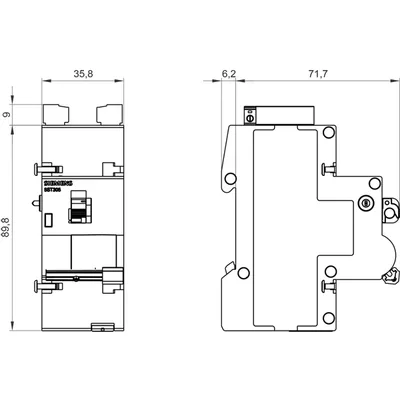

Mechanical Design

height90 mm

width36 mm

depth70 mm

number of modular width units2

Net Weight212.5 g

Environmental conditions

minimum-25 °C

maximum45 °C

ambient temperature during storage minimum-40 °C
