How can I get a price quote for Siemens 5ST3070?

You can request a fast quote for Siemens 5ST3070 from Yılsa Engineering. Reference part number YLSRGQB0ZF9PMM4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3070 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3070 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3070?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

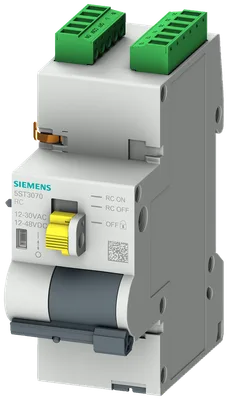

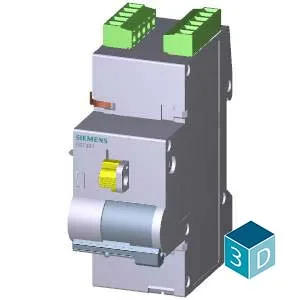

Siemens 5ST3070

remote operating mechanism 5ST3 Power with extended functions (railway approval, ext. temperature range) 12-30 V AC / 12-48 V DC; 2 MW; for CB, RCCB, RC units, RCBO, on-off switch

SiemensMFR # 5ST3070SKU # YLSRGQB0ZF9PMM4

product brand nameSENTRON

design of the productMountable

display version LEDYes

design of the product factory mountedNo

rated value24 V

at AC rated value minimum12 V

Have questions?Chat on WhatsApp

About This Product

remote operating mechanism 5ST3 Power with extended functions (railway approval, ext. temperature range) 12-30 V AC / 12-48 V DC; 2 MW; for CB, RCCB, RC units, RCBO, on-off switch

Siemens 5ST3070

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationRemote controlled mechanism Power extended

design of the productMountable

display version LEDYes

design of the product factory mountedNo

electrical endurance (operating cycles) typical10 000

Supply voltage

rated value24 V

at AC rated value minimum12 V

at AC rated value maximum30 V

at DC rated value minimum12 V

at DC rated value maximum48 V

protection class IPIP20

Dissipation

power loss [V∙A] during standby1 W

Control current

type of voltage of control voltageAC/DC

Product details

product feature interlockYes

fault signal contactYes

auxiliary switchYes

number of fault signal contacts1

number of NC contacts0

number of NO contacts0

number of CO contacts1

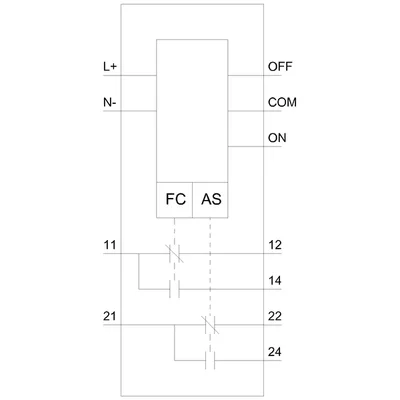

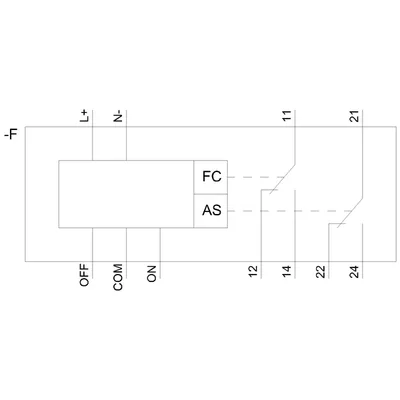

design of the auxiliary switch1 CO contact, 2 A, 250 V AC

product extension can be mountedUniversal

product extensionRemote controlled mechanism, extended

type of fault signal contact1 CO, 5 A, 250 V AC

number of remote reset per minute2

Connections

wire length in the control circuit1 500 m

minimum0.5 mm²

maximum1.5 mm²

minimum30

maximum14

minimum0.2 N·m

maximum0.25 N·m

Mechanical Design

height90 mm

width36 mm

depth70 mm

number of modular width units2

Net Weight229 g

Environmental conditions

minimum-40 °C

maximum70 °C

ambient temperature during storage minimum-40 °C
