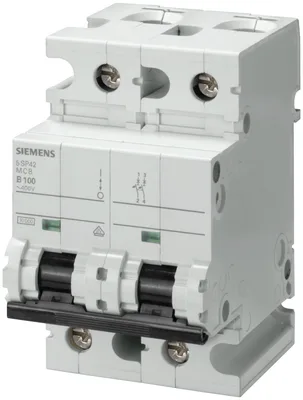

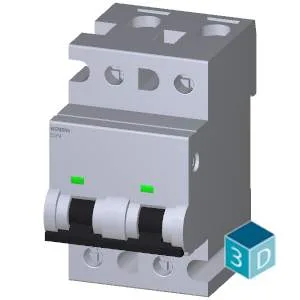

Siemens 5SP4292-7

Miniature circuit breaker 400 V 10kA, 2-pole, C, 125 A, D=70 mm

SiemensMFR # 5SP4292-7SKU # YLSREGRTGVCUZK

product brand nameSENTRON

product designationMiniature circuit breaker

number of poles2

design of pole2P

tripping characteristic classC

overvoltage category3

Have questions?Chat on WhatsApp

About This Product

Miniature circuit breaker 400 V 10kA, 2-pole, C, 125 A, D=70 mm

Siemens 5SP4292-7

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMiniature circuit breaker

General technical data

number of poles2

design of pole2P

tripping characteristic classC

mechanical service life (operating cycles) typical10 000

overvoltage category3

degree of pollution3

Voltage

type of voltage of the operating voltageAC

at AC rated value440 V

with multi-phase operation at AC rated value440 V

— at 30 °C rated value125 A

— at 40 °C rated value118.75 A

— at 50 °C rated value111.875 A

— at 60 °C rated value105 A

operational current at AC rated value125 A

Supply voltage

supply voltage at AC400 V

value range of the supply voltage frequency50/60 Hz

Protection class

protection class IPIP20 with connected conductors, IP40 in the area of the handle with distribution cover

Breaking Capacity

according to EN 60898 rated value10 kA

energy limitation class3

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole10.9 W

suitability for operationInfrastructure / Industry

Product details

product feature touch protectionYes

tunnel terminals topYes

tunnel terminals bottomYes

product feature properties for main switches in accordance with EN 60204-1Yes

product feature halogen-freeYes

product feature sealableYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

Connections

minimum25 mm²

maximum50 mm²

minimum25 mm²

maximum50 mm²

minimum25 mm²

maximum35 mm²

minimum3

maximum1

minimum22.1 lbf·in

maximum31 lbf·in

minimum2.5 N·m

maximum3.5 N·m

position of power supply cordAny

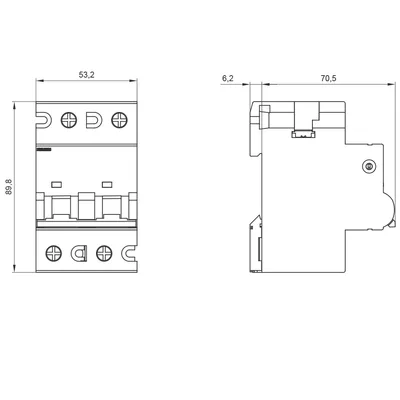

Mechanical Design

height90 mm

width54 mm

depth76 mm

installation depth70 mm

number of modular width units3

fastening methodDIN rail

mounting positionany

Net Weight524 g

Environmental conditions

influence of the surrounding temperatureMax. 95% rel. humidity

shock resistance according to IEC 60068-2-27150m/s² at 11ms half-sine

vibration resistance according to IEC 60068-2-650m/s² at 25 to 150Hz and 60m/s² at 35Hz (4sec)

minimum-40 °C

maximum75 °C
