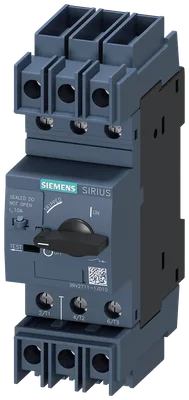

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3RV2711-1JD10

circuit breaker frame size S00 for system protection with approval circuit breaker UL 489, CSA C22.2 no. 5-02 thermal overload release 10 A short-circuit release 130 A screw terminal standard switching capacity

SiemensMFR # 3RV2711-1JD10SKU # CEY-8EF3B02DFBD9

product brand nameSIRIUS

product designationCircuit breaker

product type designation3RV2

size of the circuit-breakerS00

product extension auxiliary switchYes

at AC in hot operating state9.25 W

Have questions?Chat on WhatsApp

About This Product

Siemens 3RV2711-1JD10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCircuit breaker

design of the productFor system protection according to UL 489/CSA C22.2 No. 5

product type designation3RV2

General technical data

Product equipment of circuit breaker for motor protection complete unit with protection deviceYes

size of the circuit-breakerS00

product function disconnector functionalityYes

product extension auxiliary switchYes

at AC in hot operating state9.25 W

at AC in hot operating state per pole3.1 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

in networks with ungrounded star point between main and auxiliary circuit400 V

in networks with grounded star point between main and auxiliary circuit400 V

on the front according to IEC 60529IP20

on the frontIP20

of the terminalIP00

shock resistance according to IEC 60068-2-2725 g / 11 ms (rectangular impulse and sine pulse)

of the main contacts typical100 000

of auxiliary contacts typical100 000

electrical endurance (operating cycles) typical100 000

reference code according to IEC 81346-2Q

continuous current rated value10 A

Substance Prohibitance (day/month/year)10/01/2009

Net Weight469.08 g

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-20 ... +60 °C

during storage-50 ... +80 °C

during transport-50 ... +80 °C

temperature compensation-20 ... +60 °C

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

type of voltage for main current circuitAC

rated value690 V

rated value20 ... 690 V

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

operational current rated value10 A

at AC-3 at 400 V rated value10 A

at AC-3e at 400 V rated value10 A

— at 230 V rated value2.2 kW

— at 400 V rated value4 kW

— at 500 V rated value5.5 kW

— at 690 V rated value7.5 kW

— at 230 V rated value2.2 kW

— at 400 V rated value4 kW

— at 500 V rated value5.5 kW

— at 690 V rated value7.5 kW

at AC-3 maximum15 1/h

at AC-3e maximum15 1/h

Auxiliary circuit

type of voltage for auxiliary and control circuitAC/DC

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

Protective and monitoring functions

ground fault detectionNo

phase failure detectionNo

design of the overload releasethermal

protection function thermal overload protection (ANSI 49)Yes

at AC at 240 V rated value100 kA

at AC at 400 V rated value100 kA

at AC at 500 V rated value42 kA

at AC at 690 V rated value6 kA

at 480 AC Y/277 V according to UL 489 rated value65 kA

at 240 V rated value100 kA

at 400 V rated value100 kA

at 500 V rated value42 kA

at 690 V rated value4 kA

response value current of instantaneous short-circuit trip unit130 A

Short-circuit protection

product function short circuit protectionYes

design of the short-circuit tripmagnetic

at 400 VgG 50 A

at 500 VgG 40 A

at 690 VgG 40 A

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingYes

height144 mm

width45 mm

depth97 mm

— downwards30 mm

— upwards30 mm

— at the side30 mm

— downwards30 mm

— upwards30 mm

— at the side30 mm

— downwards30 mm

— upwards30 mm

— at the side30 mm

— downwards30 mm

— upwards30 mm

— at the side30 mm

— downwards70 mm

— upwards70 mm

— backwards0 mm

— at the side30 mm

— forwards0 mm

— downwards70 mm

— upwards70 mm

— backwards0 mm

— at the side30 mm

— forwards0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitNo

for main current circuitscrew-type terminals

arrangement of electrical connectors for main current circuitTop and bottom

— solid or stranded1 ... 10 mm², max. 2x 10 mm²

— finely stranded with core end processing1 ... 16 mm², max. 6 + 16 mm²

for AWG cables for main contacts2x (14 ... 10)

solid or stranded1 ... 10 mm²

finely stranded with core end processing1 ... 16 mm²

AWG number as coded connectable conductor cross section for main contacts14 ... 10

for main contacts with screw-type terminals2.5 ... 3 N·m

design of screwdriver shaftDiameter 5 to 6 mm

size of the screwdriver tipPozidriv size 2

for main contactsM4

Safety related data

product function suitable for safety functionYes

safety-related switching onNo

safety-related switching OFFYes

service life maximum10 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319205 000

failure rate [FIT] with low demand rate according to SN 3192050 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryYes

IEC 61508

safety device type according to IEC 61508-2Type A

for proof test interval or service life according to IEC 6150810 a

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Display

display version for switching statusHandle

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing1.98 kg

global warming potential [CO2 eq] / during sales0.134 kg

global warming potential [CO2 eq] / during operation72.7 kg

global warming potential [CO2 eq] / after end of life-0.116 kg

global warming potential [CO2 eq] / total74.698 kg

Accessories 78

Genuine accessories that can be used with the Siemens 3RV2711-1JD10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RV2901-1E	Aksesuar · Auxiliary switch · auxiliary switches
3RV2901-1D	Aksesuar · Auxiliary switch · auxiliary switches
3RV2901-1F	Aksesuar · Auxiliary switch · auxiliary switches
3RV2901-1G	Aksesuar · Auxiliary switch · auxiliary switches
3RV2901-0H	Aksesuar · Auxiliary switch · cover caps
3RV2901-1A	Aksesuar · Auxiliary switch · auxiliary switches
3RV2901-1B	Aksesuar · Auxiliary switch · auxiliary switches
3RV2901-1C	Aksesuar · Auxiliary switch · auxiliary switches
3RV2901-1J	Aksesuar · Auxiliary switch · auxiliary switches
3RV2922-1CB0	Aksesuar · Auxiliary release · undervoltage releases
3RV2922-1CV1	Aksesuar · Auxiliary release · undervoltage releases
3RV2922-1CV0	Aksesuar · Auxiliary release · undervoltage releases
3RV2922-1CP0	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AV0	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AV1	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AP0	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AM1	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AF0	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AB4	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AB0	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1AS0	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-1DV0	Aksesuar · Auxiliary release · shunt releases
3RV2902-1DP0	Aksesuar · Auxiliary release · shunt releases
3RV2902-1DS0	Aksesuar · Auxiliary release · shunt releases
3RV2902-1DB0	Aksesuar · Auxiliary release · shunt releases
3RV2902-1DF0	Aksesuar · Auxiliary release · shunt releases
3RV1915-1AB	Aksesuar · Infeed systems · busbars
3RV1915-1BB	Aksesuar · Infeed systems · busbars
3RV2925-5AB	Aksesuar · Plugs, adapters and terminals · infeed terminals
3RV2915-5B	Aksesuar · Plugs, adapters and terminals · infeed terminals
3RV2925-5EB	Aksesuar · Plugs, adapters and terminals · infeed terminals
3RV2926-3B	Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2926-3C	Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2926-1L	Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2926-1C	Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2926-1B	Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
3RV2926-1K	Aksesuar · Operating mechanisms · door-coupling rotary operating mechanisms
8US1251-5DS10	Aksesuar
8US1251-5DT11	Aksesuar
8US1251-5DS11	Aksesuar
3RV2928-0B	Aksesuar · Push-in lugs · push-in lugs
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RV1915-3CB	Aksesuar · Infeed systems · busbars
3RV1935-3B	Aksesuar · Infeed systems · busbars
3RV1935-3A	Aksesuar · Infeed systems · busbars
3RV1935-1C	Aksesuar · Infeed systems · busbars
3RV1922-1CV0	Aksesuar
3RV1935-1A	Aksesuar · Infeed systems · busbars
3RV1922-1CV1	Aksesuar
3RV1935-3C	Aksesuar · Infeed systems · busbars
3RV1922-1CP0	Aksesuar
3RV1935-1B	Aksesuar · Infeed systems · busbars
3RV1915-3AB	Aksesuar · Infeed systems · busbars
3RV1902-1AF0	Aksesuar
3RV1915-2CB	Aksesuar · Infeed systems · busbars
3RV1902-1AB0	Aksesuar
3RV1902-1AB4	Aksesuar
3RV1902-1AM1	Aksesuar
3RV1902-1AN0	Aksesuar
3RV1902-1AP0	Aksesuar
3RV1902-1AQ0	Aksesuar
3RV1902-1AS0	Aksesuar
3RV1902-1AV0	Aksesuar
3RV1902-1AV1	Aksesuar
3RV1915-2DB	Aksesuar · Infeed systems · busbars
3RV1902-1DB0	Aksesuar
3RV1902-1DP0	Aksesuar
3RV1902-1DS0	Aksesuar
3RV1902-1DV0	Aksesuar
3RV1912-1CP0	Aksesuar · Auxiliary release · undervoltage releases
3RV1912-1CV0	Aksesuar · Auxiliary release · undervoltage releases
3RV1912-1CV1	Aksesuar · Auxiliary release · undervoltage releases
3RV1915-1CB	Aksesuar · Infeed systems · busbars
3RV1915-1DB	Aksesuar · Infeed systems · busbars
3RV1915-2AB	Aksesuar · Infeed systems · busbars
3RV1915-2BB	Aksesuar · Infeed systems · busbars
3RV1902-1DF0	Aksesuar
