How can I get a price quote for Siemens 3RV2901-1B?

You can request a fast quote for Siemens 3RV2901-1B from Yılsa Engineering. Reference part number CEY-8EF3B0302FC0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV2901-1B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV2901-1B genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV2901-1B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

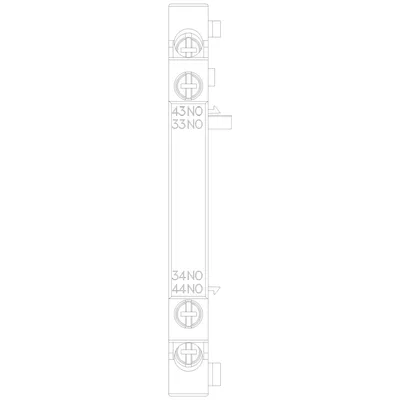

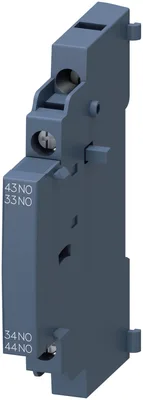

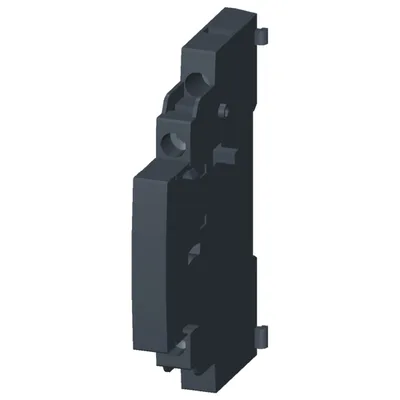

Siemens 3RV2901-1B

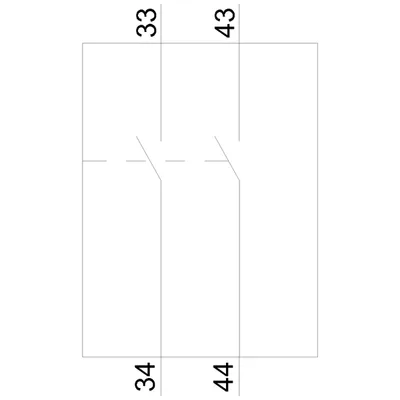

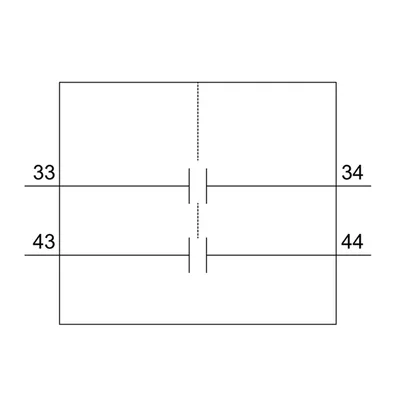

Auxiliary switch can be mounted on the side 2 NO, screw terminal for circuit breaker 3RV2

SiemensMFR # 3RV2901-1BSKU # CEY-8EF3B0302FC0

product brand nameSIRIUS

product categoryAuxiliary switch

product designationauxiliary switch

design of the productlateral auxiliary switches

product type designation3RV29

certificate of suitabilityCE / UL / CSA / CCC

Have questions?Chat on WhatsApp

About This Product

Auxiliary switch can be mounted on the side 2 NO, screw terminal for circuit breaker 3RV2

Siemens 3RV2901-1B

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryAuxiliary switch

product designationauxiliary switch

design of the productlateral auxiliary switches

product type designation3RV29

General technical data

certificate of suitabilityCE / UL / CSA / CCC

size of the circuit-breakerS00, S0, S2, S3

display version LEDNo

insulation voltage rated value690 V

degree of pollution3

surge voltage resistance rated value6 kV

according to IEC 60529IP20

IP20

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2009

Net Weight43.79 g

number of NC contacts for auxiliary contacts instantaneous contact0

number of NO contacts for auxiliary contacts instantaneous contact2

number of CO contacts of auxiliary contacts instantaneous contact0

operational current at AC-15 at 690 V rated value1 A

at 24 V10 A

at 230 V10 A

at 400 V10 A

at 690 V10 A

operational current of auxiliary contacts at AC-12 maximum10 A

at 24 V6 A

at 230 V4 A

at 400 V3 A

at 24 V2 A

at 110 V0.5 A

at 220 V0.25 A

at 250 V0.25 A

Ambient conditions

during operation-20 ... +60 °C

during storage-50 ... +80 °C

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

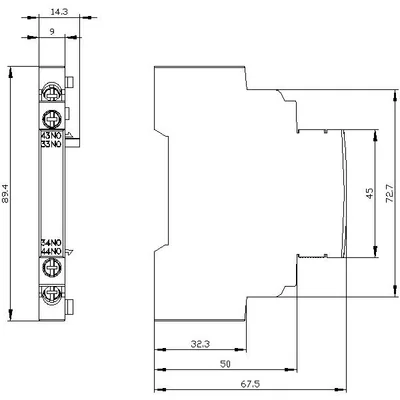

Installation/ mounting/ dimensions

fastening methodplug-in fixing

height90 mm

width9.5 mm

depth70 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitscrew-type terminals

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 14)

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 14

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.238 kg

global warming potential [CO2 eq] / during operation4.2 kg

global warming potential [CO2 eq] / after end of life0.0053 kg

global warming potential [CO2 eq] / total4.44 kg
