How can I get a price quote for Siemens 3RV1935-3B?

You can request a fast quote for Siemens 3RV1935-3B from Yılsa Engineering. Reference part number CEY-8EF3B039301E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV1935-3B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV1935-3B genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV1935-3B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

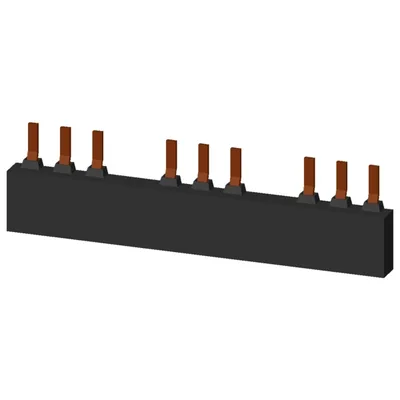

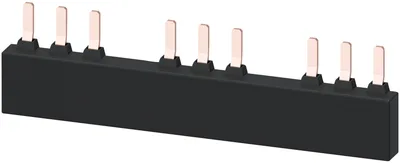

Siemens 3RV1935-3B

3-phase busbar for 3 circuit breakers size S2 modular spacing 75 mm

SiemensMFR # 3RV1935-3BSKU # CEY-8EF3B039301E

product brand nameSIRIUS

product categoryInfeed systems

product designation3-phase busbar

product type designation3RV19

suitability for usecircuit-breakers 3RV2

size of the circuit-breakerS2

Have questions?Chat on WhatsApp

About This Product

3-phase busbar for 3 circuit breakers size S2 modular spacing 75 mm

Siemens 3RV1935-3B

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryInfeed systems

product designation3-phase busbar

product type designation3RV19

suitability for usecircuit-breakers 3RV2

General technical data

size of the circuit-breakerS2

protection class IP on the front according to IEC 60529IP20

thermal current108 A

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.245 kg

number of poles for main current circuit3

operating voltage at AC rated value690 V

operational current rated value108 A

UL/CSA ratings

operating voltage at AC according to UL rated value600 V

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Connections/ Terminals

type of electrical connection for main current circuitscrew-type terminals

Accessories 1

Genuine accessories that can be used with the Siemens 3RV1935-3B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
