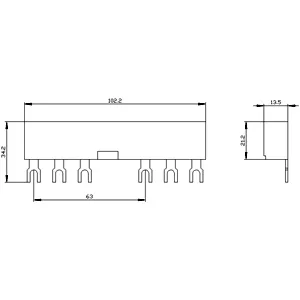

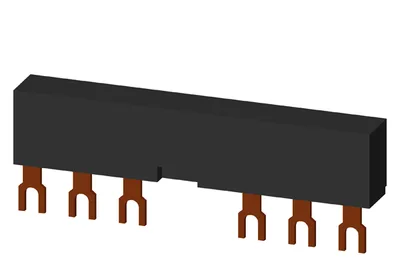

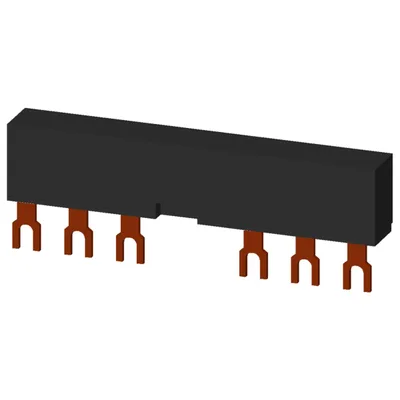

Siemens 3RV1915-3AB

3-phase busbars modular spacing 63 mm for 2 breakers + accessories fork shape connections

SiemensMFR # 3RV1915-3ABSKU # CEY-8EF3B03170E1

product brand nameSIRIUS

product categoryInfeed systems

product designation3-phase busbar

product type designation3RV19

suitability for usecircuit-breakers 3RV2

size of the circuit-breakerS00, S0

Have questions?Chat on WhatsApp

About This Product

3-phase busbars modular spacing 63 mm for 2 breakers + accessories fork shape connections

Siemens 3RV1915-3AB

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryInfeed systems

product designation3-phase busbar

product type designation3RV19

suitability for usecircuit-breakers 3RV2

General technical data

size of the circuit-breakerS00, S0

protection class IP on the front according to IEC 60529IP20

Substance Prohibitance (day/month/year)07/01/2006

Net Weight45.933 g

number of poles for main current circuit3

operational current rated value63 A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Connections/ Terminals

type of electrical connection for main current circuitscrew-type terminals

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.405 kg

global warming potential [CO2 eq] / during operation18.7 kg

global warming potential [CO2 eq] / after end of life-0.0764 kg

global warming potential [CO2 eq] / total19.1 kg

Accessories 2

Genuine accessories that can be used with the Siemens 3RV1915-3AB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
