How can I get a price quote for Siemens 3RV1915-2BB?

You can request a fast quote for Siemens 3RV1915-2BB from Yılsa Engineering. Reference part number CEY-8EF3B032F2A0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV1915-2BB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV1915-2BB genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV1915-2BB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

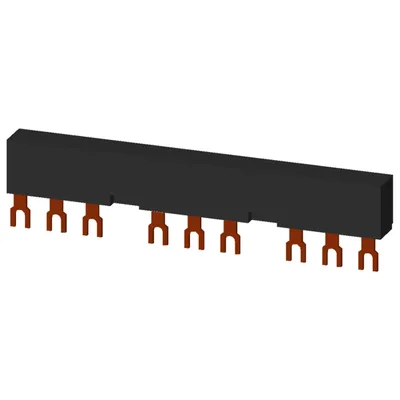

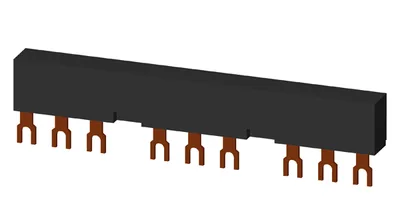

Siemens 3RV1915-2BB

3-phase busbars modular spacing 55 mm for 3 breakers + accessories fork shape connections

SiemensMFR # 3RV1915-2BBSKU # CEY-8EF3B032F2A0

product brand nameSIRIUS

product categoryInfeed systems

product designation3-phase busbar

product type designation3RV19

suitability for usecircuit-breakers 3RV2

size of the circuit-breakerS00, S0

Have questions?Chat on WhatsApp

About This Product

3-phase busbars modular spacing 55 mm for 3 breakers + accessories fork shape connections

Siemens 3RV1915-2BB

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryInfeed systems

product designation3-phase busbar

product type designation3RV19

suitability for usecircuit-breakers 3RV2

General technical data

size of the circuit-breakerS00, S0

protection class IP on the front according to IEC 60529IP20

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.077 kg

number of poles for main current circuit3

operational current rated value63 A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Connections/ Terminals

type of electrical connection for main current circuitscrew-type terminals

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.405 kg

global warming potential [CO2 eq] / during operation18.7 kg

global warming potential [CO2 eq] / after end of life-0.0764 kg

global warming potential [CO2 eq] / total19.1 kg

Accessories 2

Genuine accessories that can be used with the Siemens 3RV1915-2BB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
