How can I get a price quote for Siemens 3RV1011-1CA10?

You can request a fast quote for Siemens 3RV1011-1CA10 from Yılsa Engineering. Reference part number CEY-937FC77C8D10. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RV1011-1CA10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RV1011-1CA10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RV1011-1CA10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

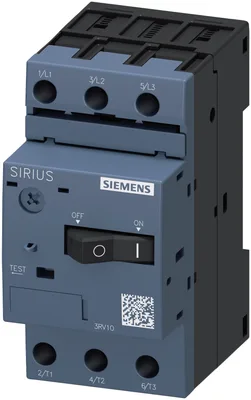

Siemens 3RV1011-1CA10

Circuit breaker size S00 for motor protection, CLASS 10 A-release 1.8...2.5 A N-release 33 A Screw terminal Standard switching capacity

SiemensMFR # 3RV1011-1CA10SKU # CEY-937FC77C8D10

product brand nameSIRIUS

product designationCircuit breaker

design of the productFor motor protection

product type designation3RV1

size of the circuit-breakerS00

product extension auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

Circuit breaker size S00 for motor protection, CLASS 10 A-release 1.8...2.5 A N-release 33 A Screw terminal Standard switching capacity

Siemens 3RV1011-1CA10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCircuit breaker

design of the productFor motor protection

product type designation3RV1

General technical data

Product equipment of circuit breaker for motor protection complete unit with protection deviceYes

size of the circuit-breakerS00

size of contactor can be combined company-specificS00

product function disconnector functionalityYes

product extension auxiliary switchYes

at AC in hot operating state7.25 W

at AC in hot operating state per pole2.4 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

in networks with ungrounded star point between main and auxiliary circuit400 V

in networks with grounded star point between main and auxiliary circuit400 V

on the front according to IEC 60529IP20

on the frontIP20

of the terminalIP00

of the main contacts typical100 000

of auxiliary contacts typical100 000

electrical endurance (operating cycles) typical100 000

reference code according to IEC 81346-2Q

continuous current rated value2.5 A

Substance Prohibitance (day/month/year)01/01/2013

Net Weight249.6 g

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-20 ... +60 °C

during storage-50 ... +80 °C

during transport-50 ... +80 °C

temperature compensation-20 ... +60 °C

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release1.8 ... 2.5 A

type of voltage for main current circuitAC

rated value690 V

rated value20 ... 690 V

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

operational current rated value2.5 A

at AC-3 at 400 V rated value2.5 A

at AC-3e at 400 V rated value2.5 A

— at 230 V rated value0.37 kW

— at 400 V rated value0.75 kW

— at 500 V rated value1.1 kW

— at 690 V rated value1.5 kW

— at 230 V rated value0.37 kW

— at 400 V rated value0.75 kW

— at 500 V rated value1.1 kW

— at 690 V rated value1.5 kW

at AC-3 maximum15 1/h

at AC-3e maximum15 1/h

Auxiliary circuit

type of voltage for auxiliary and control circuitAC/DC

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

Protective and monitoring functions

ground fault detectionNo

phase failure detectionYes

trip classCLASS 10

design of the overload releasethermal

protection function thermal overload protection (ANSI 49)Yes

at AC at 240 V rated value100 kA

at AC at 400 V rated value100 kA

at AC at 500 V rated value10 kA

at AC at 690 V rated value2 kA

at 240 V rated value100 kA

at 400 V rated value100 kA

at 500 V rated value100 kA

at 690 V rated value2 kA

response value current of instantaneous short-circuit trip unit33 A

UL/CSA ratings

at 480 V rated value2.5 A

at 600 V rated value2.5 A

— at 230 V rated value0.17 hp

— at 200/208 V rated value0.5 hp

— at 220/230 V rated value0.5 hp

— at 460/480 V rated value1 hp

— at 575/600 V rated value1.5 hp

Short-circuit protection

product function short circuit protectionYes

design of the short-circuit tripmagnetic

at 240 Vnone required

at 400 VgG 35 A

at 500 VgG 25 A

at 690 VgG 25 A

certificate of suitability according to ATEX directive 2014/34/EUDMT 02 ATEX F 001

type of protection according to ATEX directive 2014/34/EUEx II (2) GD

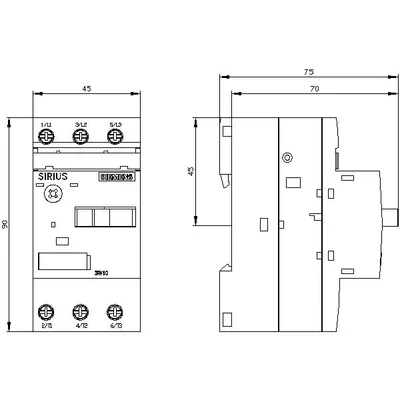

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingYes

height90 mm

width45 mm

depth75 mm

— downwards20 mm

— upwards20 mm

— at the side9 mm

— downwards20 mm

— upwards20 mm

— at the side9 mm

— downwards20 mm

— upwards20 mm

— at the side9 mm

— downwards20 mm

— upwards20 mm

— at the side9 mm

— downwards20 mm

— upwards20 mm

— backwards0 mm

— at the side9 mm

— forwards0 mm

— downwards20 mm

— upwards20 mm

— backwards0 mm

— at the side9 mm

— forwards0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitNo

for main current circuitscrew-type terminals

arrangement of electrical connectors for main current circuitTop and bottom

— solid or stranded2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x (1 ... 4 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

solid or stranded0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

AWG number as coded connectable conductor cross section for main contacts18 ... 14

for main contacts with screw-type terminals0.8 ... 1.2 N·m

for auxiliary contacts with screw-type terminals0.8 ... 1.2 N·m

design of screwdriver shaftDiameter 5 to 6 mm

size of the screwdriver tipPozidriv size 2

for main contactsM3

Safety related data

product function suitable for safety functionYes

safety-related switching onNo

safety-related switching OFFYes

service life maximum10 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319205 000

failure rate [FIT] with low demand rate according to SN 3192050 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryYes

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Display

display version for switching statusRocker switch
